TRX40D8-2N2T
30 31
English

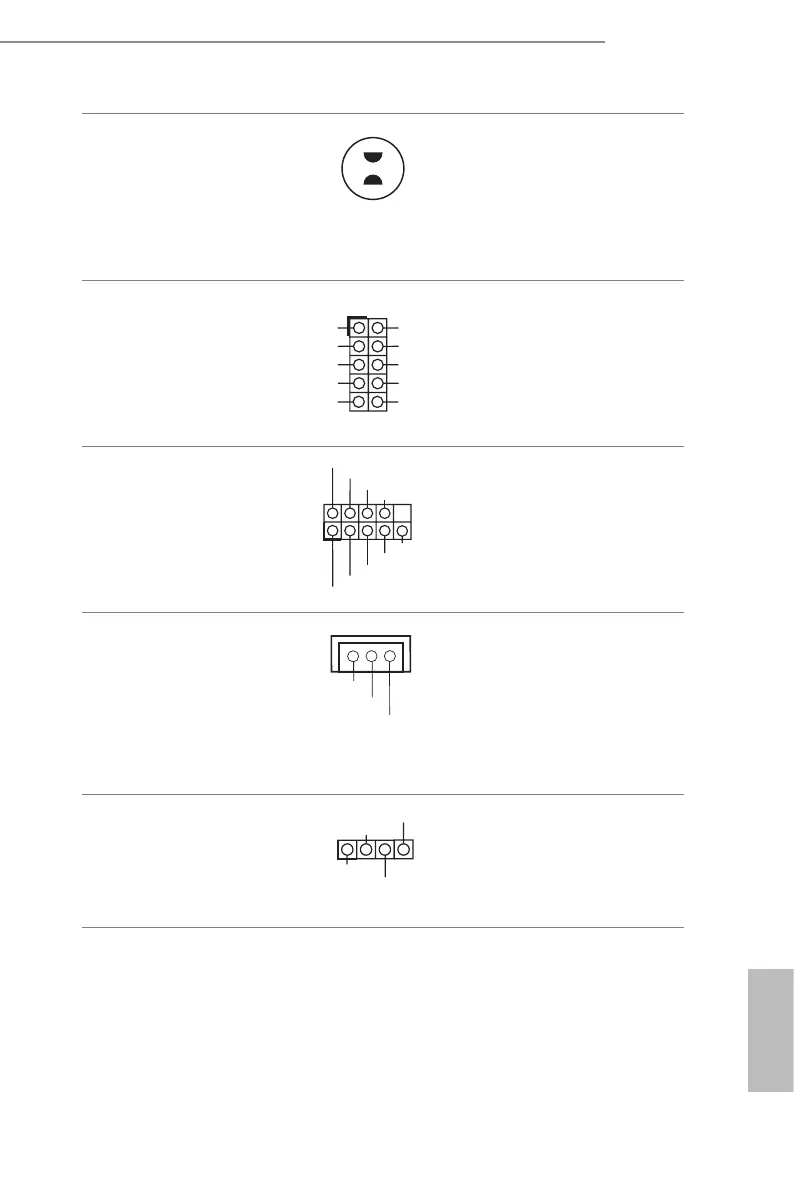

Clear CMOS Pad
(CLRMOS1)
(see p.7, No. 29)
is allows you to clear the
data in CMOS. To clear CMOS,
take out the CMOS battery and
short the Clear CMOS Pad.
Front VGA Header
(10-pin FRN_VGA1)
(see p.7, No. 39)
1
GREEN
RED
GND
BLUE
VSYNC
DDCCLK_C
GND
HSYNC
DDCDAT_C
GND
Please connect either end
of VGA_2X5 cable to VGA
header.
Serial Port Header
(9-pin COM1)
(see p.7, No. 24)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM header supports a
serial port module.
SATA DOM Power
Connectors
(3-pin SATAPWR1)
(see p.7, No. 28)
(3-pin SATAPWR2)
(see p.7, No. 19)
GND
N/A
+5V
Please connect the power
cables on the SATA DOM to
these connectors.
Front LAN LED
Connector
(LED_LAN3_4)
(see p.7, No. 35)
1
LAN3_LINK
LED_PWR
LED_PWR
LAN4_LINK
is 4-pin connector is used
for the front LAN status
indicator.
To Next Page
