1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout

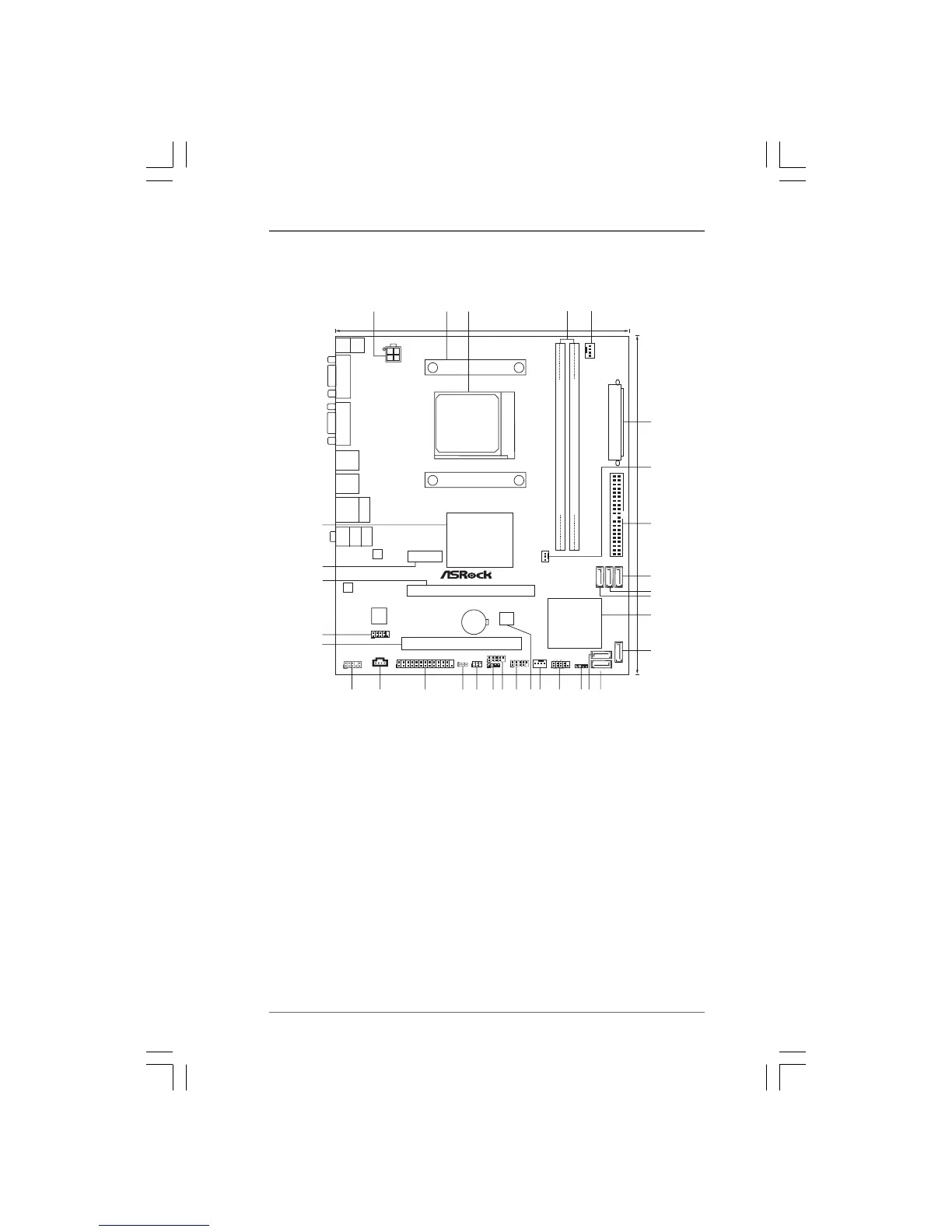

1 ATX 12V Power Connector (ATX12V1) 17 System Panel Header (PANEL1, White)
2 CPU Heatsink Retention Module 18 Chassis Fan Connector (CHA_FAN1)
3 AM3+ CPU Socket 19 SPI Flash Memory (8Mb)
4 2 x 240-pin DDR3 DIMM Slots 20 USB 2.0 Header (USB8_9, Blue)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 21 USB 2.0 Header (USB6_7, Blue)
5 CPU Fan Connector (CPU_FAN1) 22 Consumer Infrared Module Header (CIR1)
6 ATX Power Connector (ATXPWR1) 23 Infrared Module Header (IR1)
7 Power Fan Connector (PWR_FAN1) 24 Clear CMOS Jumper (CLRCMOS1)
8 Primary IDE Connector (IDE1, Blue) 25 Print Port Header (LPT1, White)
9 SATA2 Connector (SATAII_4 (PORT 3), Blue) 26 Internal Audio Connector: CD1 (Black)
10 SATA3 Connector (SATA3_2, White) 27 Front Panel Audio Header
11 SATA3 Connector (SATA3_1, White) (HD_AUDIO1, White)
12 Southbridge Controller 28 PCI Slot (PCI1)
13 SATA2 Connector (SATAII_3 (PORT 2), Blue) 29 Serial Port Connector (COM1)
14 SATA2 Connector (SATAII_2 (PORT 1), Blue) 30 PCI Express 2.0 x16 Slot (PCIE2; Blue)
15 SATA2 Connector (SATAII_1 (PORT 0), Blue) 31 PCI Express 2.0 x1 Slot (PCIE1; Blue)
16 Chassis Speaker Header (SPEAKER 1, White)32 Northbridge Controller
Super
I/O
ATXPWR1
AMD
760G
Chipset
PCIE1
PCI1
LAN
AUDIO
CODEC
1
CLRCMOS1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
IDE1
HD_AUDIO1
1
24.4cm (9.6-in)
19.8cm (7.8-in)
5
6
1
2
3
4
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
8Mb
BIOS
AMD
SB710
Chipset
SATA3_1 SATA3_2 SATAII_4
(PORT 3)
USB8_9
1
PCIE2
DDR3 1866
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 2.0
T: U SB 2
B: USB3
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DVI_CON1
VGA1
ATX12V1
1
LPT1
960GM/U3S3 FX
8
PWR_FAN1
28
USB 3.0
T: U SB 4
B: USB5
SOCKET AM3b
SATAII_3
(PORT 2)
SATAII_1(PORT 0)
SATAII_2(PORT 1)
USB6_7
1
CIR1
1
IR1
1
CD1
COM1
1
CMOS
BATTERY
Design in Taipei
ErP/EuP Ready Support 8-Core CPU AM3+
X
Fast USB
X
Fast LAN
SATA3 6Gb/s
RoHS
USB 3.0
29
30
31
32

ASROCK 960GM/U3S3 FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	Parallel ATA, SATA II, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
Certification	FCC, CE, WHQL\\r ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Graphics card	Radeon HD 3000
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Trial software	AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial
Cables included	SATA

Weight and Dimensions

Depth	198 mm
Width	244 mm
