ASRock Smart Remote Installation GuideASRock Smart Remote Installation Guide
ASRock Smart Remote Installation GuideASRock Smart Remote Installation Guide

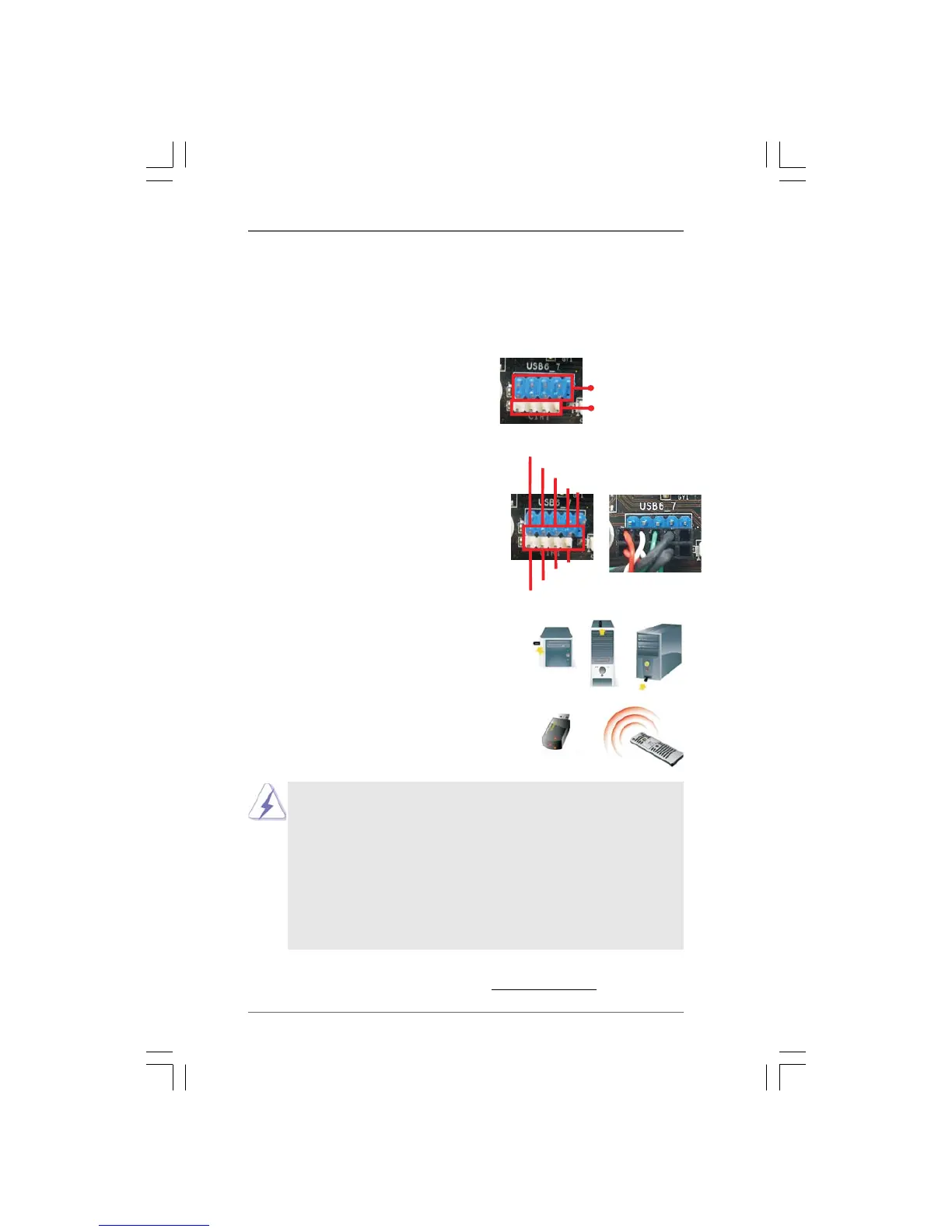

ASRock Smart Remote Installation Guide
ASRock Smart Remote is only used for ASRock motherboard with CIR header. Please
refer to below procedures for the quick installation and usage of ASRock Smart Remote.
Step1. Find the CIR header located next to
the USB 2.0 header on ASRock
motherboard.
Step2. Connect the front USB cable to the
USB 2.0 header (as below, pin 1-5)
and the CIR header. Please
make sure the wire assignments and
the pin assignments are matched
correctly.
Step3. Install Multi-Angle CIR Receiver to
the front USB port. If Multi-Angle CIR
Receiver cannot successfully receive
the infrared signals from MCE
Remote Controller, please try to
install it to the other front USB port.
1
2
4
3
5
USB 2.0 header (9-pin, blue)
CIR header (4-pin, white)
3 CIR sensors in different angles
1. Only one of the front USB port can support CIR function. When
the CIR function is enabled, the other port will remain USB
function.
2. Multi-Angle CIR Receiver is used for front USB only. Please do
not use the rear USB bracket to connect it on the rear panel.
Multi-Angle CIR Receiver can receive the multi-direction
infrared signals (top, down and front), which is compatible
with most of the chassis on the market.
3. The Multi-Angle CIR Receiver does not support Hot-Plug
function. Please install it before you boot the system.
* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to
ASRock website for the motherboard support list:
http://www.asrock.com
USB_PWR
P-
P+
GND
DUMMY
ATX+5VSB
IRRX
IRTX
GND

ASROCK 960GM/U3S3 FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	Parallel ATA, SATA II, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
Certification	FCC, CE, WHQL\\r ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Graphics card	Radeon HD 3000
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Trial software	AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial
Cables included	SATA

Weight and Dimensions

Depth	198 mm
Width	244 mm
