ASROCK 960GM/U3S3 FX User Manual

3030
3030
30
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII / SATA3 Hot
Plug cannot be processed.
2. Even some SATA / SATAII / SATA3 HDDs provide both SATA 15-pin power
connector and IDE 1x4-pin conventional power connector interfaces, the IDE
1x4-pin conventional power connector interface is definitely not able to support
Hot Plug and will cause the HDD damage and data loss.
SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply
A. SATA data cable (Red) B. SATA power cable
2.14 SA2.14 SA
2.14 SA2.14 SA
2.14 SA
TT
TT
T
A / SAA / SA
A / SAA / SA
A / SA
TT
TT
T
AII / SAAII / SA
AII / SAAII / SA
AII / SA
TT
TT
T
A3 HDD Hot Plug FA3 HDD Hot Plug F
A3 HDD Hot Plug FA3 HDD Hot Plug F
A3 HDD Hot Plug F
eature andeature and
eature andeature and
eature and
Operation Guide Operation Guide
Operation Guide Operation Guide
Operation Guide

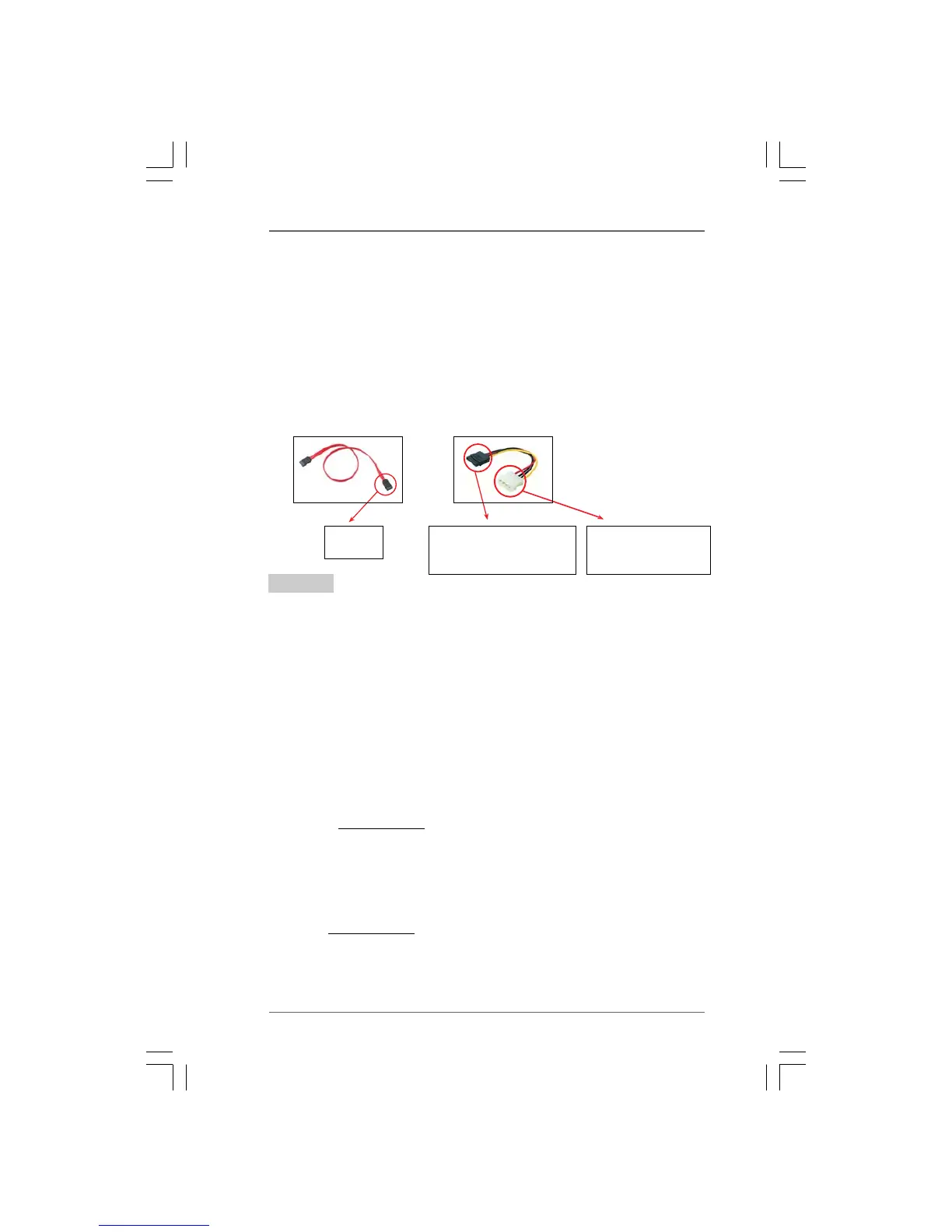

This motherboard supports Hot Plug feature for SATA / SATAII / SATA3 HDD in RAID /
AHCI mode. Please read below operation guide of Hot Plug feature carefully. Before you
process the SATA / SATAII / SATA3 HDD Hot Plug, please check below cable accessories
from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII / SATA3 HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATAII / SATA3 HDD Hot Plug.
* The SATA / SATAII / SATA3 Hot Plug feature might not be supported by the
chipset because of its limitation, the SATA / SATAII / SATA3 Hot Plug support
information of our motherboard is indicated in the product spec on our
website: www.asrock.com
2. Make sure your SATA / SATAII / SATA3 HDD can support Hot Plug function from
your dealer or HDD user manual. The SATA / SATAII / SATA3 HDD, which cannot
support Hot Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII / SATA3 driver is installed into system
properly. The latest SATA / SATAII / SATA3 driver is available on our support
website: www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.

ASROCK 960GM/U3S3 FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	Parallel ATA, SATA II, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
Certification	FCC, CE, WHQL\\r ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Graphics card	Radeon HD 3000
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Trial software	AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial
Cables included	SATA

Weight and Dimensions

Depth	198 mm
Width	244 mm
