ASROCK A75 Pro4-M - 1.3 Motherboard Layout

12

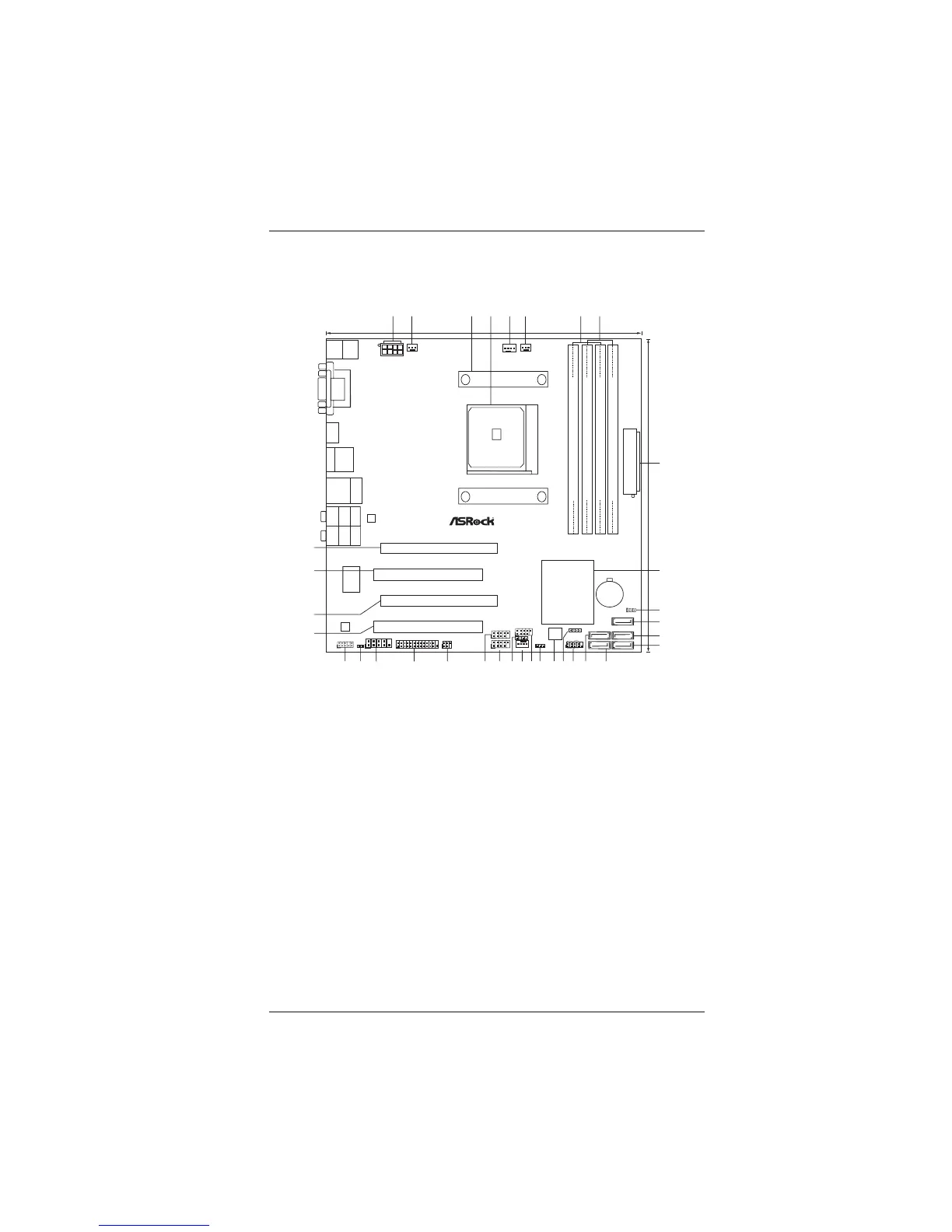

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 17 System Panel Header (PANEL1, White)
2 Power Fan Connector (PWR_FAN1) 18 Chassis Speaker Header (SPEAKER 1, White)
3 CPU Heatsink Retention Module 19 SPI Flash Memory (32Mb)
4 CPU Socket 20 Power LED Header (PLED1)
5 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB6_7, Blue)
6 CPU Fan Connector (CPU_FAN2) 22 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR3 DIMM Slots 23 Consumer Infrared Module Header (CIR1)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 24 USB 2.0 Header (USB8_9, Blue)
8 2 x 240-pin DDR3 DIMM Slots 25 USB 2.0 Header (USB10_11, Blue)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 26 Infrared Module Header (IR1)
9 ATX Power Connector (ATXPWR1) 27 Print Port Header (LPT1, White)
10 Southbridge Controller 28 COM Port Header (COM1)
11 Clear CMOS Jumper (CLRCMOS1) 29 HDMI_SPDIF Header (HDMI_SPDIF1, White)
12 SATA3 Connector (SATA3_5, White) 30 Front Panel Audio Header (HD_AUDIO1, White)
13 SATA3 Connector (SATA3_4, White) 31 PCI Slot (PCI2)
14 SATA3 Connector (SATA3_3, White) 32 PCI Express 2.0 x16 Slot (PCIE2; Blue)
15 SATA3 Connector (SATA3_1, White) 33 PCI Slot (PCI1)
16 SATA3 Connector (SATA3_2, White) 34 PCI Express 2.0 x16 Slot (PCIE1; Blue)
SOCKET FM1
A75 Pro4-M
AMD
A75 FCH
(Hudson-D3)
Chipset
CMOS
BATTERY
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3 2400+
32Mb
BIOS
24.4cm (9.6-in)
24.4cm (9.6-in)
Super
I/O
ATX12V1
PWR_FAN1
CPU_FAN1
CPU_FAN2
LAN
AUDIO
CODEC
1
CLRCMOS1
SATA3 6Gb/s
SATA3_1
SATA3_2
SATA3_3
SATA3_4
SATA3_5
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
IR1
1
PLED1
1
COM1
1
CIR1
1
1
USB8_9
1
USB10_11
1
USB6_7
HD_AUDIO1
1
1
HDMI_SPDIF1
1
LPT1
PCIE1
PCIE2
PCI1
PCI2
HDMI 1.4a
USB 3.0
DX11
ErP/EuP Ready
RoHS
USB 3.0
T:USB4
B: USB5
Ps2
Keyboard/
Mouse
HDMI1
VGA1
DVI_CON1
USB 2.0
T: USB2
B: USB3
eSATA1
Top:
RJ-45
USB 3.0
T: U SB 0
B: USB1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Dual Graphics
Gigabit LAN
Designed in Taipei
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
1819
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
X Fast USB
