ASROCK A75 Pro4-M User Manual

13

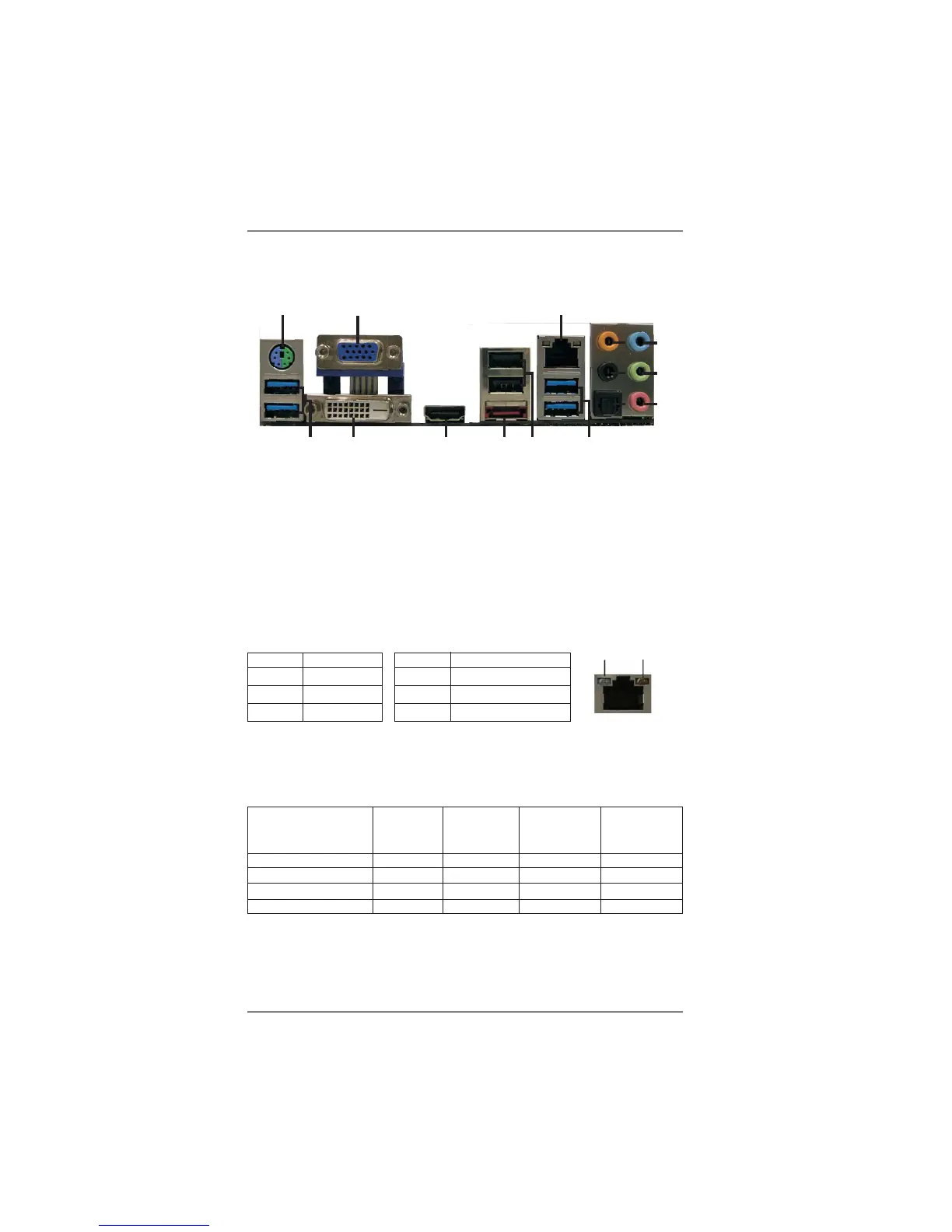

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Mouse/Keyboard Port (Green/Purple) 9 Microphone (Pink)
2 D-Sub Port 10 USB 3.0 Ports (USB01)
* 3 LAN RJ-45 Port *** 11 USB 2.0 Ports (USB23)
4 Central / Bass (Orange) **** 12 eSATA3 Connector
5 Rear Speaker (Black) 13 HDMI Port
6 Optical SPDIF Out Port 14 DVI-D Port
7 Line In (Light Blue) 15 USB 3.0 Ports (USB45)
** 8 Front Speaker (Lime)
LAN Port
ACT/LINK
LED
SPEED
LED
**
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or
(No. 8) (No. 5) (No. 4) Side Speaker
(No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
1
2
3
4
5
6
7
8
9
10
12
13
14
15
11

ASROCK A75 Pro4-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A75
Socket	FM1
Max Memory	64GB
PCIe Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
PCI Slots	2
SATA Ports	6 x SATA3 6.0 Gb/s
Video Outputs	D-Sub, DVI-D, HDMI
Audio	Realtek ALC892 7.1-Channel High Definition Audio Codec
LAN	Realtek RTL8111E Gigabit LAN
Memory Slots	4 x DIMM
Memory Support	DDR3 2400(OC)/1866/1600/1333/1066
eSATA Port	1 x eSATA3
USB Ports	10 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 10
