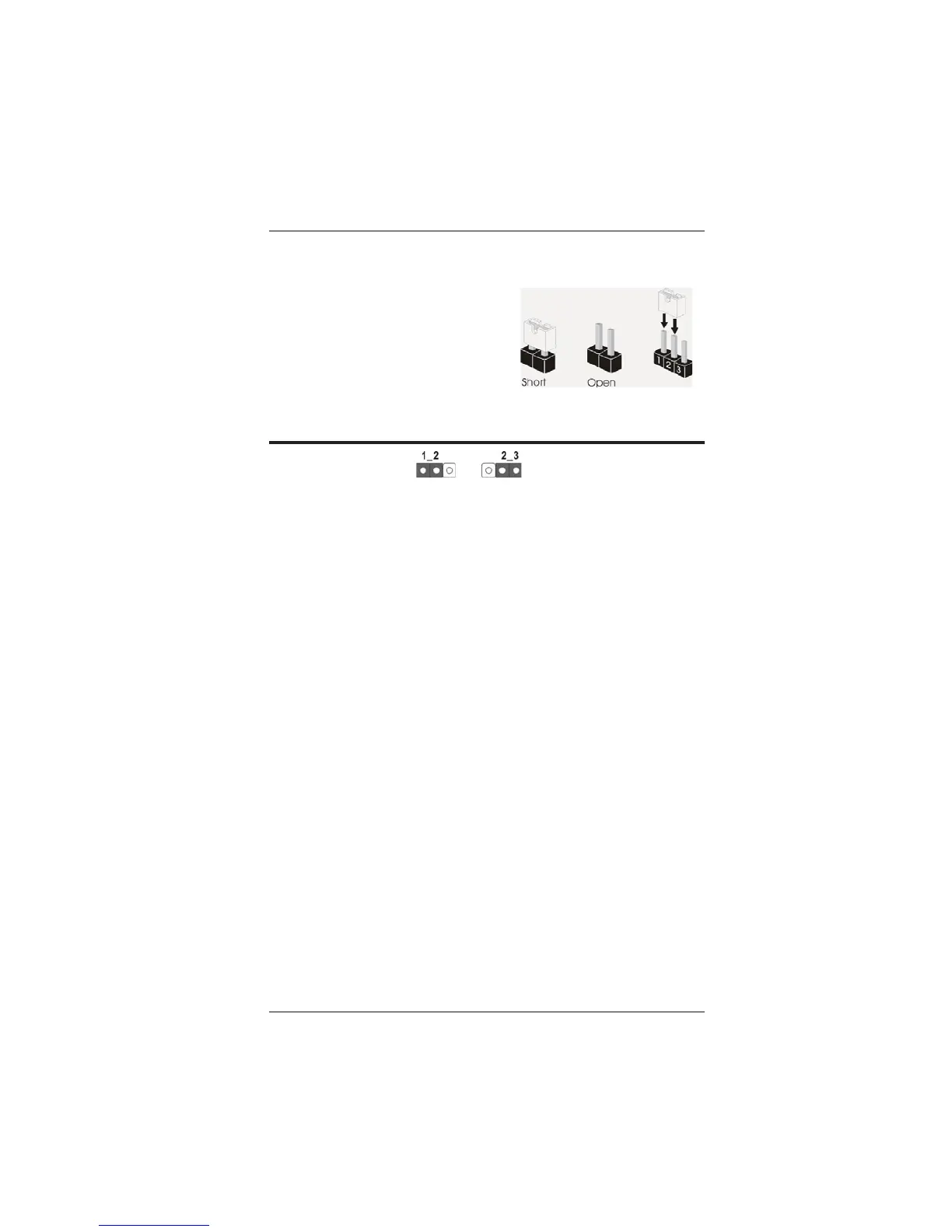

2.9 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.12, No. 11)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot
up the system rst, and then shut it down before you do the clear-CMOS ac-
tion. Please be noted that the password, date, time, user default pro le, 1394
GUID and MAC address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault

ASROCK A75 Pro4-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A75
Socket	FM1
Max Memory	64GB
PCIe Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
PCI Slots	2
SATA Ports	6 x SATA3 6.0 Gb/s
Video Outputs	D-Sub, DVI-D, HDMI
Audio	Realtek ALC892 7.1-Channel High Definition Audio Codec
LAN	Realtek RTL8111E Gigabit LAN
Memory Slots	4 x DIMM
Memory Support	DDR3 2400(OC)/1866/1600/1333/1066
eSATA Port	1 x eSATA3
USB Ports	10 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 10
