ASROCK A75 Pro4-M User Manual

35

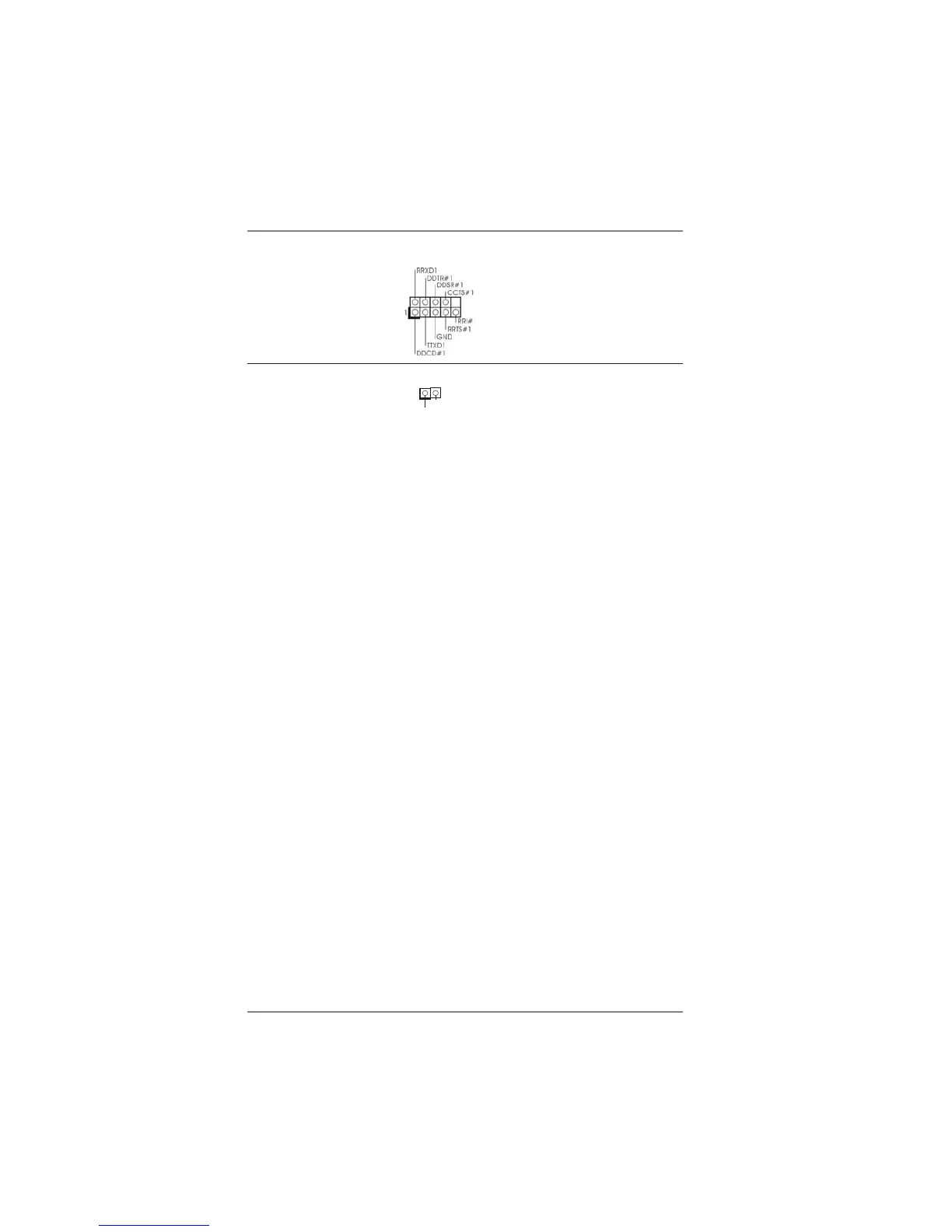

Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.12 No.28)
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1)
SPDIF audio output to HDMI
(
see p.12 No. 29)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SPDIFOUT
GND
1

ASROCK A75 Pro4-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A75
Socket	FM1
Max Memory	64GB
PCIe Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
PCI Slots	2
SATA Ports	6 x SATA3 6.0 Gb/s
Video Outputs	D-Sub, DVI-D, HDMI
Audio	Realtek ALC892 7.1-Channel High Definition Audio Codec
LAN	Realtek RTL8111E Gigabit LAN
Memory Slots	4 x DIMM
Memory Support	DDR3 2400(OC)/1866/1600/1333/1066
eSATA Port	1 x eSATA3
USB Ports	10 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 10
