ASROCK A75 Pro4-M User Manual

38

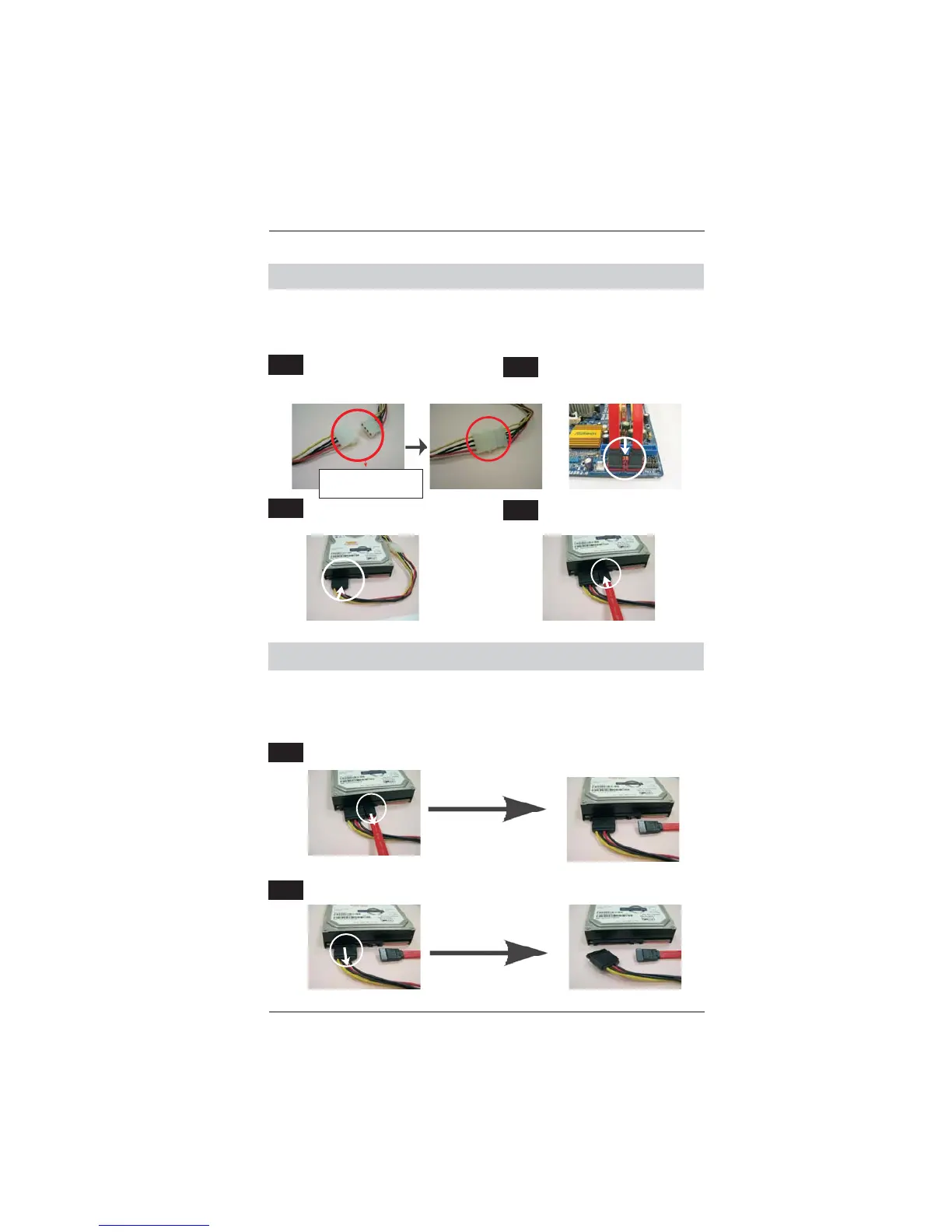

How to Hot Plug a SATA3 HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA3 HDD damage and data loss.
Connect SATA 15-pin power cable
connector (Black) end to SATA3 HDD.
How to Hot Unplug a SATA3 HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA3 HDD damage and data loss.
Please connect SATA power cable 1x4-pin
end (White) to the power supply 1x4-pin
cable.
Step 1
Step 2
Step 4
Step 2
SATA power cable 1x4-pin
power connector (White)
Unplug SATA data cable from SATA3 HDD side.
Unplug SATA 15-pin power cable connector (Black) from SATA3 HDD side.
Step 1
Connect SATA data cable to the
SATA3 HDD.
Step 3
Connect SATA data cable to
the motherboard’s SATAII / SATA3
connector.

ASROCK A75 Pro4-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD A75
Socket	FM1
Max Memory	64GB
PCIe Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
PCI Slots	2
SATA Ports	6 x SATA3 6.0 Gb/s
Video Outputs	D-Sub, DVI-D, HDMI
Audio	Realtek ALC892 7.1-Channel High Definition Audio Codec
LAN	Realtek RTL8111E Gigabit LAN
Memory Slots	4 x DIMM
Memory Support	DDR3 2400(OC)/1866/1600/1333/1066
eSATA Port	1 x eSATA3
USB Ports	10 x USB 2.0
RAID Support	RAID 0, RAID 1, RAID 10
