ASROCK EPC602D8A - I;O Panel

EPC602D8A / EPC602D8A-V+
11
English
2
6
4
3 5
1
7
8
10
9
11

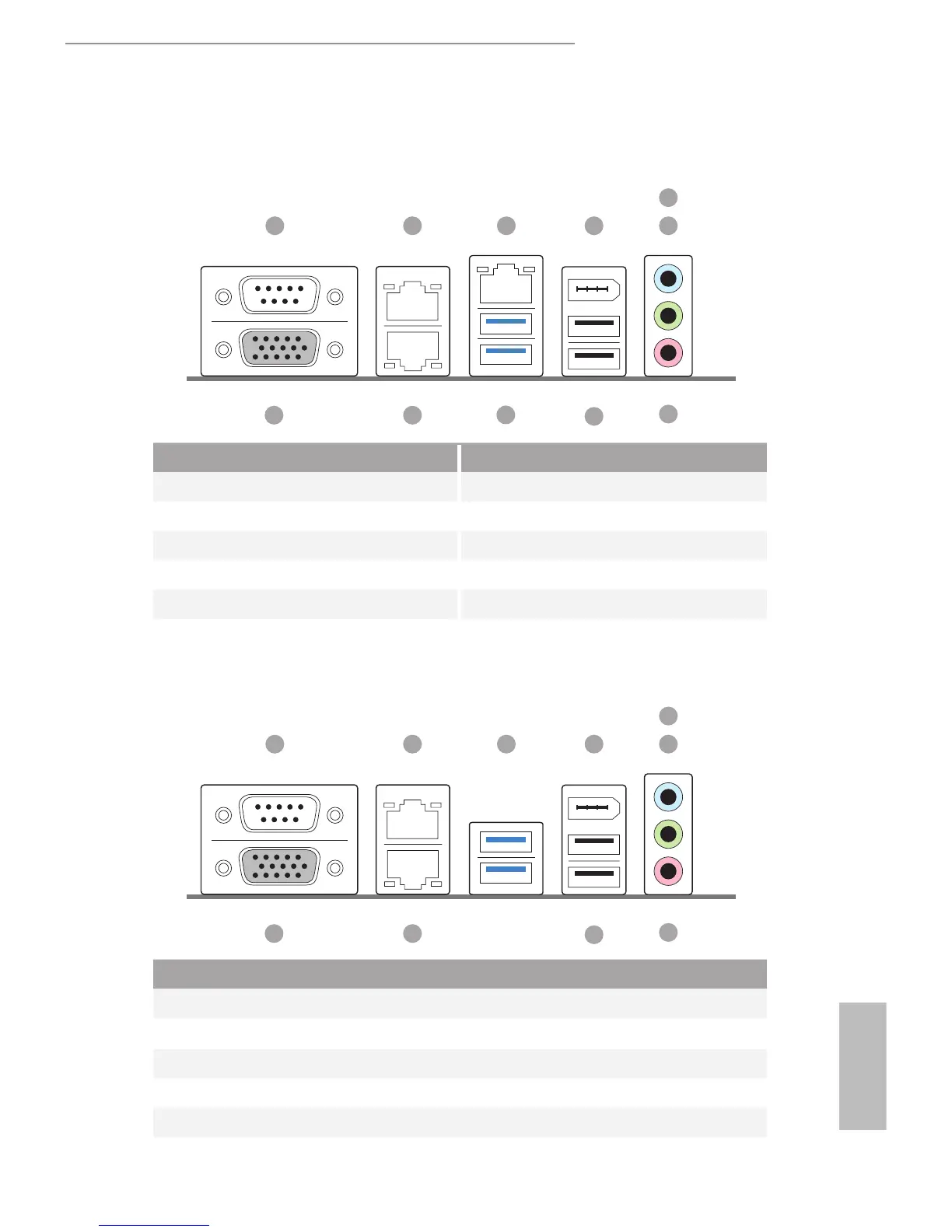

1.5 I/O Panel
EPC602D8A
No. Description No. Description
1 Serial Port (COM1) 7 IEEE 1394 Port (LAN2)
2 VGA Port (VGA1) 8 USB 2.0 Ports (USB_1-2)
3 LAN RJ-45 Port (LAN2)* 9 Line In (Light Blue)
4 LAN RJ-45 Port (LAN1)* 10 Front Speaker (Lime)
5 LAN RJ-45 Port (IPMI_LAN)** 11 Microphone (Pink)
6 USB 3.0 Ports (USB3_1-2)
EPC602D8A-V+
No. Description No. Description
1 Serial Port (COM1) 6 IEEE 1394 Port (LAN2)
2 VGA Port (VGA1) 7 USB 2.0 Ports (USB_1-2)
3 LAN RJ-45 Port (LAN2)* 8 Line In (Light Blue)
4 LAN RJ-45 Port (LAN1)* 9 Front Speaker (Lime)
5 USB 3.0 Ports (USB3_1-2) 10 Microphone (Pink)
2
4
3 5
1
6
7
9
8
10
