EPC602D8A / EPC602D8A-V+
27
English

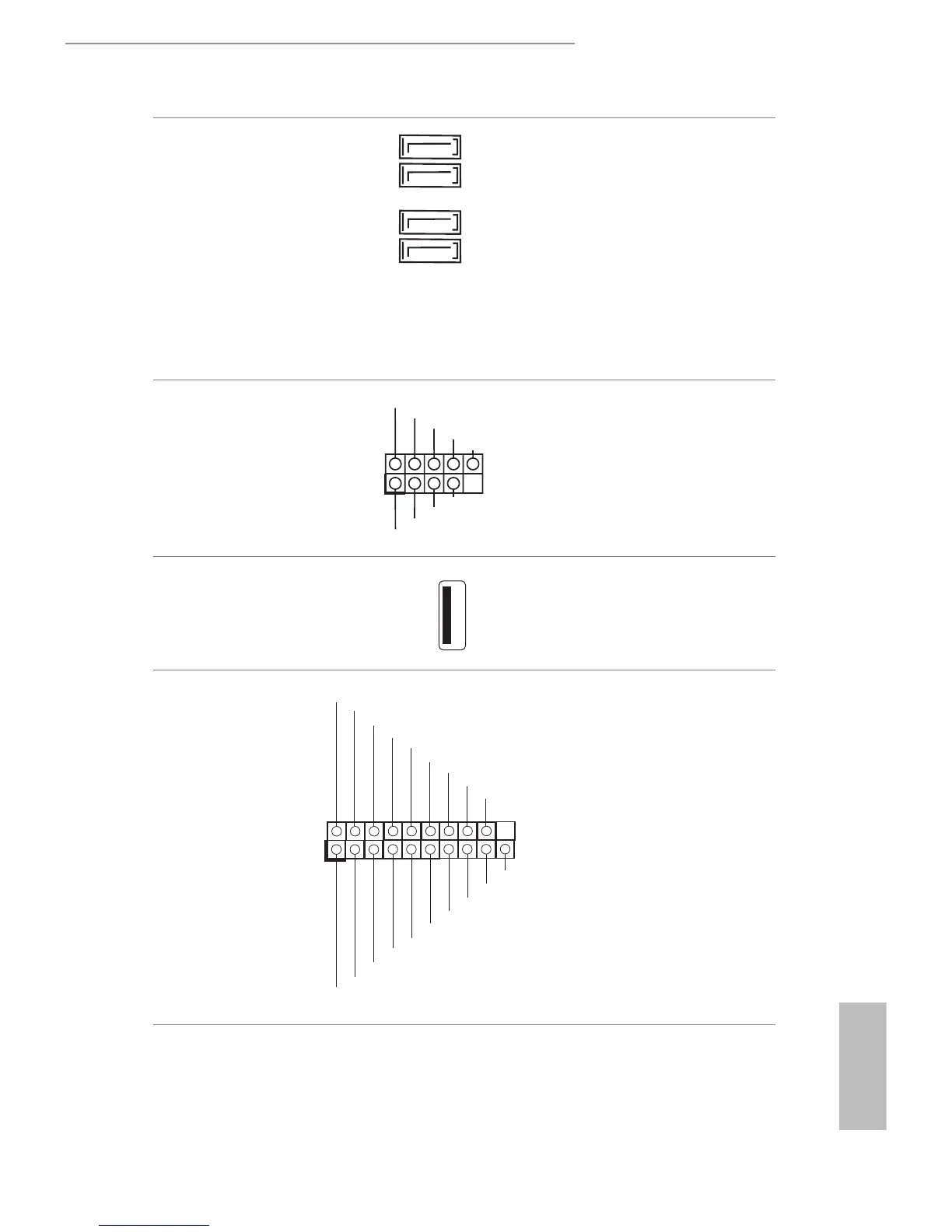

Serial ATA3 Connectors
(SATA_M0)
(see p.7, No. 17)
(SATA_M1)
(see p.7, No. 18)
(SATA_0)
(see p.7, No. 25)
(SATA_1)
(see p.7, No. 24)
SA
TA_1
SA
TA_0
SA
TA_M1
SA
TA_M0
ese four SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
USB 2.0 Header
(9-pin USB_3_4)
(see p.7, No. 28)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
Besides two USB 2.0 ports
on the I/O panel, there is one
header on this motherboard.
Each USB 2.0 header can
support two ports.
USB 2.0 Connector
(USB_5)
(see p.7, No. 38)
USB 3.0 Header
(19-pin USB3_3_4)
(see p.7, No. 2)
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
To Next Page
