2.1 CPU Installation

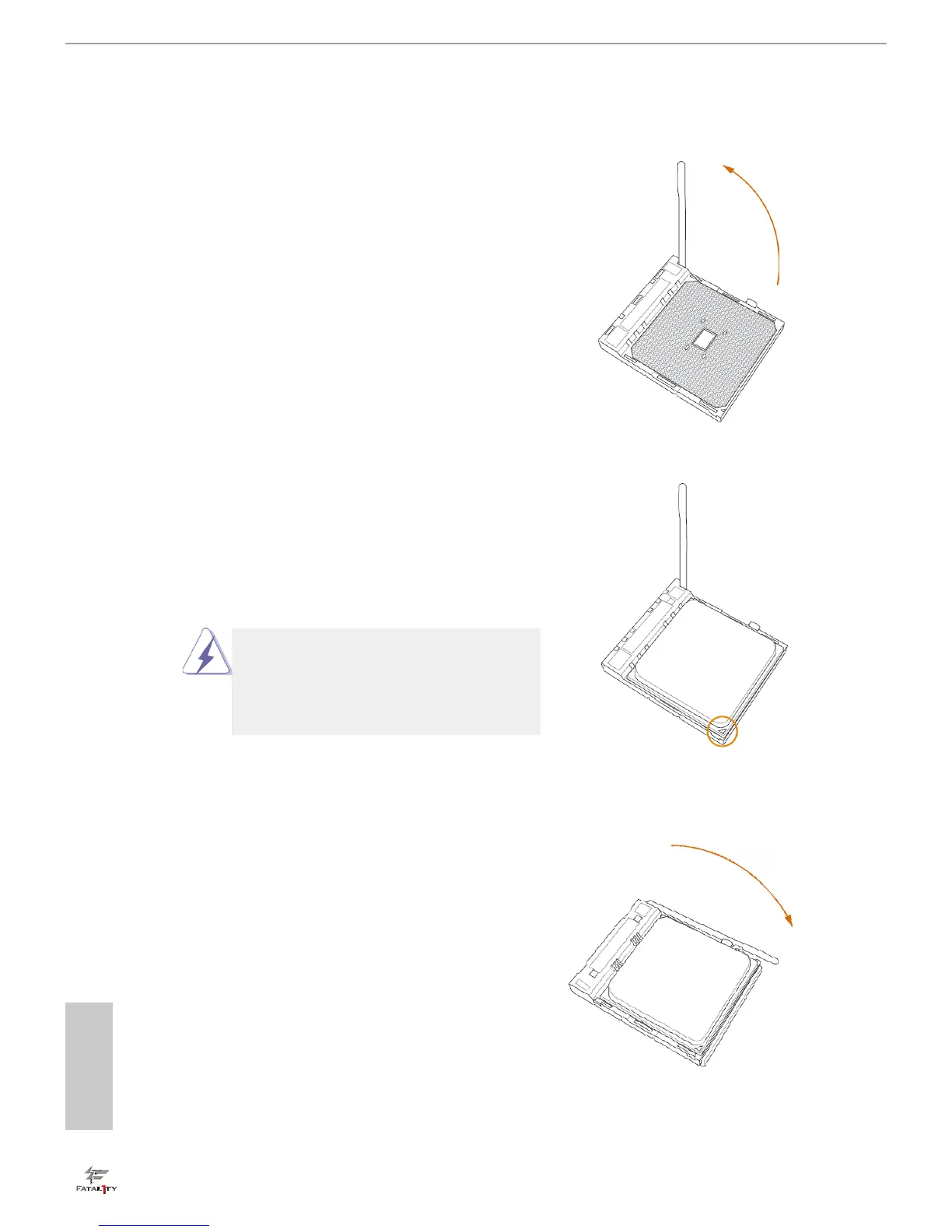

Step 1. Unlock the socket by lifting the lever up
to a 90
o
angle.
Step 2. Position the CPU directly above the
socket such that the CPU corner with
the golden triangle matches the socket
corner with a small triangle.
Step 3. Carefully insert the CPU into the
 

orientation. DO NOT force the CPU
into the socket to avoid bending of
the pins.
Step 4. When the CPU is in place, press it
   
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.

ASROCK Fatal1ty FM2A88X+ Killer Series Specifications

General

Socket	FM2+
Chipset	AMD A88X
Memory Support	DDR3
Max Memory	64GB
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express 2.0 x1	2
PCI Slots	2
SATA 6Gb/s	8
Audio Chipset	Realtek ALC1150
Audio Channels	7.1
LAN Chipset	Qualcomm Atheros Killer E2200
Max. LAN Speed	10/100/1000Mbps
PS/2	1
Form Factor	ATX
Memory Slots	4
SATA RAID	0, 1, 5, 10
USB 3.0 Ports	4
USB 2.0 Ports	8
Audio Ports	1 x Optical S/PDIF
Video Ports	D-Sub, DVI-D, HDMI
Dimensions	305 x 244 mm
Power Pin	24-pin ATX
