ASROCK Fatal1ty FM2A88X+ Killer Series User Manual

English
22

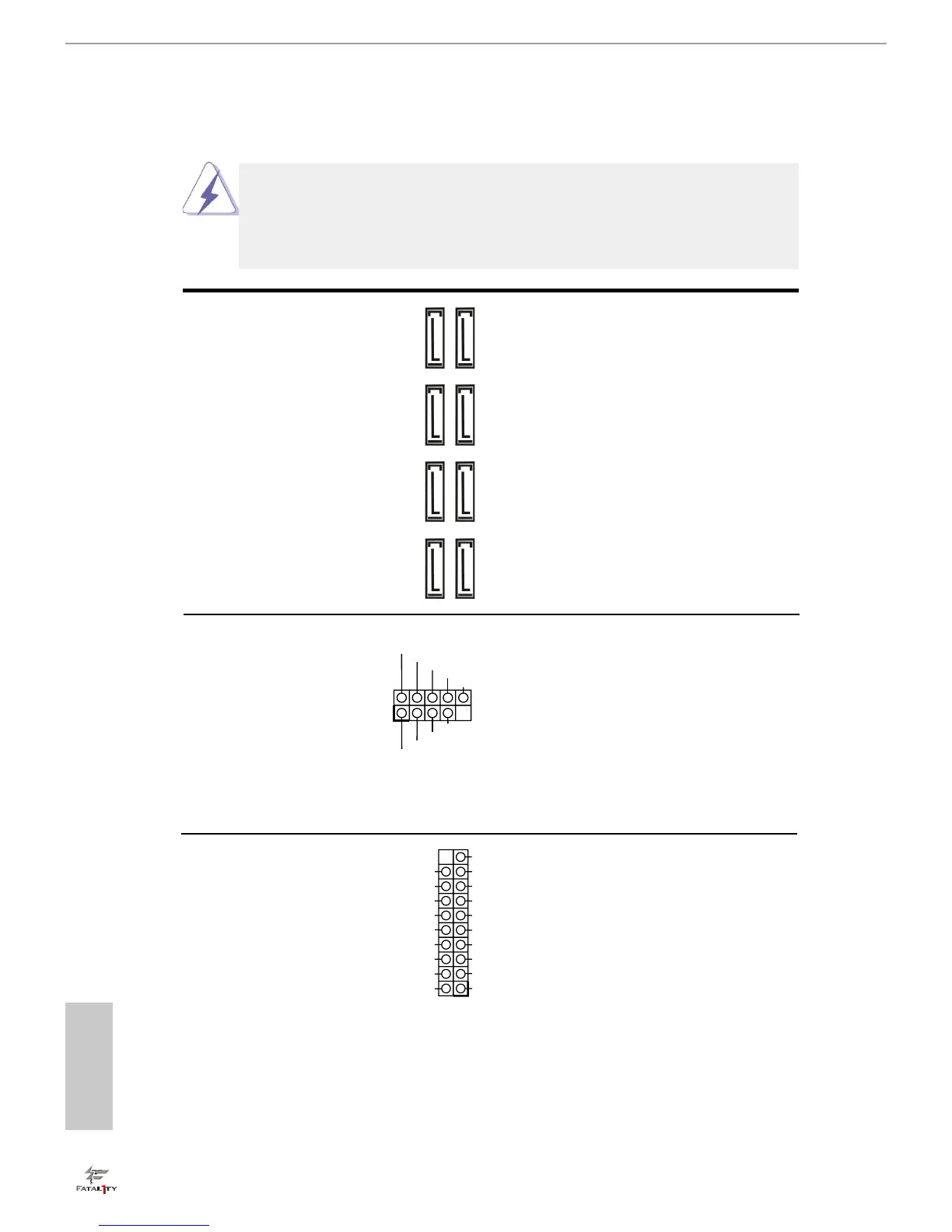

Serial ATA3 Connectors These eight Serial ATA3
(SATA3_1_2: see p.11, No. 10)
(SATA3) connectors support
(SATA3_3_4: see p.11, No. 11)
SATA data cables for internal
(SATA3_5_6: see p.11, No. 12)
storage devices. The current
(SATA3_7_8: see p.11, No. 13)
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_5_6)
ports on the I/O panel, there
(see p.11 No. 22)
are three USB 2.0 headers on
(9-pin USB_7_8)
this motherboard. Each USB 2.0
(see p.11 No. 21)
header can support two USB
(9-pin USB_9_10)
2.0 ports.
(see p.11 No. 20)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_5_6)
ports on the I/O panel, there is
(see p.11 No. 8)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_1_2SATA3_5_6 SATA3_3_4SATA3_7_8

ASROCK Fatal1ty FM2A88X+ Killer Series Specifications

General

Socket	FM2+
Chipset	AMD A88X
Memory Support	DDR3
Max Memory	64GB
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express 2.0 x1	2
PCI Slots	2
SATA 6Gb/s	8
Audio Chipset	Realtek ALC1150
Audio Channels	7.1
LAN Chipset	Qualcomm Atheros Killer E2200
Max. LAN Speed	10/100/1000Mbps
PS/2	1
Form Factor	ATX
Memory Slots	4
SATA RAID	0, 1, 5, 10
USB 3.0 Ports	4
USB 2.0 Ports	8
Audio Ports	1 x Optical S/PDIF
Video Ports	D-Sub, DVI-D, HDMI
Dimensions	305 x 244 mm
Power Pin	24-pin ATX
