Fatal1ty FM2A88X+ Killer Series
13
English

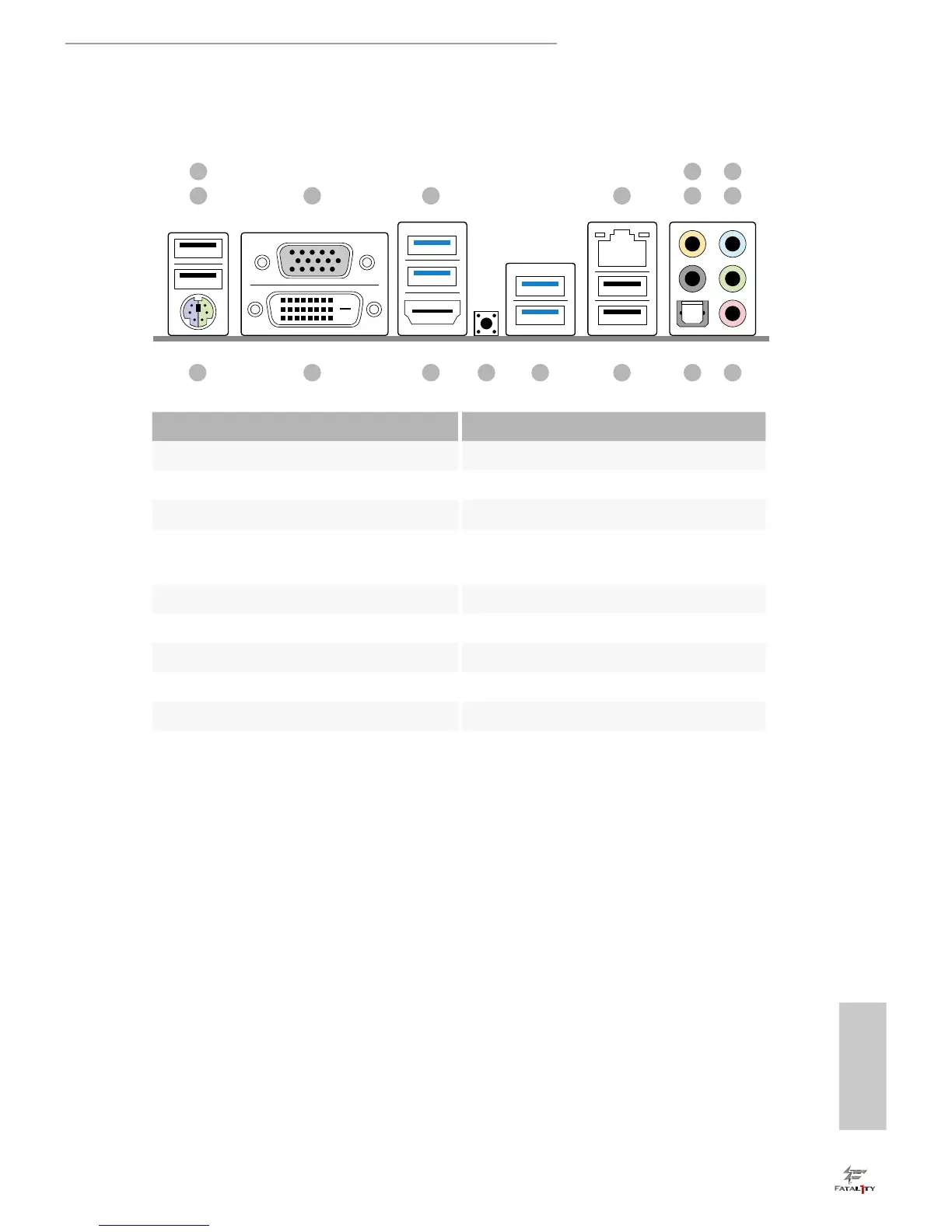

1.5 I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB_1)* 10 Microphone (Pink)
2 USB 2.0 Port (USB_2)* 11 Optical SPDIF Out Port
3 D-Sub Port 12 USB 2.0 Ports (USB_3_4)
4
USB 3.0 Ports (USB3_1_2)
(AMD A88X (Bolton-D4))
13
USB 3.0 Ports (USB3_3_4)
(ASMedia ASM1042A)
5 LAN RJ-45 Port** 14 Clear CMOS Button
6 Central / Bass (Orange) 15 HDMI Port
7 Rear Speaker (Black) 16 
8 Line In (Light Blue) 17 PS/2 Mouse/Keyboard Port
9 Front Speaker (Lime)***
1011121314151617
3 4 75
6
2
1
9
8
