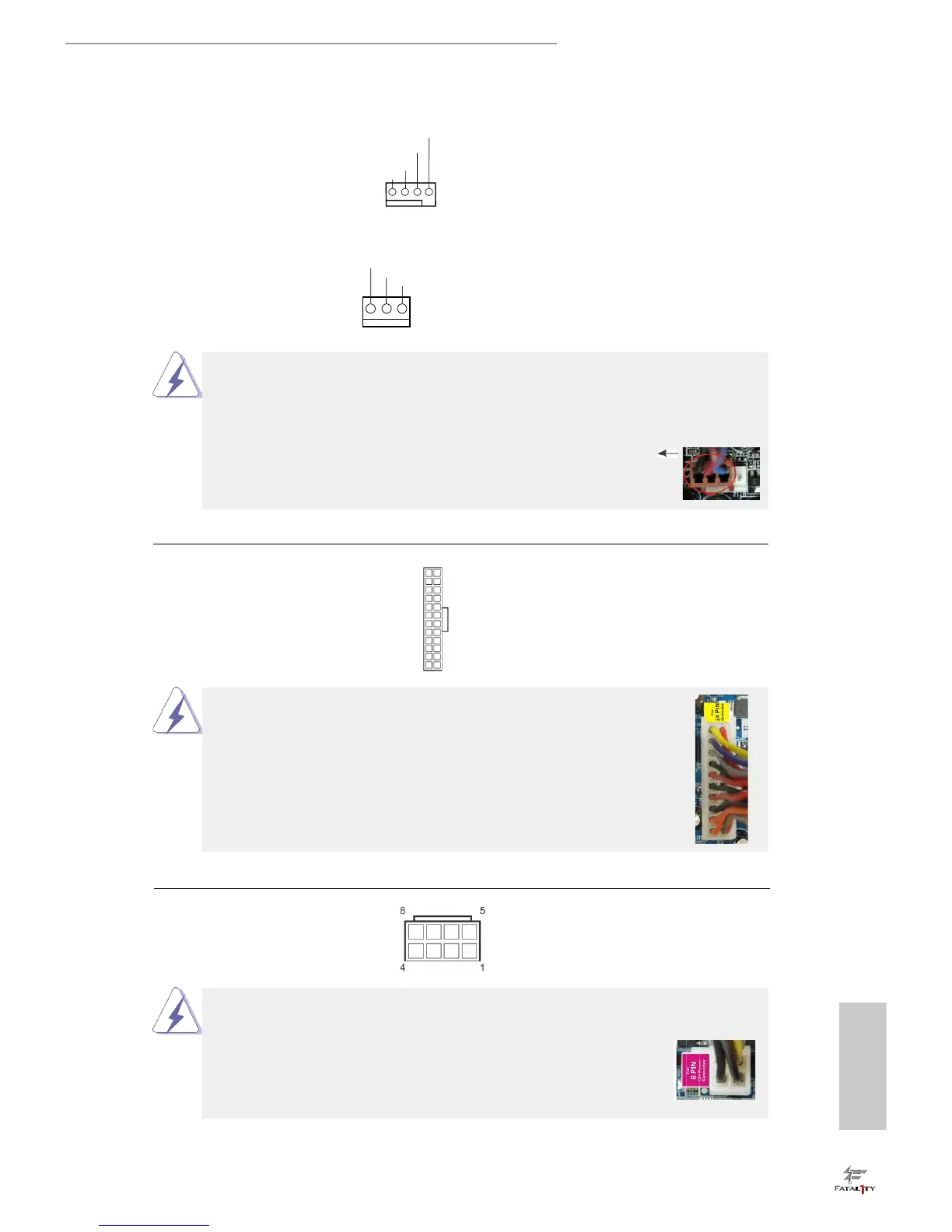

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.11 No. 7)
12
1
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
Pin 1-3 Connected
3-Pin Fan Installation
12
1
24
13
24
13
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.11 No. 3)
match the black wire to the
ground pin.
(3-pin CPU_FAN2)
(see p.11, No. 4)
G N D
+ 12V
CPU_
FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
  

power supply to this connector.
(see p.11 No. 1)


4-pin ATX power supply, please plug your power supply along with
Pin 1 and Pin 5.

GND
+12V
CPU_FAN_SPEED
8 5
4 1

ASROCK Fatal1ty FM2A88X+ Killer Series Specifications

General

Socket	FM2+
Chipset	AMD A88X
Memory Support	DDR3
Max Memory	64GB
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express 2.0 x1	2
PCI Slots	2
SATA 6Gb/s	8
Audio Chipset	Realtek ALC1150
Audio Channels	7.1
LAN Chipset	Qualcomm Atheros Killer E2200
Max. LAN Speed	10/100/1000Mbps
PS/2	1
Form Factor	ATX
Memory Slots	4
SATA RAID	0, 1, 5, 10
USB 3.0 Ports	4
USB 2.0 Ports	8
Audio Ports	1 x Optical S/PDIF
Video Ports	D-Sub, DVI-D, HDMI
Dimensions	305 x 244 mm
Power Pin	24-pin ATX
