ASROCK H61M-U3S3 User Manual

12

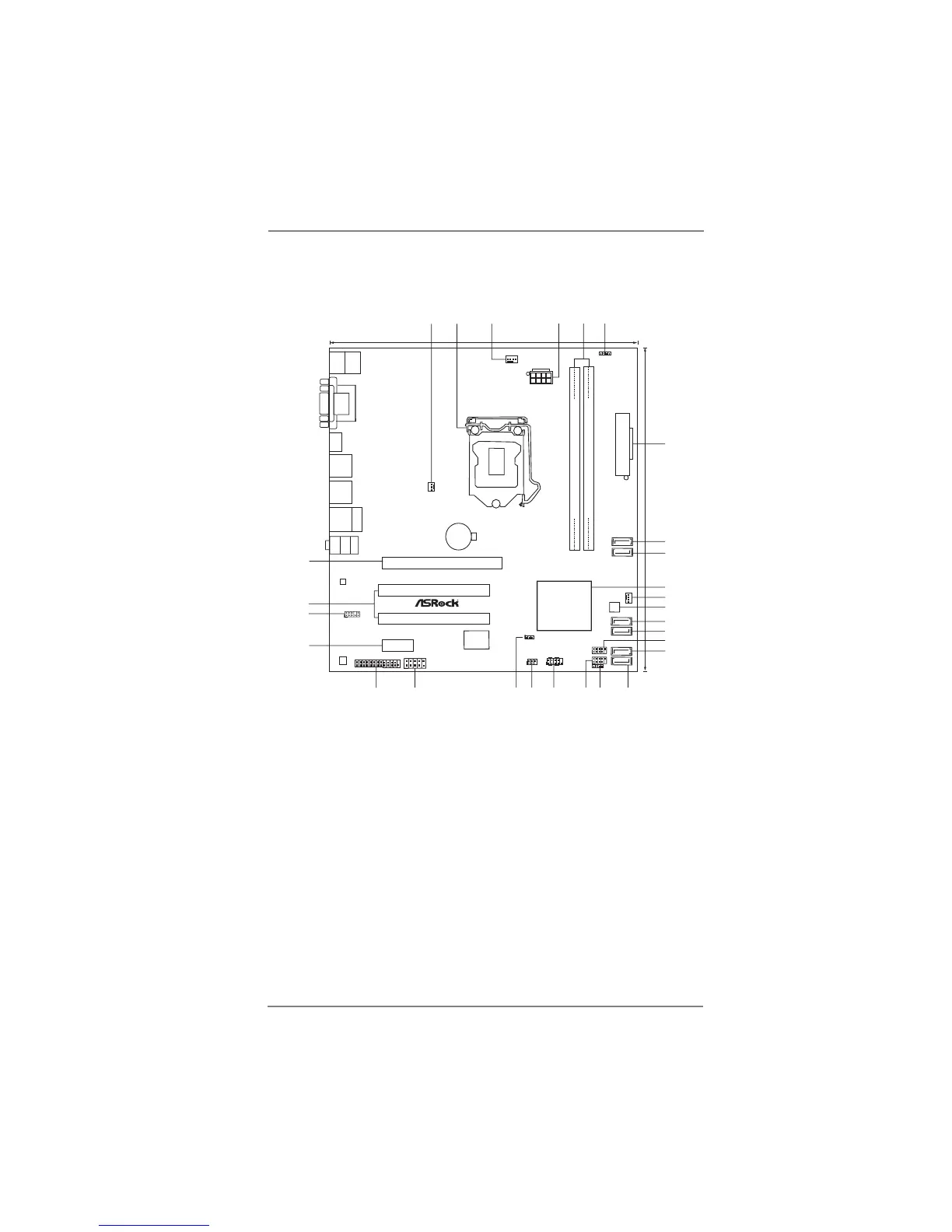

1.3 Motherboard Layout
1 Power Fan Connector (PWR_FAN1) 15 USB 2.0 Header (USB8_9, Blue)
2 1155-Pin CPU Socket 16 SATA2 Connector (SATA2_2, Blue)
3 CPU Fan Connector (CPU_FAN1) 17 SATA2 Connector (SATA2_3, Blue)
4 ATX 12V Power Connector (ATX12V1) 18 Consumer Infrared Module Header (CIR1)
5 2 x 240-pin DDR3 DIMM Slots 19 USB 2.0 Header (USB6_7, Blue)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 20 System Panel Header (PANEL1, White)
6 Chassis Speaker Header (SPEAKER 1, White) 21 Infrared Module Header (IR1)
7 ATX Power Connector (ATXPWR1) 22 Clear CMOS Jumper (CLRCMOS1)
8 SATA3 Connector (SATA3_0, White) 23 COM Port Header (COM1)
9 SATA3 Connector (SATA3_1, White) 24 Print Port Header (LPT1, White)
10 Intel H61 Chipset 25 PCI Express 2.0 x1 Slot (PCIE2, White)
11 Chassis Fan Connector (CHA_FAN1) 26 Front Panel Audio Header
12 32Mb SPI Flash (HD_AUDIO1, White)
13 SATA2 Connector (SATA2_0, Blue) 27 PCI Slots (PCI1-2)
14 SATA2 Connector (SATA2_1, Blue) 28 PCI Express 2.0 x16 Slot (PCIE1, Blue)
Intel
H61
H61M/U3S3
ATXPWR1
Designed in Taipei
21.8cm (8.6 in)
24.4cm (9.6 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
Dual Channel DDR3
PCIE1
PCI1
PCI2
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
USB 2.0
T: U SB 0
B: USB1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Super
I/O
CMOS
Battery
ATX12V1
DX10.1
PWR_FAN1
CPU_FAN1
PCI Express 2.0
ErP/EuP Ready
LAN
PHY
1
HD_AUDIO1
AUDIO
CODEC
COM1
1
RoHS
IR1
1
USB6_7
1
CIR1
1
CLRCMOS1
1
32Mb
BIOS
1
SATA2_3
SATA3_1
SATA3_0
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
CHA_FAN1
1
LPT1
Gigabit LAN
1
2
3
4
5
6
11
12
13
14
10
7
8
9
16
15
17
18
24
19
20
21
22
23
25
26
27
28
SATA2_2
PS2
Mouse
USB 3.0
T: U SB 2
B: USB3
SATA2_1
SATA2_0
USB8_9
1
PCIE2

ASROCK H61M-U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	AntiVirus, ASRock Suite
LAN controller	Atheros AR8151
Networking features	10/100/1000Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit
Controller interface type	SATA3

Weight and Dimensions

Depth	218 mm
Width	244 mm
