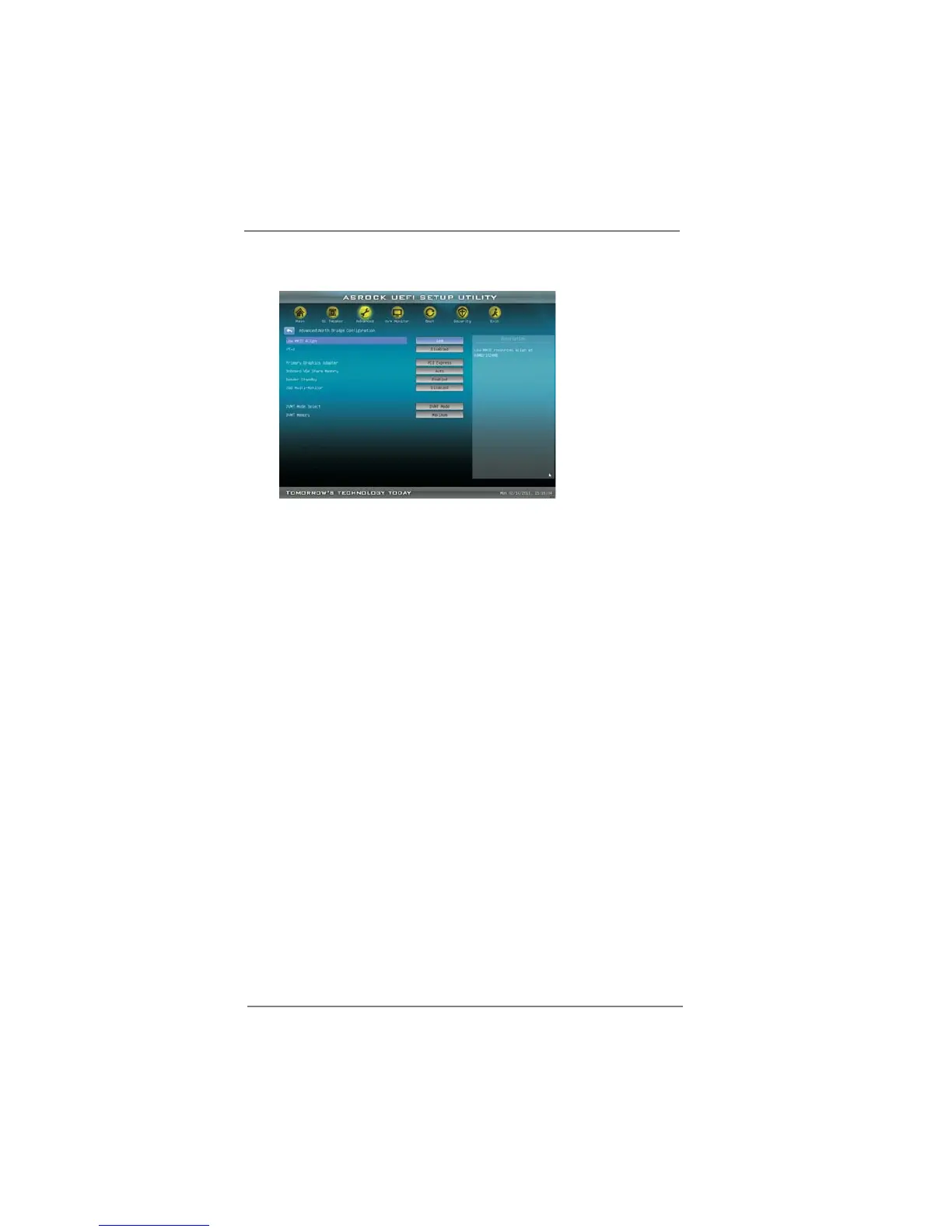

3.4.2 North Bridge Configuration
Low MMIO Align
Low MMIO resources align at 64MB/1024MB. The default value is [64MB].
VT-d
Use this to enable or disable Intel
®
VT-d technology (Intel
®
Virtualization
Technology for Directed I/O). The default value of this feature is [Disabled].
Primary Graphics Adapter
This allows you to select the boot graphic adapter priority. Confi guration
options: [Onboard], [PCI] and [PCI Express]. The default value is [PCI Ex-
press].
Onboard VGA Share Memory
This allows you to set onboard VGA share memory feature. The default
value is [Auto]. Confi guration options: [Auto], [32MB], [64MB], [128MB],
[256MB] and [512MB].
Render Standby
Use this to enable or disable Render Standby by Internal Graphics Device.
The default value is [Enabled].
IGD Multi-Monitor
Use this to enable or disable IGD Multi-Monitor by Internal Graphics
Device. The default value is [Disabled].
DVMT Mode Select
Use this option to adjust DVMT mode. The default value is [DVMT Mode].
DVMT (Dynamic Video Memory Technology) is an architecture that offers
breakthrough performance for the motherboard through effi cient memory
utilization. In DVMT mode, the graphics driver allocates memory as
needed for running graphics applications and is cooperatively using this
memory with other system components. This item will not be used under
Windows
®
Vista
TM
/ 7 OS because the driver will intelligently detect
physical memory available and allocate necessary video memory.

ASROCK H61M-U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	AntiVirus, ASRock Suite
LAN controller	Atheros AR8151
Networking features	10/100/1000Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit
Controller interface type	SATA3

Weight and Dimensions

Depth	218 mm
Width	244 mm
