ASROCK H61M-U3S3 User Manual

45

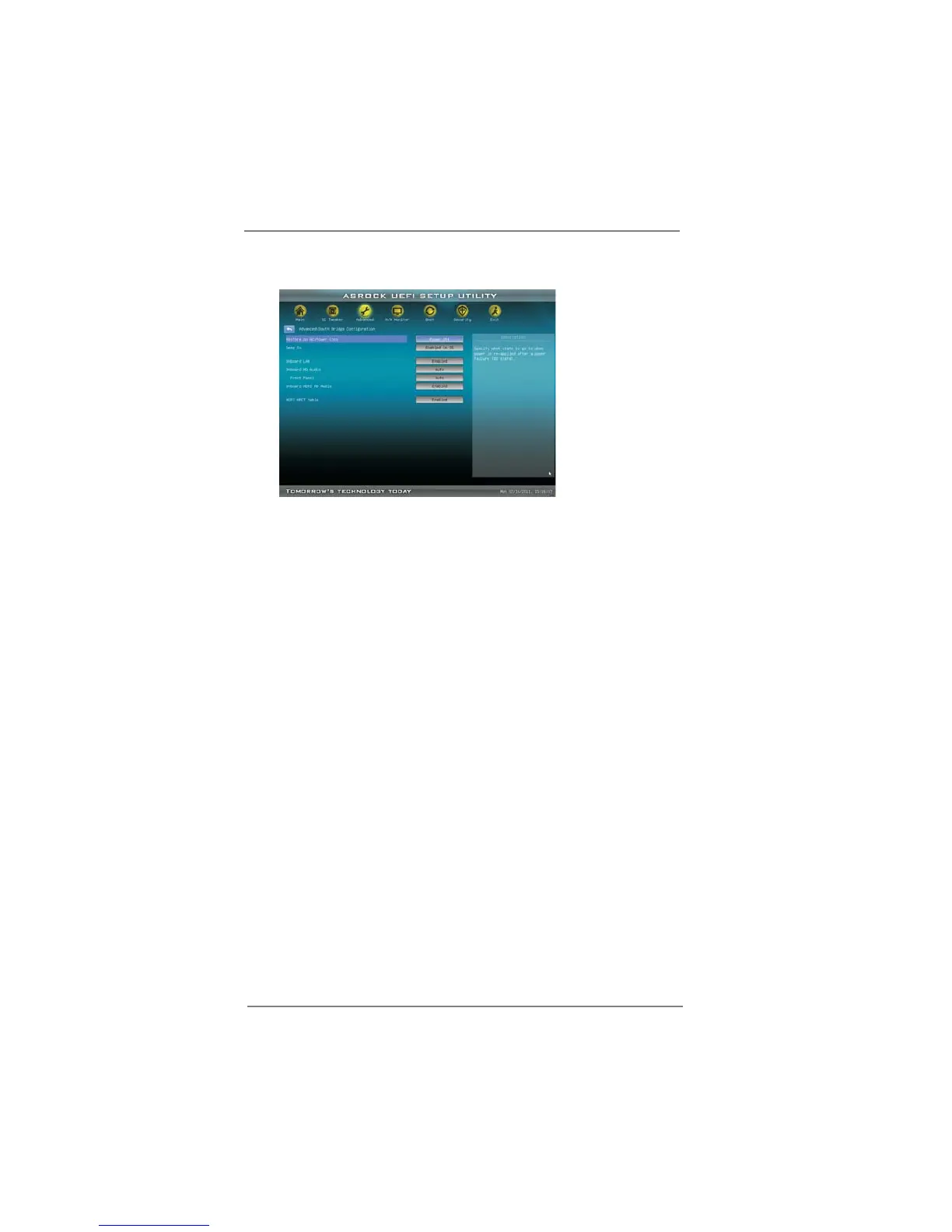

3.4.3 South Bridge Configuration
Restore on AC/Power Loss
This allows you to set the power state after an unexpected AC/power loss.
If [Power Off] is selected, the AC/power remains off when the power
recovers. If [Power On] is selected, the AC/power resumes and the
system starts to boot up when the power recovers.
Deep Sx
Mobile platforms support Deep S4/S5 in DC only and desktop platforms
support Deep S4/S5 in AC only. Confi guration options: [Disabled], [Enabled
in S5] and [Enabled in S4 and S5]. The default value is [Enabled in S5].
Onboard LAN
This allows you to enable or disable the “Onboard LAN” feature.
Onboard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If
you select [Auto], the onboard HD Audio will be disabled when PCI Sound
Card is plugged.
Front Panel
Select [Auto] or [Disabled] for the onboard HD Audio Front Panel.
Onboard HDMI HD Audio
This allows you to enable or disable the “Onboard HDMI HD Audio”
feature.
ACPI HPET Table
Use this item to enable or disable ACPI HPET Table. The default value is
[Enabled]. Please set this option to [Enabled] if you plan to use this
motherboard to submit Windows
®
Vista
TM
certifi cation.

ASROCK H61M-U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	AntiVirus, ASRock Suite
LAN controller	Atheros AR8151
Networking features	10/100/1000Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit
Controller interface type	SATA3

Weight and Dimensions

Depth	218 mm
Width	244 mm
