HDMI port
2. If you have installed onboard VGA driver from our support CD to your system
already, you can freely enjoy the bene ts of dual monitor function after your
system boots. If you haven’t installed onboard VGA driver yet, please install
onboard VGA driver from our support CD to your system and restart your
computer.
2.7 Dual Monitor and Surround Display Features
Dual Monitor Feature
This motherboard supports dual monitor feature. With the internal VGA output sup-
port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene ts of dual monitor
feature without installing any add-on VGA card to this motherboard. This mother-
board also provides independent display controllers for DVI-D, D-Sub and HDMI to
support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different
display contents.
To enable dual monitor feature, please follow the below steps:

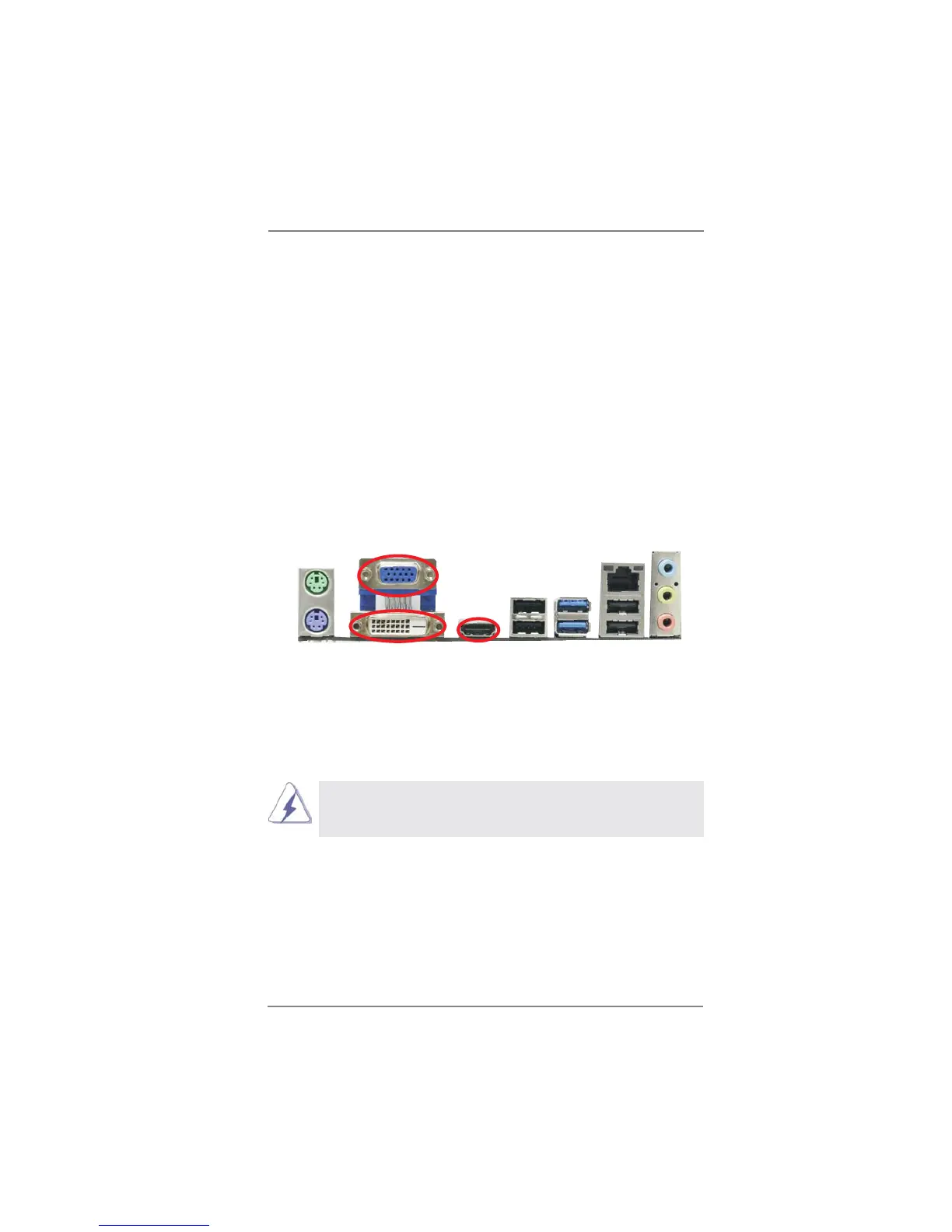

1. Connect DVI-D monitor cable to VGA/DVI-D port on the I/O panel, connect D-Sub
monitor cable to VGA/D-Sub port on the I/O panel, or connect HDMI monitor
cable to HDMI port on the I/O panel.
VGA/D-Sub port
VGA/DVI-D port
D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.
You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub,
or HDMI + D-Sub.

ASROCK H61M-U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Number of COM connectors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	AntiVirus, ASRock Suite
LAN controller	Atheros AR8151
Networking features	10/100/1000Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit
Controller interface type	SATA3

Weight and Dimensions

Depth	218 mm
Width	244 mm
