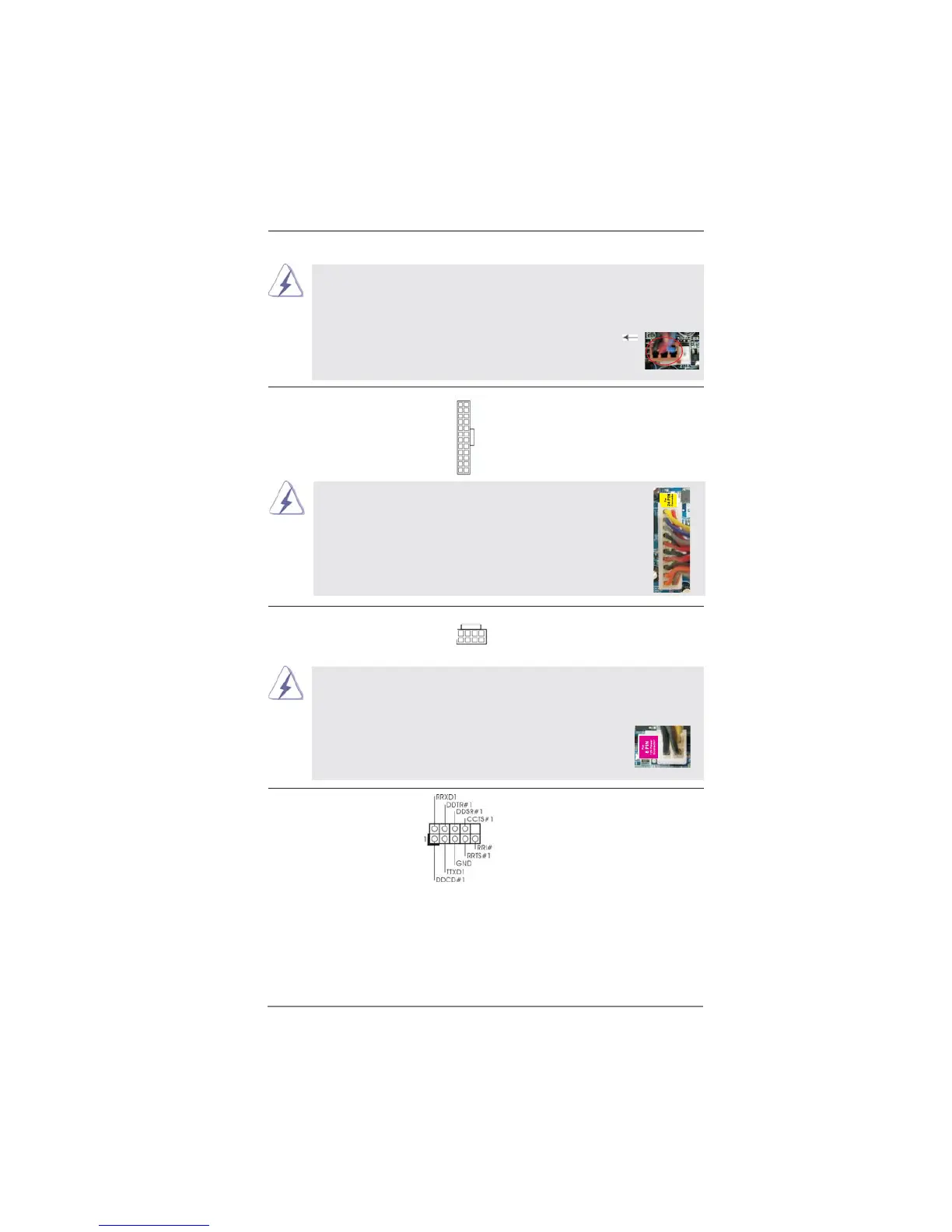

28
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.12 No. 7)
12
1
24
13
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.
12
1
24
13
ATX 12V Power Connector Please connect an ATX 12V
(8-pin ATX12V1)
power supply to this connector.
(see p.12 No. 4)
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power connector, it can still work
if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 5.
8 5
4 1
8 5
4 1
Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.12 No. 23)

Table of Contents

Other manuals for ASROCK H61M-U3S3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK H61M-U3S3 and is the answer not in the manual?

ASROCK H61M-U3S3 Specifications

General IconGeneral
Non-ECCYes
Memory channelsDual-channel
Number of memory slots2
Maximum internal memory16 GB
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7
Number of COM connectors1
Number of SATA II connectors4
Number of Parallel ATA connectors0
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chipRealtek ALC662
CertificationFCC, CE, WHQL, ErP/EuP Ready
Component forPC
Power source typeATX
Motherboard chipsetIntel® H61
Audio output channels5.1 channels
Motherboard form factormicro ATX
Compatible operating systemsWindows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Maximum graphics card memory1759 MB
Parallel processing technology supportNot supported
PCI Express slots version2.0
Trial softwareAntiVirus, ASRock Suite
LAN controllerAtheros AR8151
Networking features10/100/1000Mbps
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
BIOS memory size32 Mbit
Controller interface typeSATA3
Weight and Dimensions IconWeight and Dimensions
Depth218 mm
Width244 mm
