ASROCK Mini Series User Manual

26
English
6.4.1 Qualcomm® Atheros® Security Wake On Internet
Technology
Qualcomm® Atheros® Security Wake On Internet Technology allows you to wake up and
remote control your home computer from sleep or shutdown state.

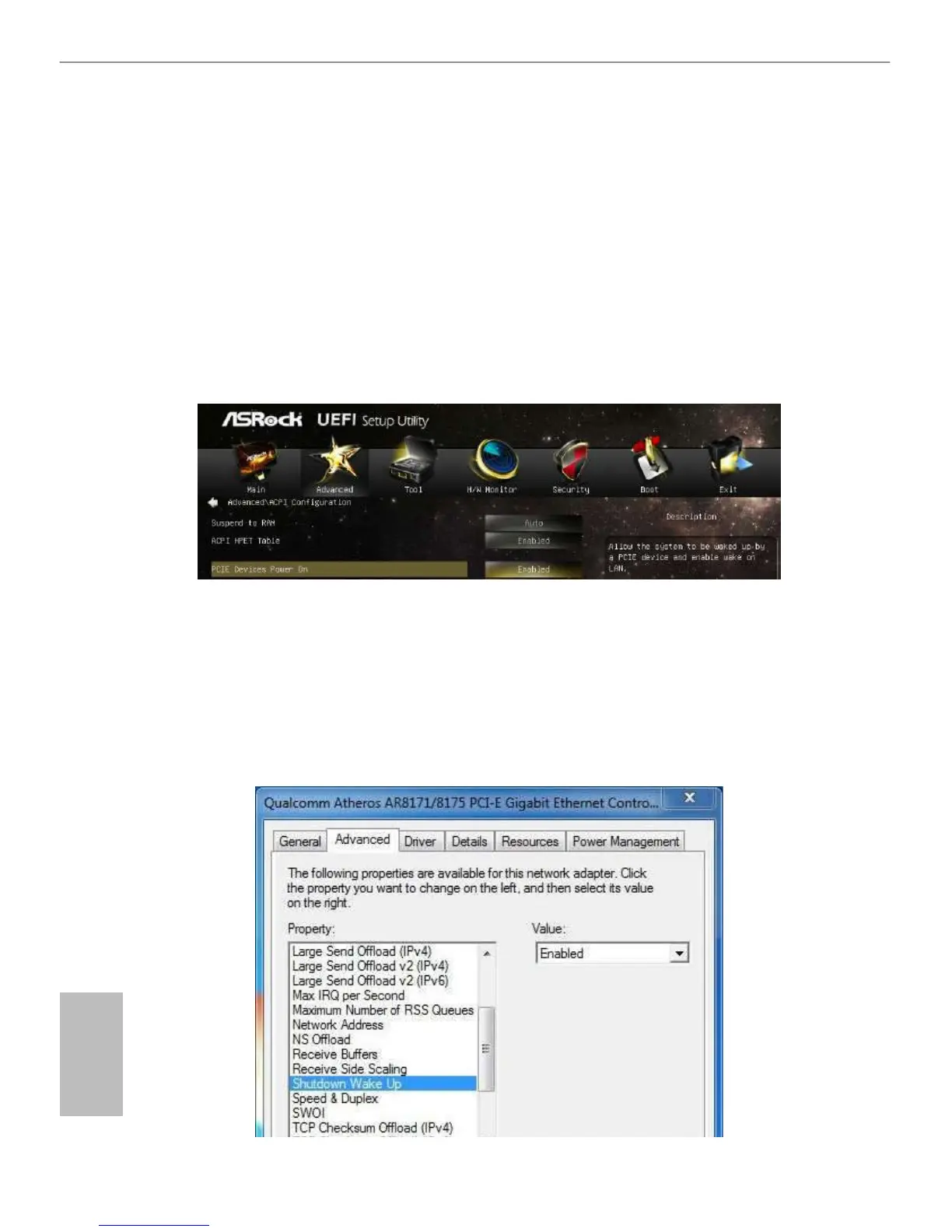

Before conguring this feature, verify the followings on your host computer:
Make sure that the "PCIE Devices Power On" is enabled in UEFI SETUP
UTILITY > Advanced > ACPI Conguration.
Make sure that the "Shutdown Wake Up" and "SWOI" are enabled in Device
Manager > Network Adapters > Qualcomm Atheros AR8171/8175 PCI-E Gigabit
Ethernet Controller > Advanced.
*"SWOI" may not appear in certain driver versions.
*e UEFI screen is for reference only. e actual screen may dier by model.

ASROCK Mini Series Specifications

General

Model	ASRock Mini Series
Memory Type	DDR4 SODIMM
Power Supply	External Power Adapter
Processor	Varies by model (Intel or AMD)
Chipset	Varies by model (Intel or AMD)
Storage	Varies by model (M.2, 2.5" SATA)
Graphics	Integrated (Intel UHD Graphics, AMD Radeon Graphics)
Video Output	HDMI, DisplayPort
Networking	Gigabit LAN, Optional Wi-Fi
USB Ports	USB 3.2 Gen1, USB 2.0
Dimensions	Varies by model
Operating System	None (Barebone)
