Assa AB 702027 Edition 2 Page 2 of 6

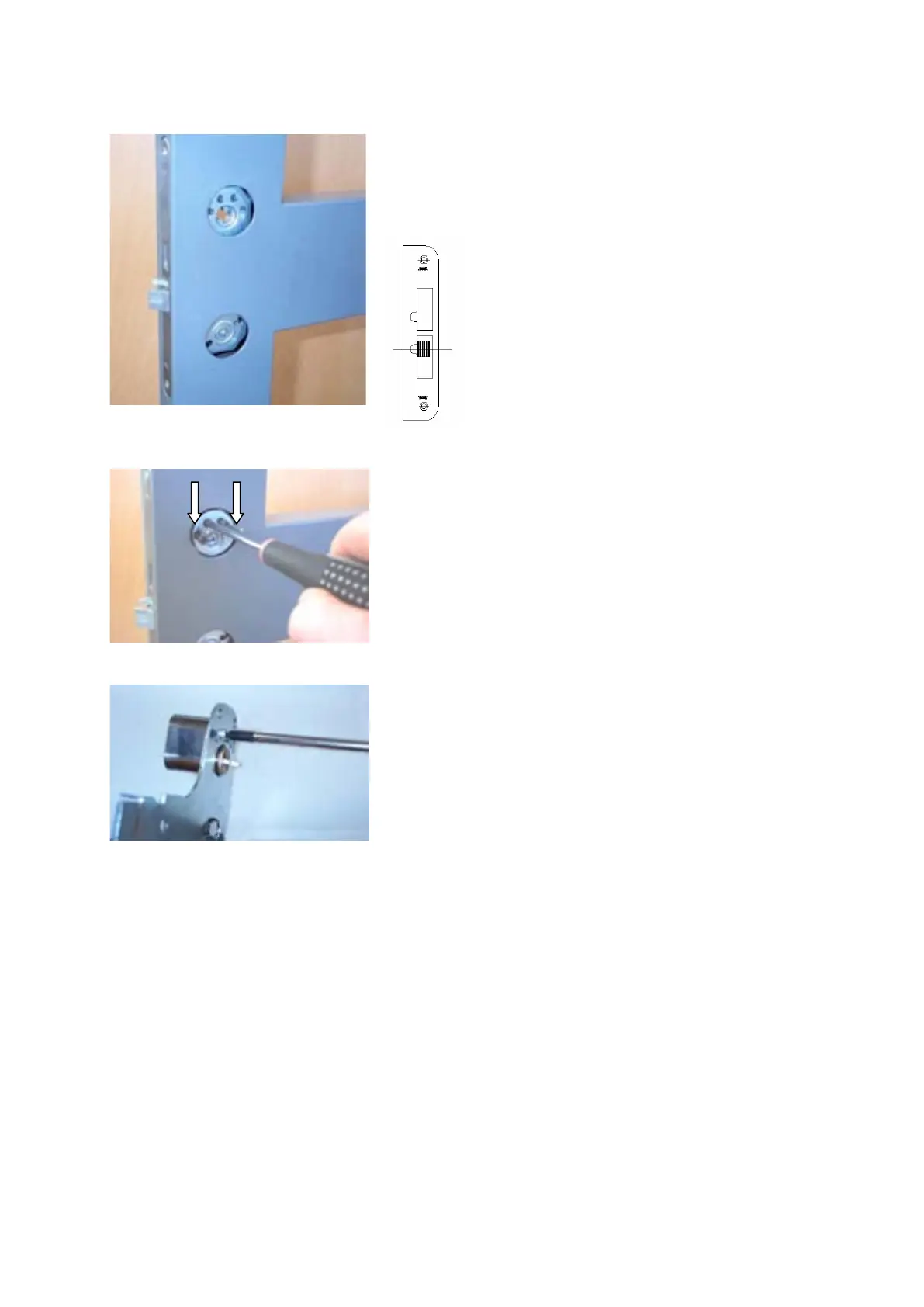

1. Install lock case Assa 1525 or 1526. The six-sided
follower shall be turned against the panic device. The
gap between door and frame shall be 1-3 mm to insure a
proper function.
2. Outside cylinder is fixed by four high security bolts
through the round mounting piece.
The two steering pins are, if necessary, cut according to
the table below and pressed into the mounting piece.
3. Cut the inside cylinder follower according to the table
below. Attach the cylinder to the central unit bottom
plate with two 13 mm screws.
Install the strike plate. NOTE! The
latch must be in a centered line to
the lower cut for the side screw in
the strike plate (see picture)
