Assa AB 702027 Edition 2 Page 3 of 6
C-measure
of door
Length of cylinder
follower
0 / -1 mm
Length steering pin
± 2 mm
Stop washer/six-sided
follower
C-measure
16,5 mm 4 mm 20 mm 12 mm
20 mm 7 mm 20 mm 17 mm
25 mm 12 mm 20 mm 22 mm
30 mm 17 mm 30 mm 27 mm
35 mm 22 mm 30 mm 32 mm
40 mm 27 mm 30 mm 37 mm
45 mm 32 mm 30 mm 42 mm
50 mm 37mm 46 mm 47 mm
55 mm 42 mm 46 mm 52 mm

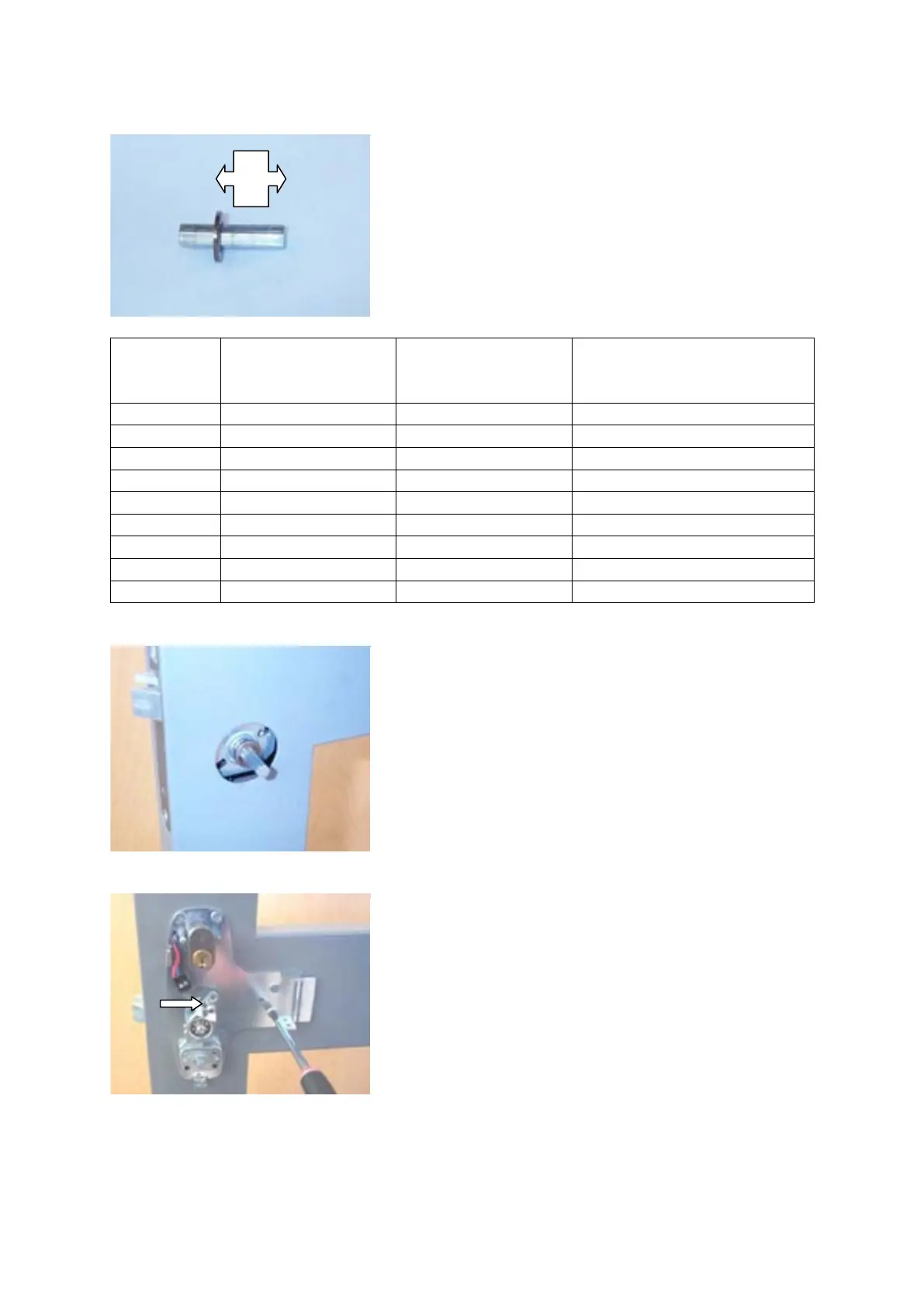

4. Use the circular tube tool and adjust the stop washer
on the six-sided follower according to the table below.
Put the adjusted six-sided follower into the lock case
with the stop washer against the cylinder follower on the
lock case.
Two lengths of the six-sided follower are enclosed in the
package to suit different door thickness. The follower
can, if necessar
, have to be cut.
C
5. The stop washer must be turned against the central
unit to prevent the six-sided follower to slip out from the
lock case.
6. Attach the central unit. Pay attention to the connection
between the cylinder follower and the mounting piece
and between the six-sided follower and the lock case.
During installation the ball-and-socket joint must be
turned against the direction of the panic bar.
