Assa AB 702027 Edition 2 Page 4 of 6

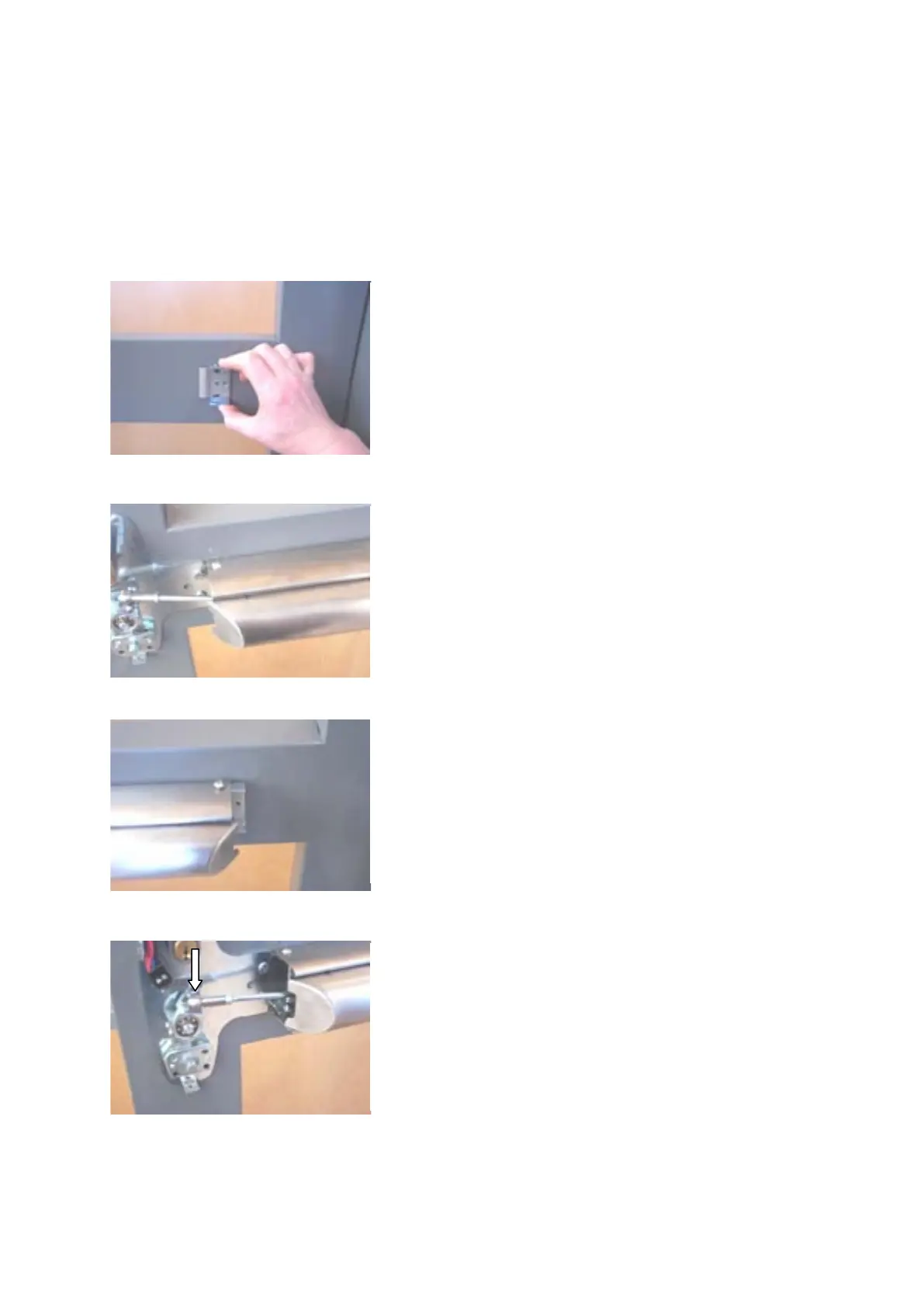

8. Use the drill template to calculate position and drill
holes for the rear mounting bracket.
Do not attach the bracket at this point.
9. Attach the panic bar to the central unit with one Allen
screw.
7. Check the function from in- and outside cylinder:
- Function of dead bolt through in- and outside cylinder.
(only lock case mod 1525)
- Retraction of latch and deadlocking through in- and
outside cylinder.
11. Connect the ball-and-socket joint between the panic
bar and the central unit.
10. Attach the panic bar to the rear mounting bracket
with one Allen screw
.
Attach the mounting bracket lightly to the pre-drilled
holes in the door.
