February 2012 12 80-0180-351 Rev. E

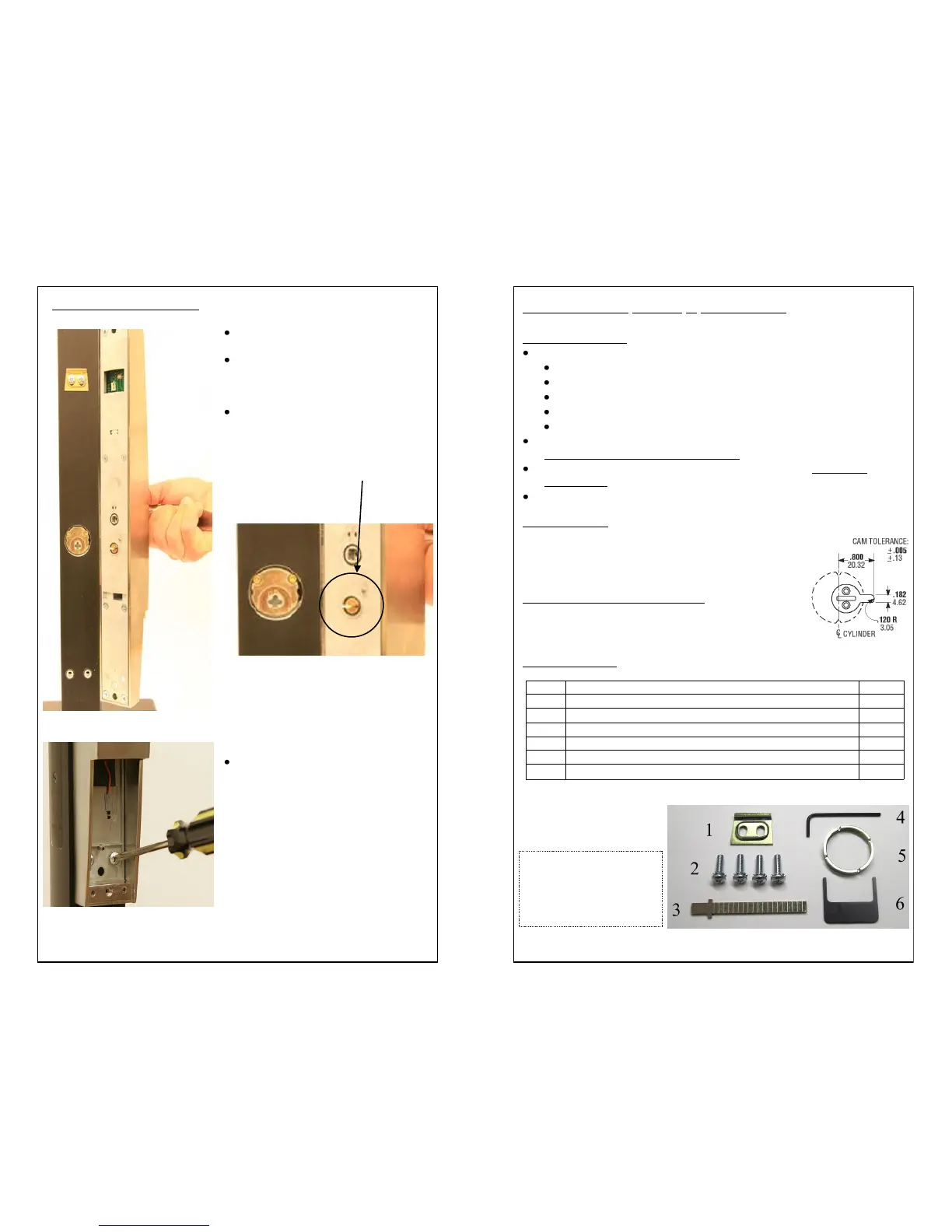

Mounting the eForce
®
150
Insert the properly dimensioned spin-
dle into the output hub.
Mount eForce
®
150 onto mounting
bracket and guide spindle into Cam
Plug (MS 1850 configuration shown)
(FIG. 17a & 17b).
The eForce
®
150 must sit flush on
the door surface.
Secure with two (2) #10-32 x 5/8”
screws as shown in (FIG. 18).
FIG. 17a
FIG. 18
Spindle
FIG. 17b
80-0180-351 Rev. E 5 February 2012
INSTALLATION TOOLS & EQUIPMENT
IMPORTANT NOTES:
The 3090-01 is designed exclusively for latching hardware including:
Adams Rite 4500/4900 Deadlatches;
Adams Rite 8000 Series Exit Devices;
Yale 7200 Series Narrow Stile Exit Devices;
Corbin Russwin ED4000 Series, and
SARGENT 8500 Narrow Design Rim Exit Devices.
The 3090-02 is compatible with Adams Rite MS
®
Series Deadbolts only!
THESE UNITS ARE NOT INTERCHANGEABLE!
These instructions, and the fasteners supplied, apply to metal door
applications.
Other door types will need fasteners designed for the given medium.
TOOLS NEEDED:
Common hand tools such as center punch, drill gun, ¼”
drill bit, Phillips screwdriver, pliers, flat tip screwdriver,
pencil.
ADDITIONAL EQUIPMENT NEEDED:
Mortise Cylinder - 1” to 1½” in length range with MS cam
(Fig. 1). (Note: 1½” cylinders require a 1/8” trim ring).
SUPPLIED PARTS:
NOTE: A cam plug is
supplied for either the
3090-01 latch or 3090-02
lock.
THIS PRODUCT MUST BE
INSTALLED ACCORDING
TO ALL APPLICABLE
BUILDING AND LIFE
SAFETY CODES
Item Description Qty.
1 Mounting Bracket (Part # 22-9076) 1
2 #10-32 X 5/8” Phillips Pan Head Screws w/Lockwasher 4
3 Spindle (Part # 22-9154) 1
4 5/64” Allen Key 1
5 Cylinder Locking Ring (Part # 24-0061) 1
6 Locking Ring Spanner Tool (Part # 22-0594) 1
To Next Page
