Assa Abloy 841C-50 User Manual

1

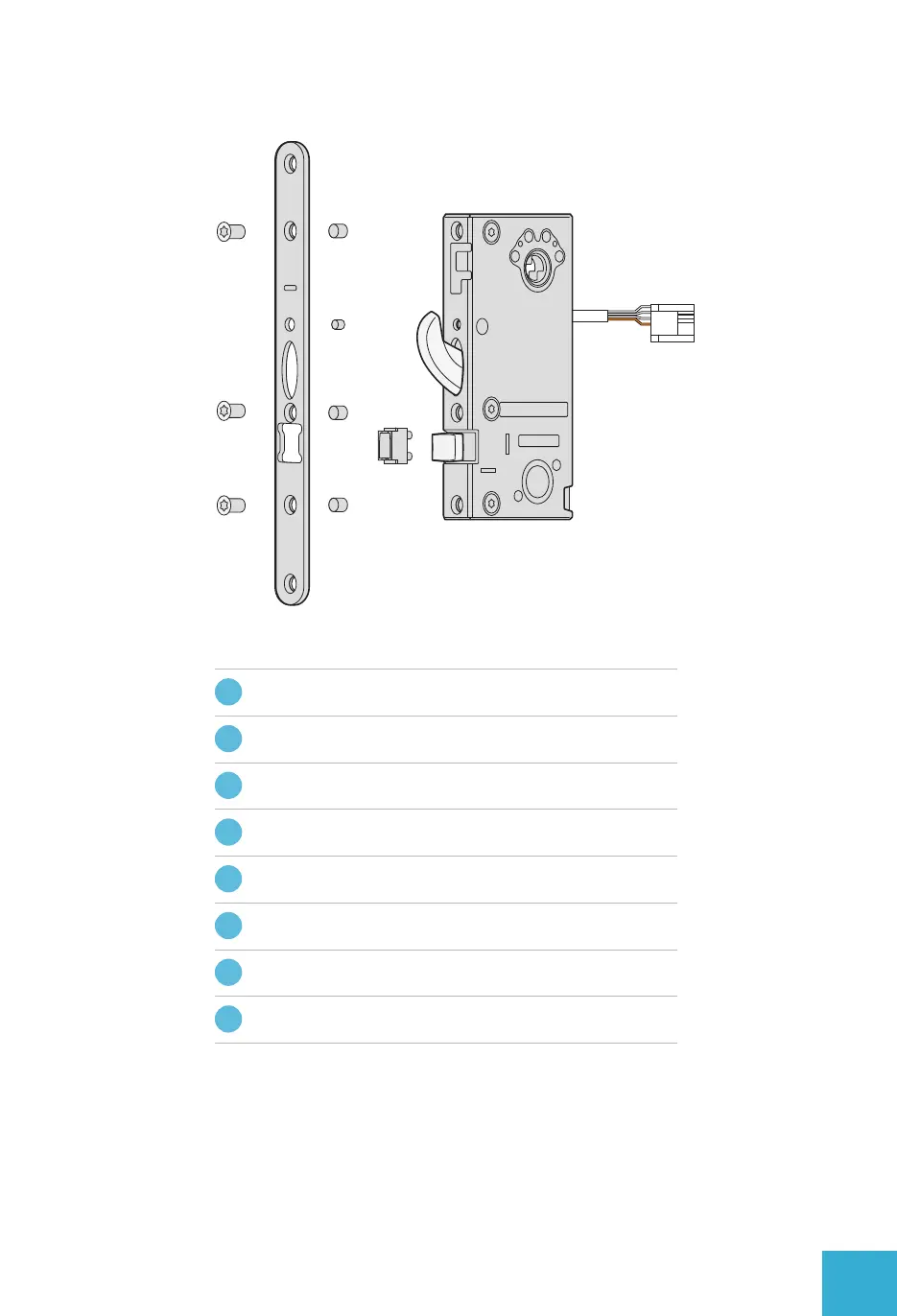

Unmount the screws (Torx T20).
2
Be careful the pin and socket can fall out.
3
Unmount the plastic.
4
Turn the latchbolt.
5
Assembly the plastic.
6
Assembly the pin and socket.
7
Assembly the forend.
8
Assembly the screws (Torx T20).
Door monitor
The placement of the door monitor is under the date mark on the forend.
Latch bolt 840C/850C
1 2
3
4
5
