16 Issue 2008-11-13 1004935-US-1.0

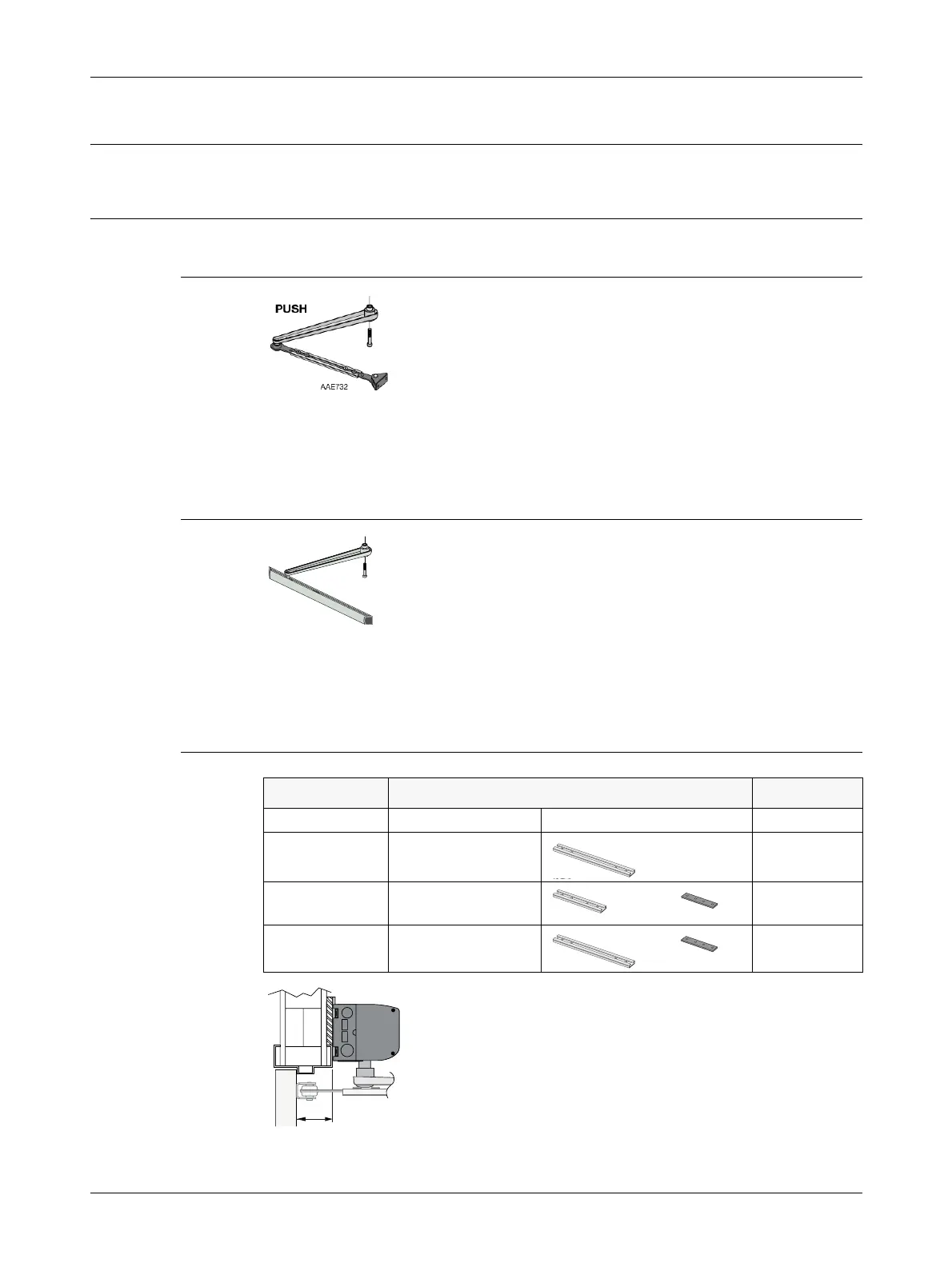

8Options
8.1 Arm systems
8.1.1 Arm System, PUSH, Heavy Duty Arm / Hybrid
These arm systems are delivered with drive arm, telescopic part and door fitting.
They are used if the operator is installed on the wall on the opposite side of the door
swing and approved for fire door applications.
8.1.2 Arm System, PULL
This arm system is delivered with drive arm, guide shoe and door fitting.
It is used if the operator is installed on the wall on the same side as the door swing,
for example the door is pulled open.
8.1.3 PUSH / SAS-F Arm Extensions
Reveal = X Extension/Joint part P/N
Up to 4 3/8" None (standard arm) – –
4 3/8" to 9 1/4" 13 9/16" 21-06-173005
9 1/4" to 14 1/8" 9 1/16" + Joint part 21-06-173004
21-06-173191
14 1/8" to 19" 13 9/16" + Joint part 21-06-173005
21-06-173191
PUSH: P/N: 173099BK
Heavy Duty Arm / Hybrid: P/N: 21-06-173383
AAE346
PULL
P/N: 100125 BK
+
+
X
