Keypad 10 Line Lock
8/14/08 Copyright © 2005, 2007,2008, SARGENT Manufacturing, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

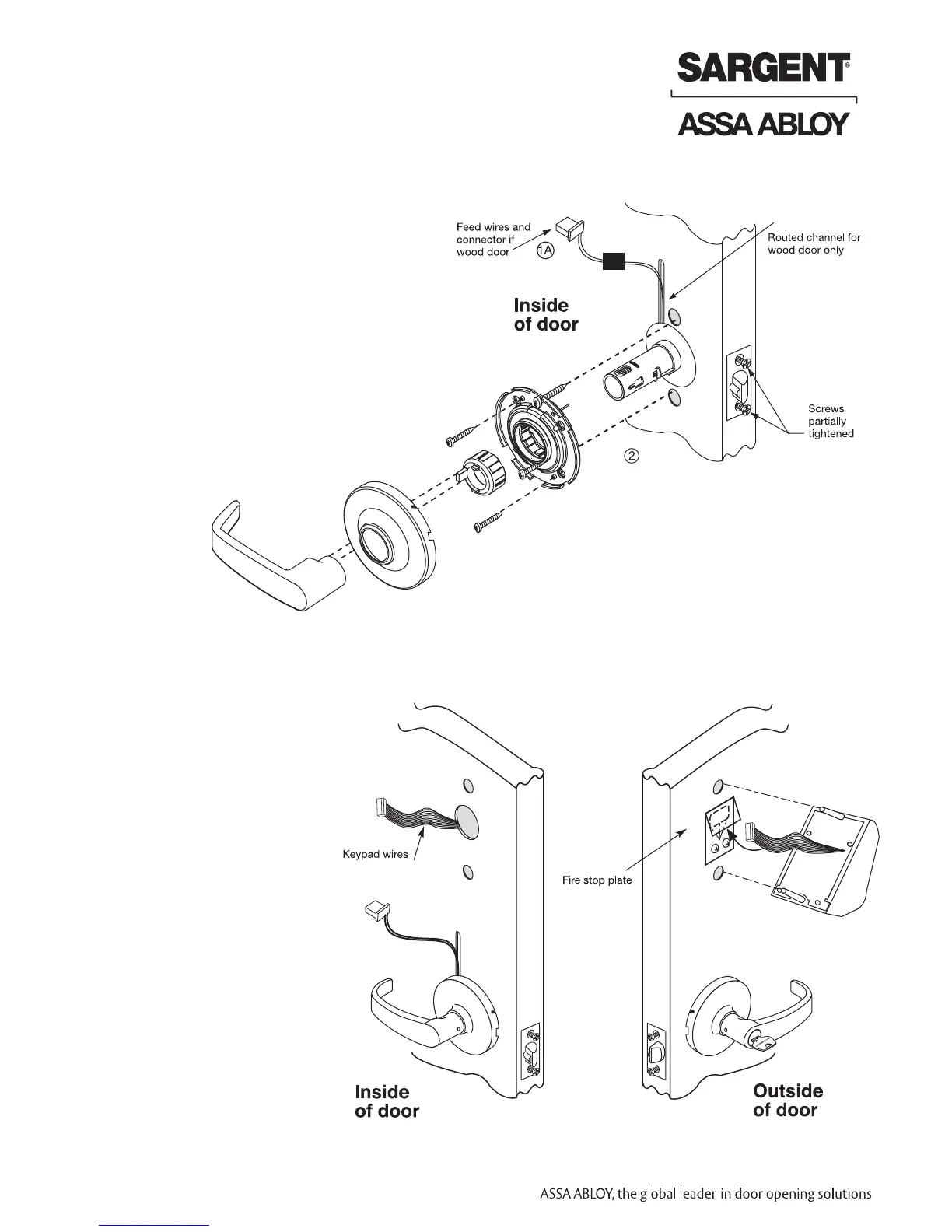

Step #6 Securing the Lock to Door
1A. If wood door, feed wires up through
the routed channel as shown
1B. If metal door, feed wire connector within the
door core and out hole on inside of door
2. Attach inside rose assembly and spacer
bushing and secure with screws shown
Step #7 Installation of Outside Escutcheon
• From the outside of the door,
feed keypad wires through fire
stop plate and to the inside of
the door. Lift plate cover if needed.
• IMPORTANT – Fire stop
plate cover must lay flat
before installing the keypad
to avoid interference
