5
A7113E • 800-810-WIRE (9473) • www.sargentlock.com
Keypad 10 Line Lock
8/14/08 Copyright © 2005, 2007,2008, SARGENT Manufacturing, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.
Left Hand
Hinges Left.
Open inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”
Installation Instructions

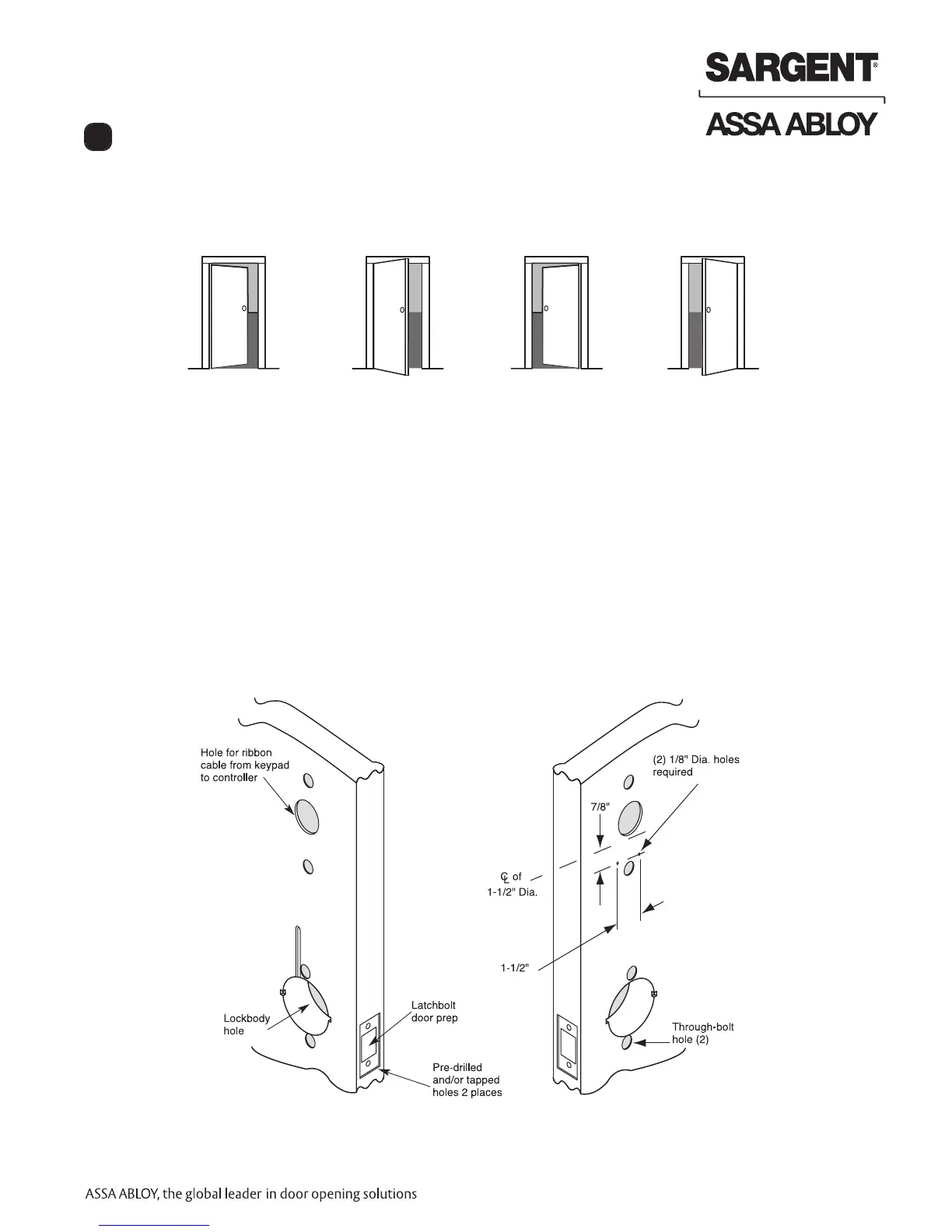

Step #2 Door Preparation
Prepare door according to appropriate template (see website www.sargentlock.com):
• For metal door template, see 4486 and 4494
• For wood door template, see A7332 (scale paper template ships with product) and 4375-1
• Prior to installation, all holes must be free of burrs, debris and sharp edges
• If doors are not properly reinforced per ANSI115.2, commercially available reinforcements
should be installed
Step #1 Verify Hand and Bevel of Door
Stand on outside/locked side of the door when determining the door hand
5
Wood Door Preparation
Left hand
hinges left
open inward
LH
Left hand
reverse bevel
hinges left
open outward
LHRB
Right hand
hinges right
open inward
RH
Right hand
reverse bevel
hinges right
open outward
RHRB
Inside of
door
Outside of
door
