Keypad 10 Line Lock
8/14/08 Copyright © 2005, 2007,2008, SARGENT Manufacturing, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

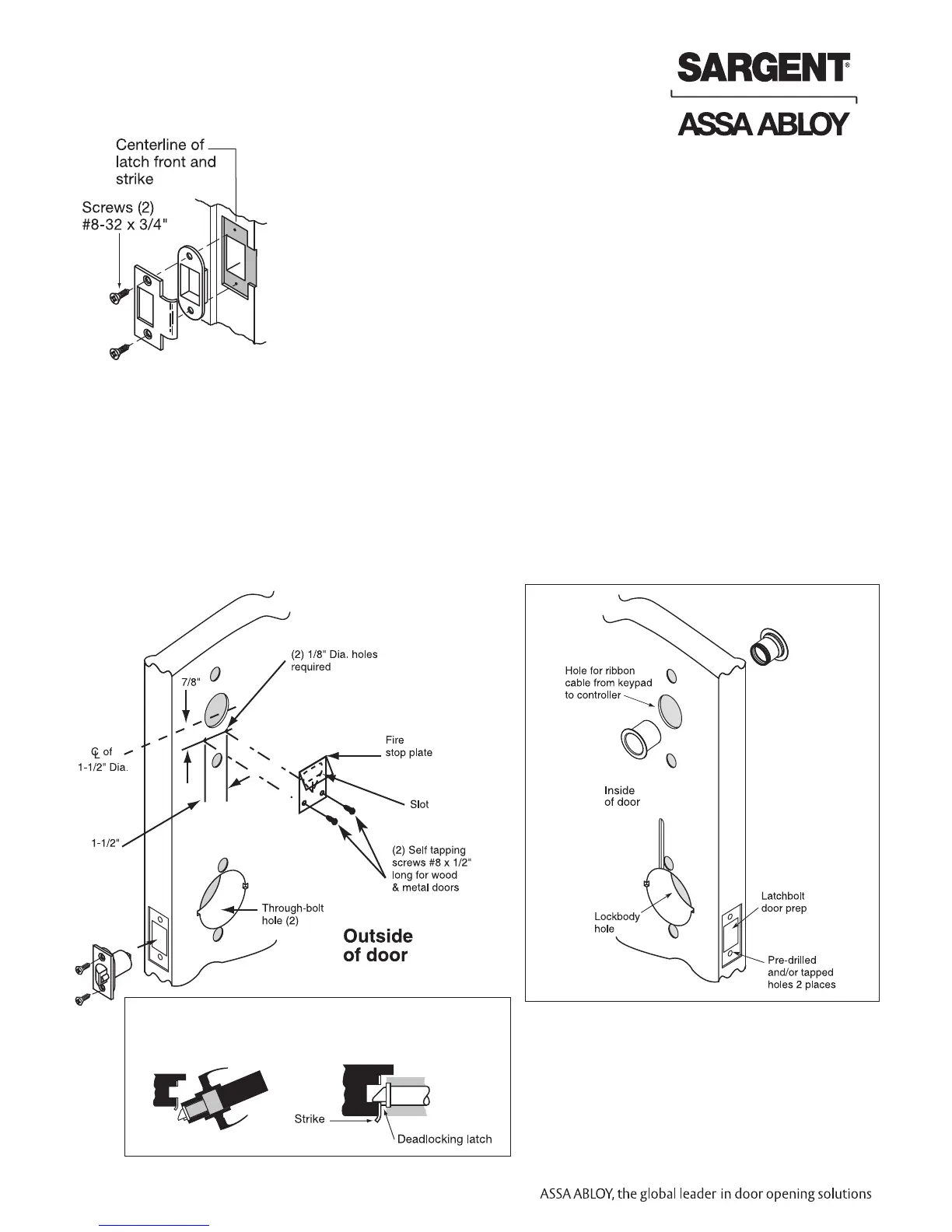

Step #3 Frame Preparation for Strike
Non Fire Rated Exterior Doors–
Install Weather Conduit (P/N 52-2847)
as shown below
Step #4 Latch and Fire Stop Plate Installation
1. Install latch with beveled bolt facing the strike
2. Attach with two screws, but DO NOT tighten completely at this time
3. Attach Fire Stop Plate with two screws
Note: Required for all Fire Rated doors
Important: Latch bevel must match door
bevel and deadlocking latch must stop on
strike when door is closed
Fire Rated Doors– Install Fire Stop Plate
(P/N 52-0033) as shown below
To Next Page
