Passport 1000 P2 Mortise Lock

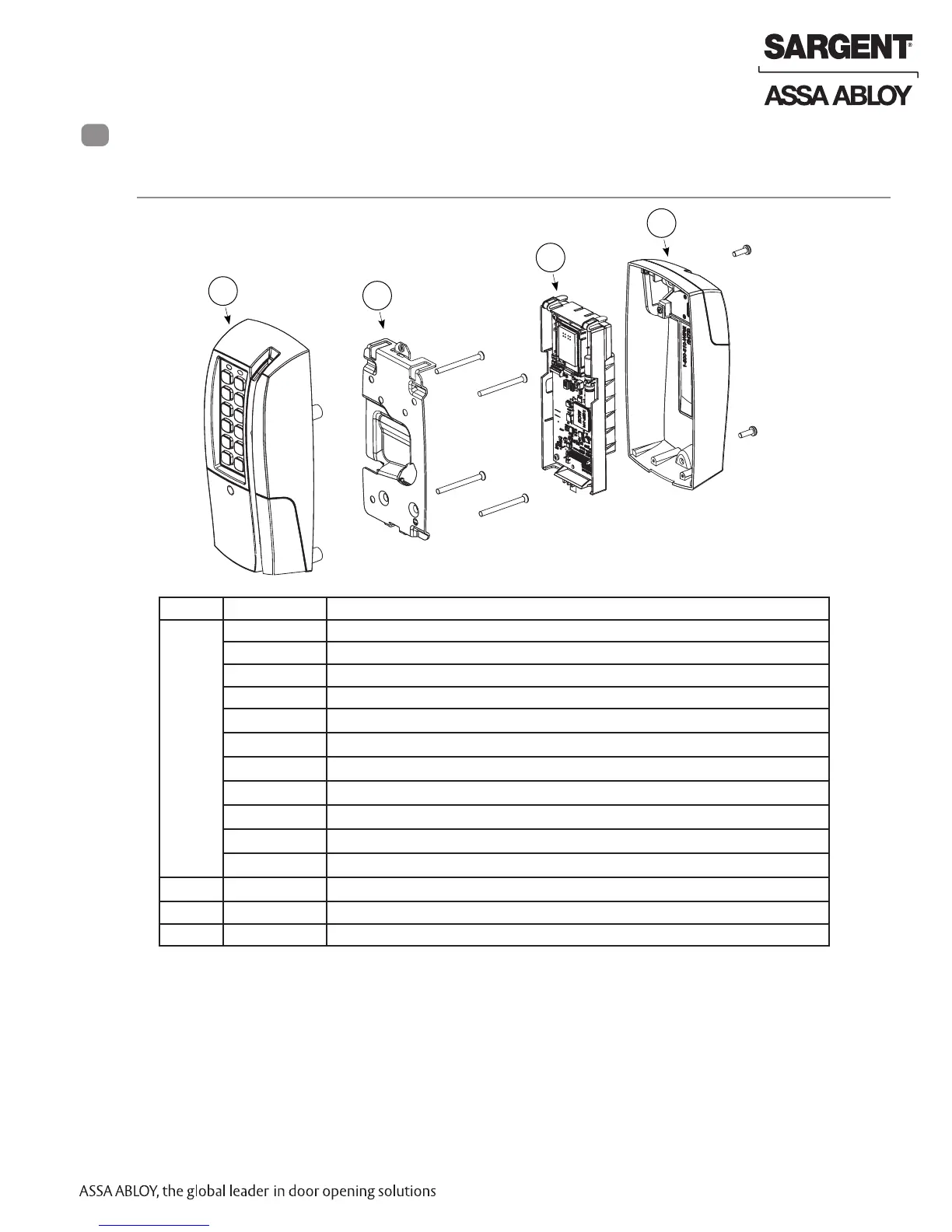

Parts Breakdown
5
P2 WiFi Lock with Magnetic Card Swipe With or Without Keypad
1
2
3
4
Tools Required:
• #2 Phillips screwdriver
• Flat head
• T20 Torx
®
driver
ITEM No. PART No. DESCRIPTION
1 52-3583-[finish] Outside Escutcheon Assemby, mag stripe
52-3582-[finish] Outside Escutcheon Assemby, mag stripe and Keypad (shown)
52-4244-[finish] Outside Escutcheon Assemby, Mag Swipe, Keypad, and HID 125 kHz Prox
52-4759-[finish] Outside Escutcheon Assemby, iCLASS, keypad, mag stripe, Prox, smart card (MIFARE, DESFIRE)
52-4777-[finish] Outside Escutcheon Assemby, iCLASS, mag stripe, Prox, smart card (MIFARE, DESFIRE)
52-4787-[finish] Outside Escutcheon Assemby, FeliCa, keypad, mag stripe, Prox
52-4788-[finish] Outside Escutcheon Assemby, FeliCa, mag stripe, Prox
52-4894-[finish]* Outside Escutcheon Assemby, Standard Reader and Keypad
52-4895-[finish]* Outside Escutcheon Assemby, Standard Reader
52-4896-[finish]* Outside Escutcheon Assemby, Felica Reader and Keypad
52-4897-[finish]* Outside Escutcheon Assemby, Felica Reader
2
52-4779 Mounting Plate Assembly
3 52-5409 WiFi Controller Assembly
4 52-4776-[finish] Inside Escutcheon Assembly with Privacy Button
*Bluetooth
®
Smart option
