04/30/16
1-800-810-WIRE • www.sargentlock.com • A8011H 7
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

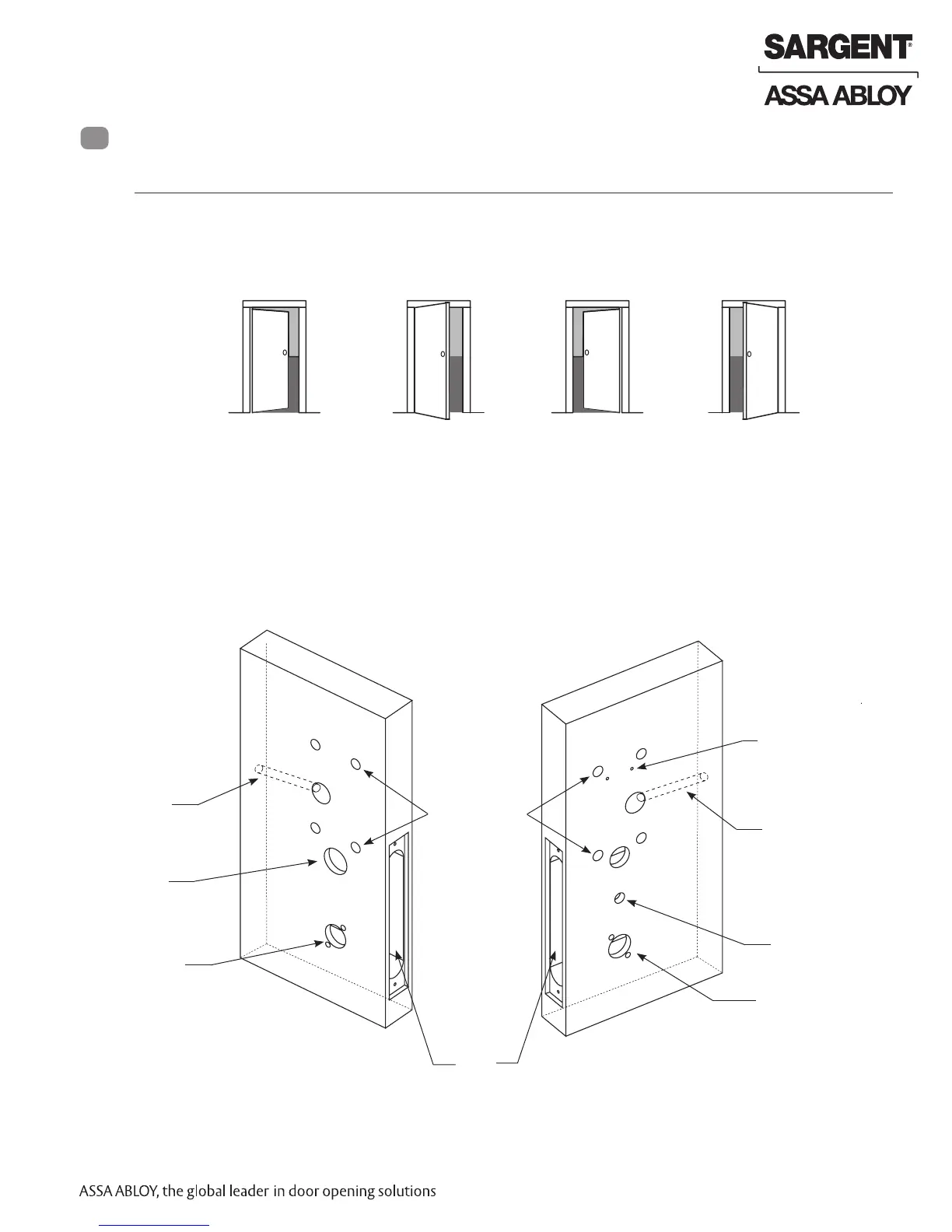

Passport 1000 P2 Mortise Lock
1 Door Preparation
Installation Instructions
6
A. Verify Hand and Bevel of Door
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward.
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”
Stand on outside of locked door when determining door hand.
Refer to the appropriate template for wood and metal doors:
A8065
4651 (door manufacturer’s)
B. Door Preparation
Outside of Door Inside of Door
Inside Mounting Plate
Mounting Holes
Thumb Turn Location
(Deadbolt Functions Only)
Lever Handle Holes
Through Bolt Holes
Cylinder Hole
Lever Handle Holes
Mortise
Pocket
(8200)
Raceway for Power
(optional)
Raceway for Power
(optional)
