Passport 1000 P2 Mortise Lock

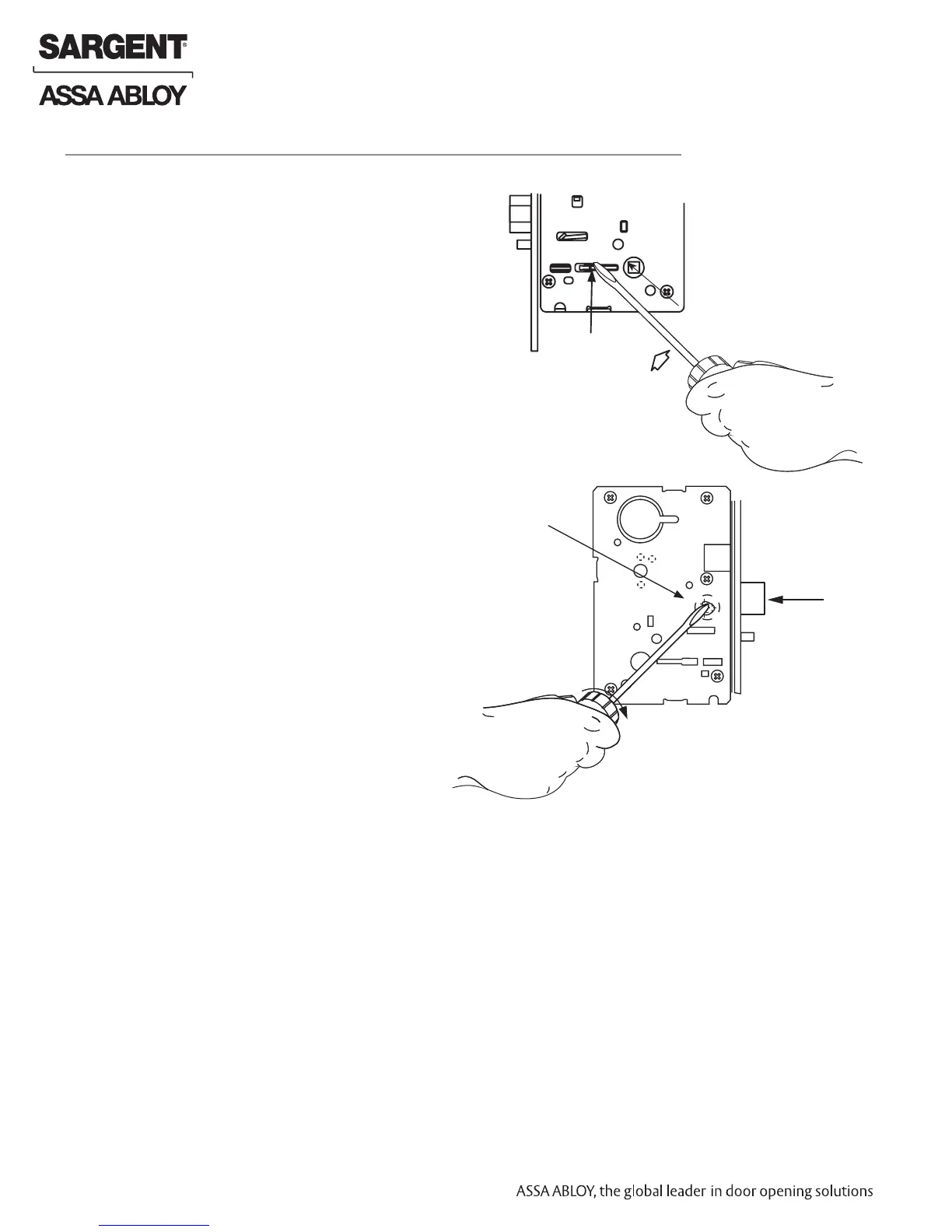

2 Prepare Lock Body
Red surface of locking piece must face the
outside/locked side of door. To rotate locking
piece (Fig. 2A):
a. Position lock body with red surface
of locking piece visible.
b. Insert blade type screwdriver into
locking piece slot to rotate locking
piece toward back of lock body.
c. Rotate the locking piece 180° until
RED surface is on opposite side.
Note: Red indicates locked side (outside).
Beveled surface of latch must face strike (Fig. 2B).
The deadlatch is self adjusting.
To change hand of latchbolt:
a. Insert screwdriver into spade (triangular)-
shaped slot.
b. Rotate screwdriver 90º to push latch out
until back of latch clears lock front; then
rotate latch 180º.
Latch will then re-enter lock body.
Note: Latch cannot be unscrewed.
Fig. 2A
Locking Guide Slot:
Red color indicates
locked side.
Push In
Right Hand
Lock Shown
1. Reverse Lock Hand
2. Reverse Latch Hand
Triangular Slot
Latchbolt
Fig. 2B
