Passport 1000 P2 Mortise Lock
3 Install Lock Body
1. Feed the wire harness into the mortise pocket and
through inside preparation hole as depicted in Figure 3.
2. Carefully push the lock body into the pocket while
lightly applying tension to the wire harness.
Note: Do not pull the lock into the pocket using the harness alone.
Ensure that the wire harness is not pinched between the lock and the mortise pocket.
3. Insert (2) #12-24 screws into the lock
body and tighten* with a screw driver.
*Do not fully tighten until cylinder and levers
are installed and properly aligned.

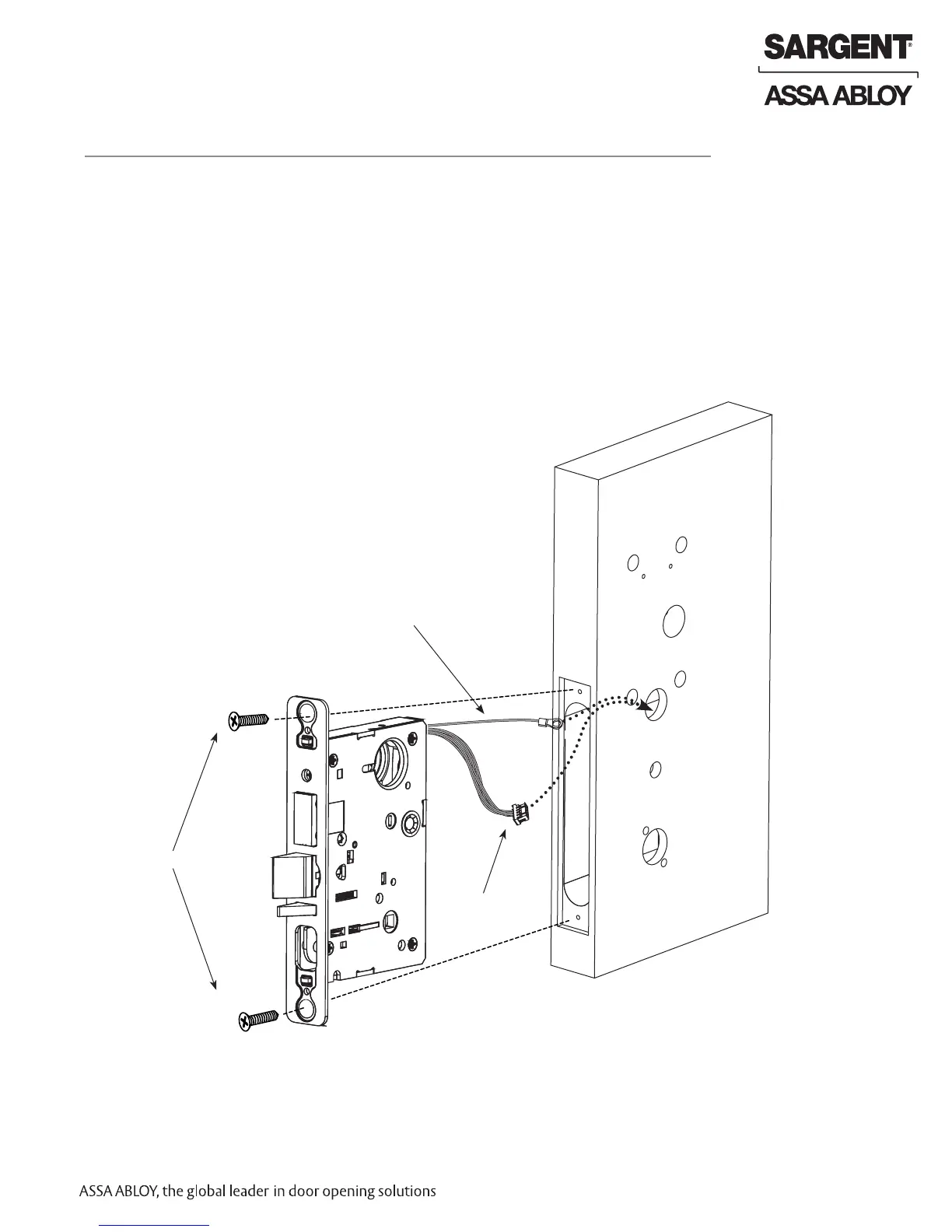

Fig. 3
(2) #12-24
screws
Inside of Door
Wire
Harness
Ground
Wire
To Next Page
