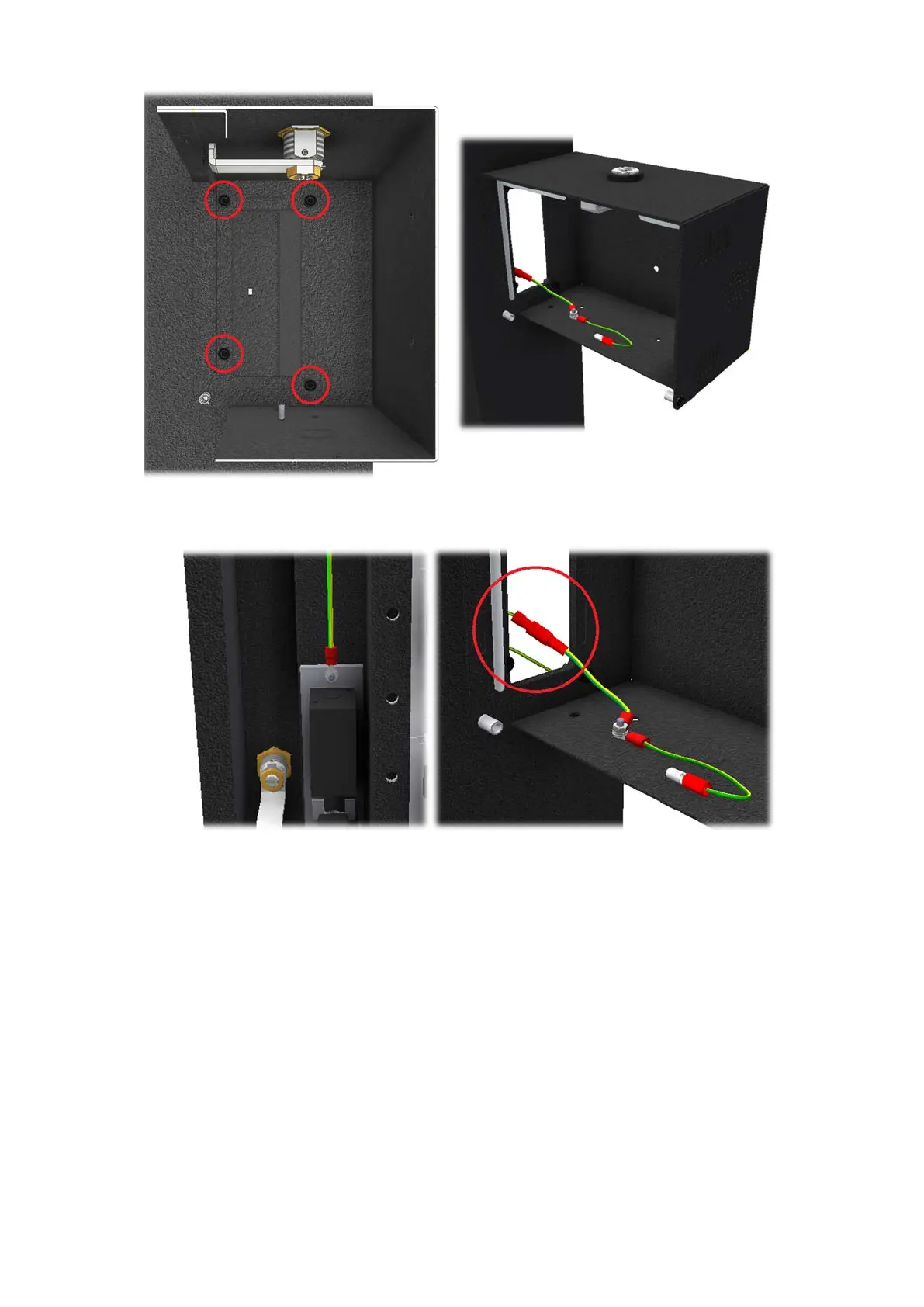

7. An earth cable connected to the fixing point on the door lock mechanism will be coiled up in the back of the cabinet.
Route this cable through the cut-out and connect to the earth cable attached to the base of the Pod.
