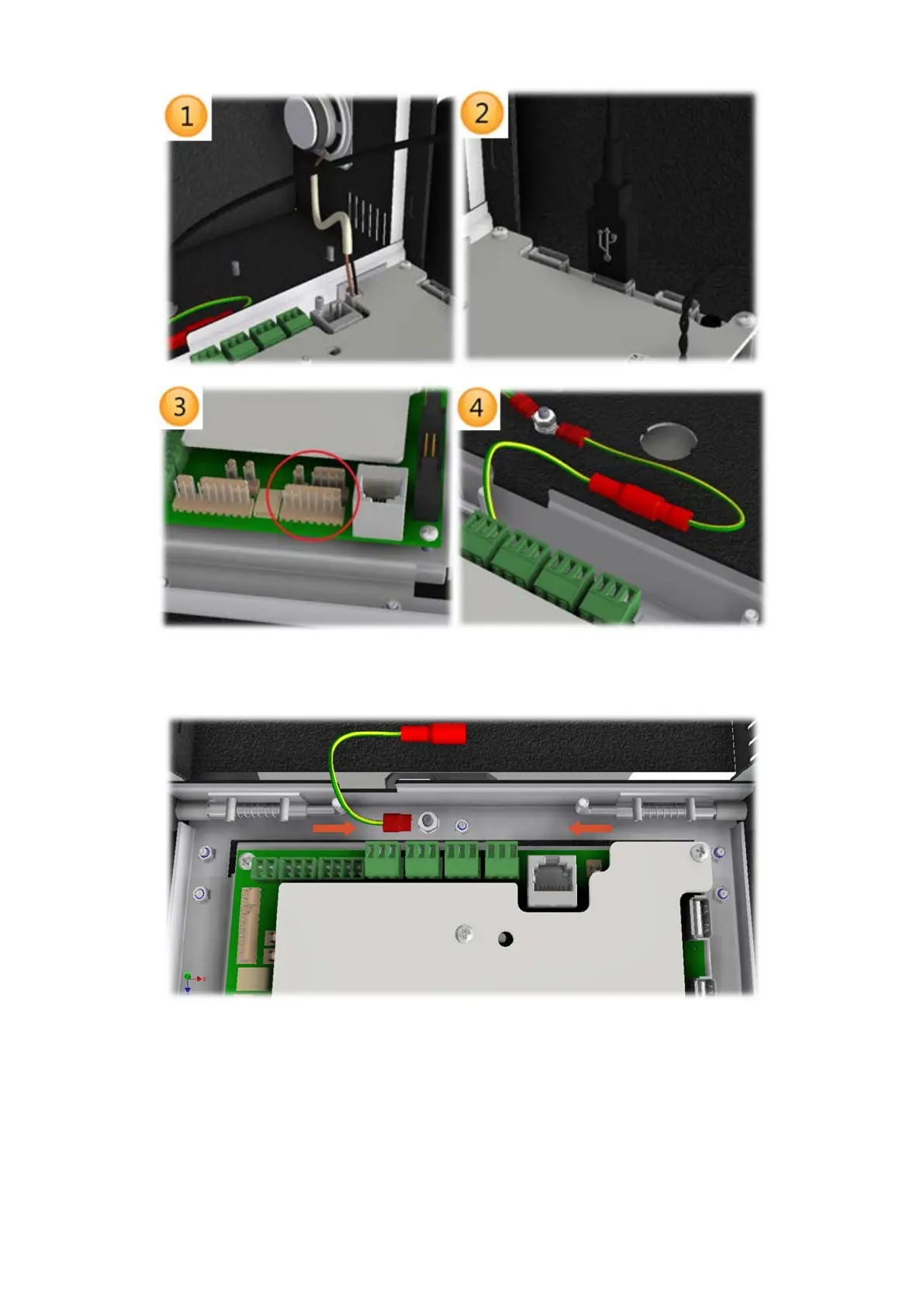

4. Once all of the relevant cables have been disconnected, the Control Panel can be removed by disengaging the 2
spring hinges.
5. Place the Control Panel to one side. This will be refitted at a later stage in the installation process.
6. The Pod can now be attached to the side of the cabinet using the supplied M5 x 15 Cap Screws.
