Associated Electrics RC8B3.2e - Page 11

11

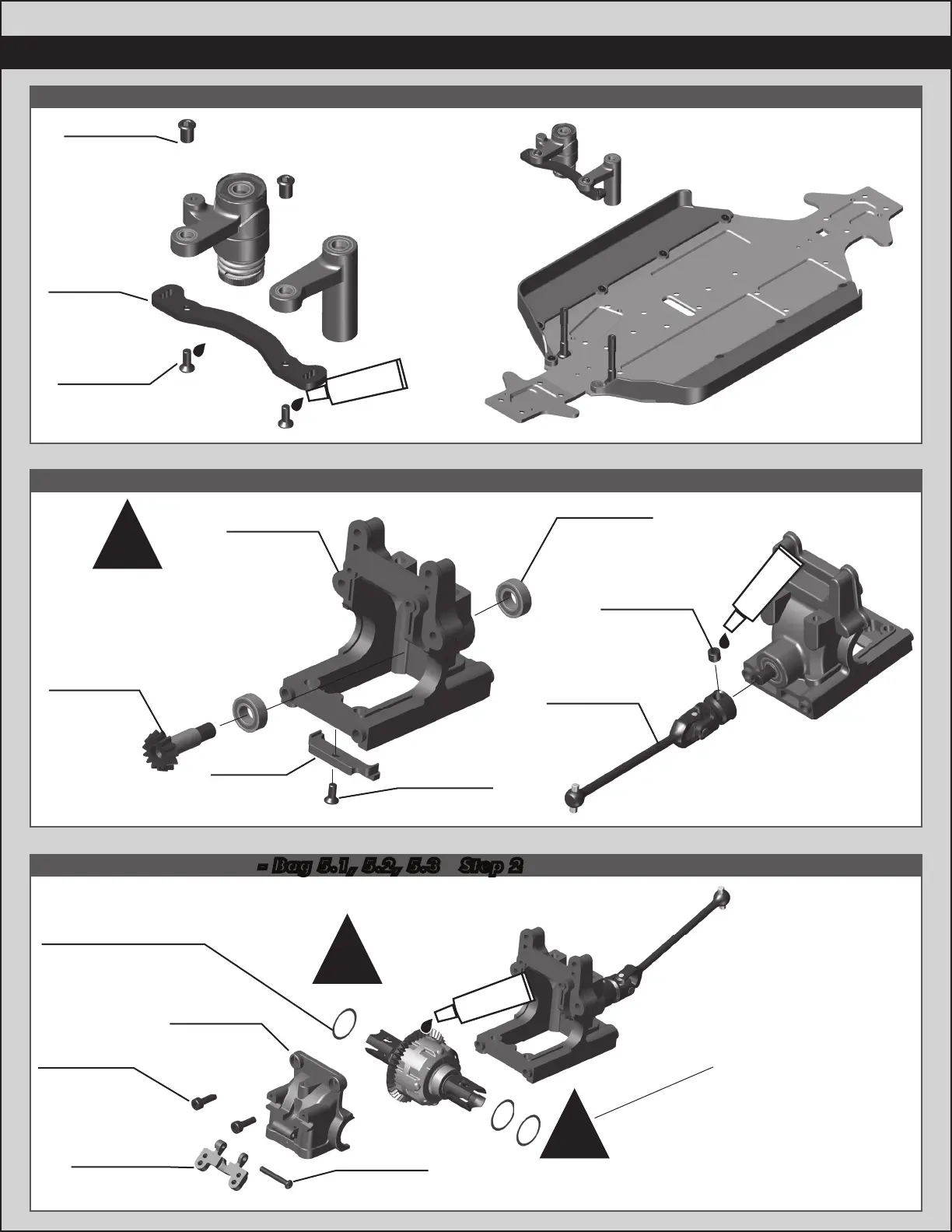

:: :: Front Gearbox Front Gearbox BuildBuild - Bag 5.1, 5.2, 5.3 - Bag 5.1, 5.2, 5.3 -- Step 1Step 1
:: :: Front Gearbox Front Gearbox BuildBuild - Bag 5.1, 5.2, 5.3 -- Step 2
89221
5x4mm
Set Screw
81020
Center
Universal,
(76mm)
81015
Gearbox,
(Inboard)
81015
Dust Cap
91561
6x12x4mm
Bearing
4675
2.5x6mm
FHCS
81009
Diff Pinion
Gear, 12T
x2x2
#1596
thread lock
25620
3x10mm
SHCS
81381
Diff Shim
13.5x15.8x0.20mm
x2x2
81015
Gearbox,
(Outboard)
STEP 1
STEP 2
81015
Anti-Roll
Bar Cap
81259
2.5x18mm
BHCS
!
!
Step 1:
Add shims on the ring gear
side to TIGHTEN gear mesh.
Subtract shims on this side
to LOOSEN gear mesh.
Step 2:
Add or subtract shims here
to finalize diff side to side
play once gear mesh is
set from Step 1.
Recommended diff side to
side clearance (gearbox
assembly) 0.10 - 0.25mm.
Notes:
0.1mm shim can be used for
fine tuning of gear mesh
NOTE:
Install the front diff
(17mm outdrives).
#6588
black grease
:: :: Steering / Chassis Steering / Chassis BuildBuild - Bag - Bag 4.1, 4.24.1, 4.2 -- Step 4Step 4
25201
3x8mm
FHCS
81088
Steering
Bellcrank
Nut
x2x2
x2x2
#1596
thread lock
81089
Steering
Rack
x3x3
Set aside front bumper,
rear chassis brace,
and rear body post
until rear gearbox build
steps.
!
(not included)
(not included)
