Associated Electrics SR10 - Slipper Build; Gearbox Install

13

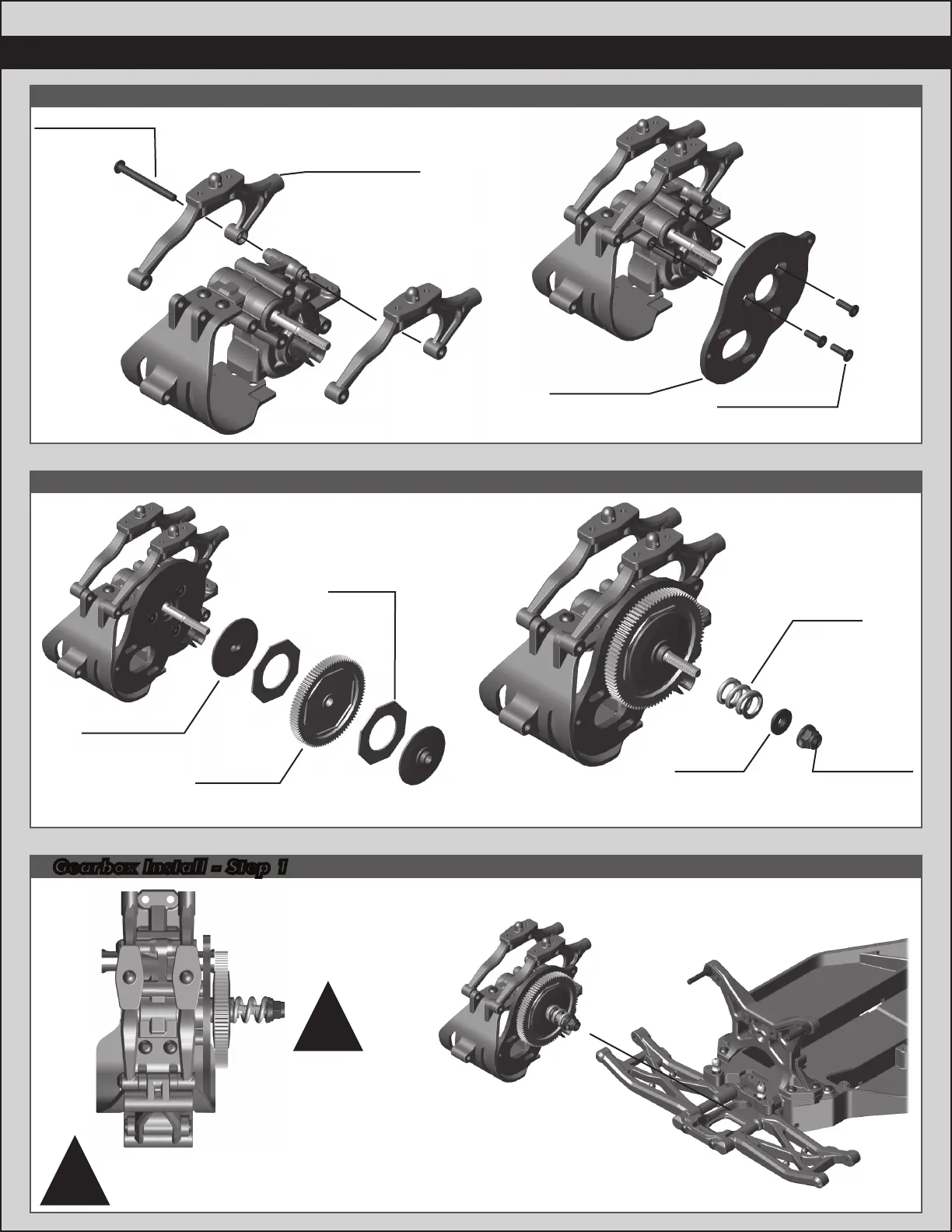

:: :: Gearbox Install - Step 1
:: :: Slipper Build - Step 1Slipper Build - Step 1
:: :: Gearbox Build - Step 3Gearbox Build - Step 3
The Locknut should
be flush with the
top shaft when
installed.
See page 23 for gear
mesh, and slipper clutch
setting instructions!
!
!
25202
M3 x 10mm
FHCS
x3x3
91428
Motor Plate,
Blue
91478
M3 x 30mm
FHCS
x2x2
71038
Body Mount
Brace
(Left & Right)
x2x2
x2x2
x2x2
9611
Slipper
Pad
7485
FT V2
Slipper Hub
9654
Spur Gear
87T, 48P
9739
Slipper
Spring
91738
M4 Locknut,
with flange
and knurl
91423
Slipper
Spring
Adapter
