Associated Electrics SR10 - Page 19

19

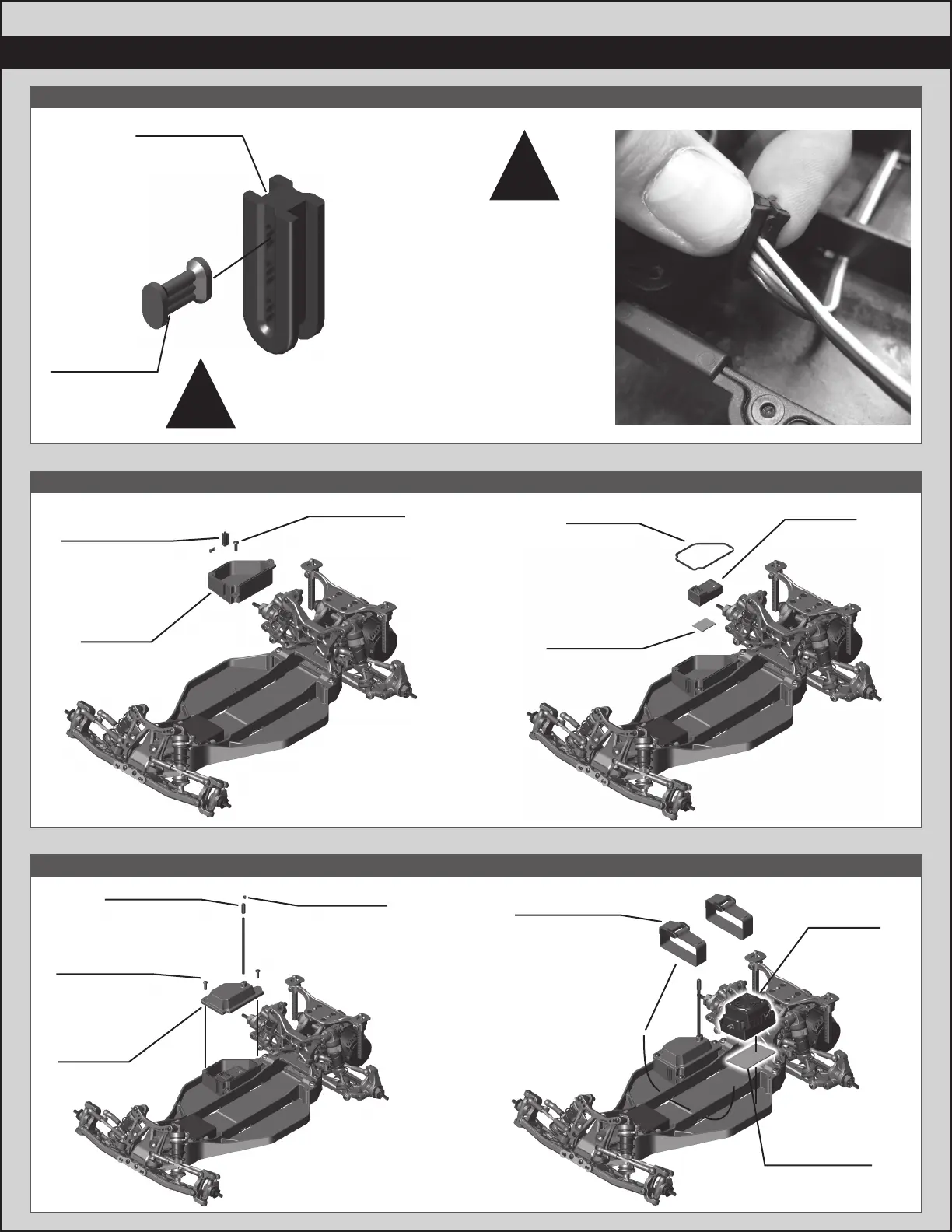

:: :: Electronics Build - Step 5Electronics Build - Step 5
:: :: Electronics Build - Step 6Electronics Build - Step 6
:: :: Electronics Build - Step 4Electronics Build - Step 4
* Receiver grommet
plug can be removed if
you use a personal
transponder!
* Install the ESC wires
and the Servo wires
into the wire grommet
before installing the
grommet into the
receiver box!
!
!
71023
Wire
Grommet
Plug
71023
Receiver Box
Grommet
71023
Receiver Box
Plug and
Grommet
71026
Receiver
Box
25211
M3 x 10mm
BHCS
Receiver
71023
Receiver
Box Seal
6727
Servo Tape
71026
Receiver
Box Lid
25211
M3 x 10mm
BHCS
x2x2
25225
M3 x 3mm
Set Screw
6338
Antenna
Tube & Cap
71050
Hook and
Loop Straps
x2x2
ESC
6727
Servo Tape
