FRONT PANEL CONTROLS

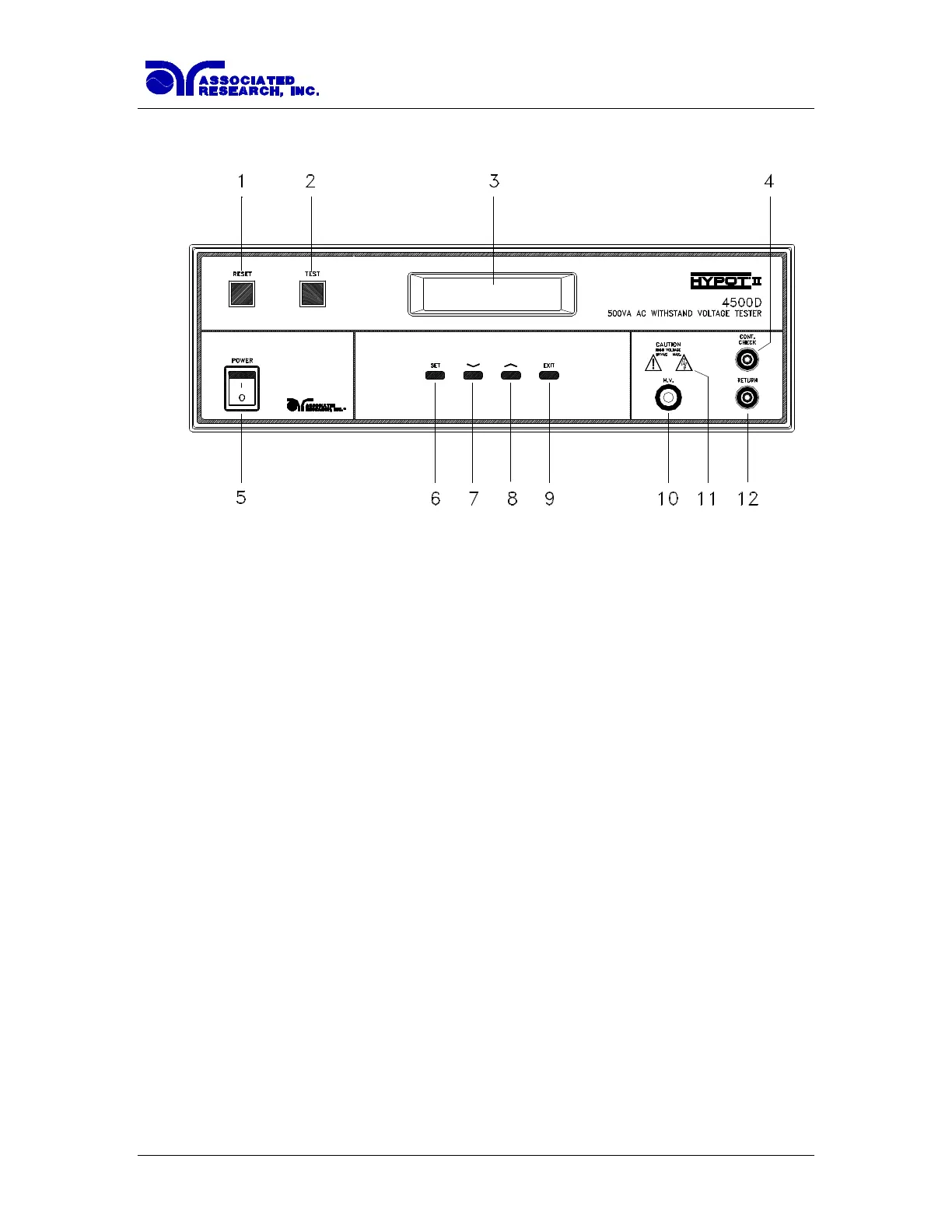

8. UP ARROW (∧): Use this key to increment numeric values in the setup mode. This
key also used to toggle ON/OFF functions. Also may be used to increase output
voltage during a test in 10 volt increments.
9. EXIT KEY: Use this key when you desire to enter the Run Mode to initiate a test.
10. HIGH VOLTAGE OUTPUT JACK: For the connection of the detachable 5 foot
(1.52 m) red high voltage test lead. The silicone rubber insulation is flexible for easy
handling and is rated at 30KVDC. The jack is recessed for safety when this lead is
not being used.
11. HIGH VOLTAGE ARROW (LED INDICATOR): This indicator flashes to warn
the operator that high voltage is present at the high voltage output terminal.
12. RETURN OUTPUT JACK: For the connection of the detachable 5 foot (1.52 m)
black return test lead. This lead is always used when performing a test.
