INSTALLATION
17

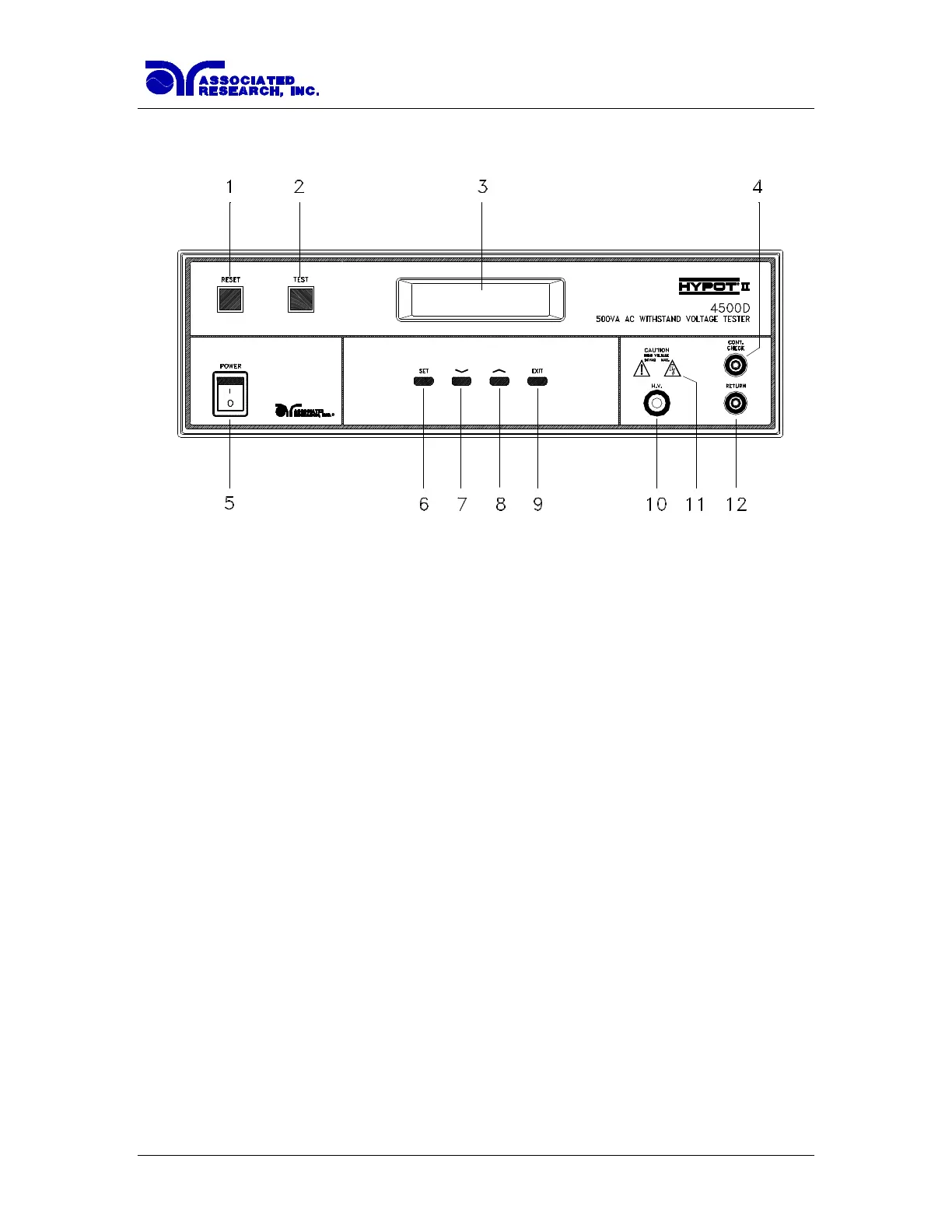

FRONT PANEL CONTROLS
1. RESET SWITCH: This is a momentary contact switch. If an out-of-range reading
is detected during a hipot test or an IR test or if continuity failure occurs, the red
failure lamp within the switch will light. To reset the system for the next test, press
and release this switch. This switch may also be used to abort a test in progress.
2. TEST SWITCH: This is a momentary contact switch. Press the green switch to
turn on the high voltage output when in test mode. The indicator lamp within the
switch will light when continuity is good, if continuity mode is enabled.
3. LCD DISPLAY: The Liquid Crystal Display is the main readout for the operator
and programmer of the test settings and test results.
4. CONTINUITY CHECK OUTPUT JACK: For the connection of the detachable 5
foot (1.52 m) black return test lead or three prong receptacle adapter box. This jack
is always used when performing a continuity test. Please refer to page 35 for details
on connecting the adapter box between Hypot II and the device under test.
5. POWER SWITCH: Rocker-style switch with international ON ( | ) and OFF (0)
markings.
6. SET KEY: Use this key to advance forward through the setup menus.
7. DOWN ARROW (): Use this key to decrement numeric values in the setup mode.
This key also used to toggle ON/OFF functions. Also may be used to decrease output
voltage during a test in 10 volt increments.
