Weight

20.05 lbs. max (9.09 kg)

(With 2 High Voltage Modules)

15.45 lbs. max (7.01

kg)

(With 2 High Voltage

Modules)

*Cabinets can be configured with one or two 8 channel modules as follows; 1

High Voltage module, 1 Ground Bond Module, 2 High Voltage Modules, 2

Ground Bond Modules, or 1 High Voltage + 1 Ground Bond Module.

3.2. Instrument Controls

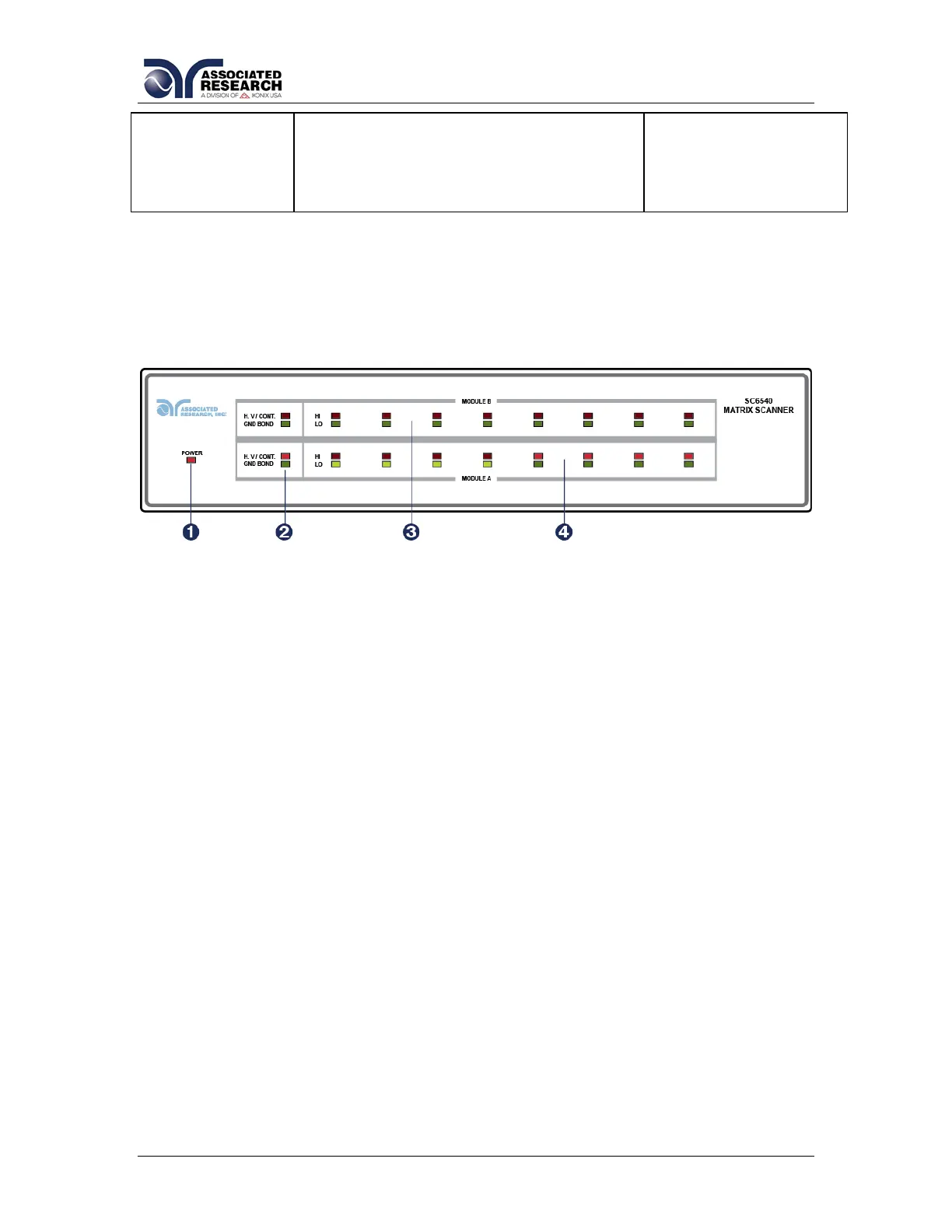

3.2.1. Front Panel Controls

1. POWER INDICATOR: Indicates the power has been turned ON. For a

SC6540 Main, this lights when the power switch on the rear panel of the unit

is turned ON. For a SC6540 Secondary, this lights when the power switch on

the host instrument is turned ON.

2. MODULE TYPE INDICATOR: These LED’s indicate the type of module that

is installed for the corresponding module slot. If the red LED lights, it

indicates that the installed module is a High Voltage / Continuity module. If

the green LED lights, it indicates that the installed module is a Ground Bond

module.

3. MODULE B CHANNEL STATUS INDICATORS: These LED’s indicate the

status of each individual channel on Module B. If the red LED lights it

indicates a High Voltage/Continuity Current/Ground Bond Channel. If the

green LED lights it indicates a Return channel.

4. MODULE A CHANNEL STATUS INDICATORS: These LED’s indicate the

status of each individual channel on Module A. If the red LED lights it

indicates a High Voltage/Continuity Current/Ground Bond Channel. If the

green LED lights it indicates a Return channel.
