OPTIMA / MAYA SERIES · HEAT PUMP AIR/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
The operating conditions will influence the performance of the equipment and the power data
provided in the data sheet may vary, if these placement recommendations do not occur. It is
extremely important that the minimum water flow indicated in the technical sheet is
guaranteed. If this flow is reduced, the compressor dew point is higher, and the energy
consumption is higher.

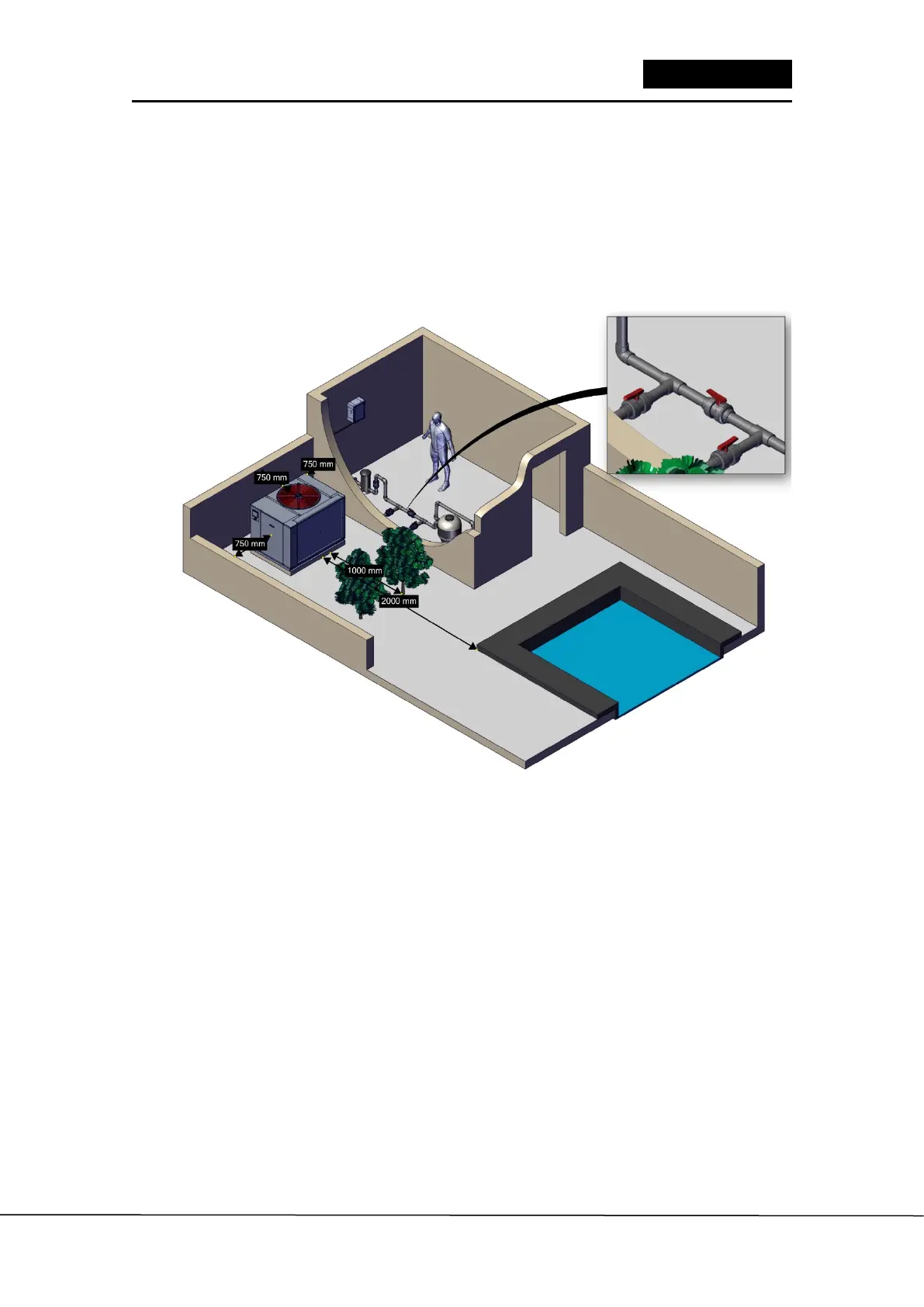

Example of installation of OPTIMA equipment with Axial fan for outdoor installation only:
V1-V2-V3: By-pass valves. (Required for all models)
