Astralpool OPTIMA Series - Page 53

OPTIMA / MAYA SERIES · HEAT PUMP AIR/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 53
ENGLISH

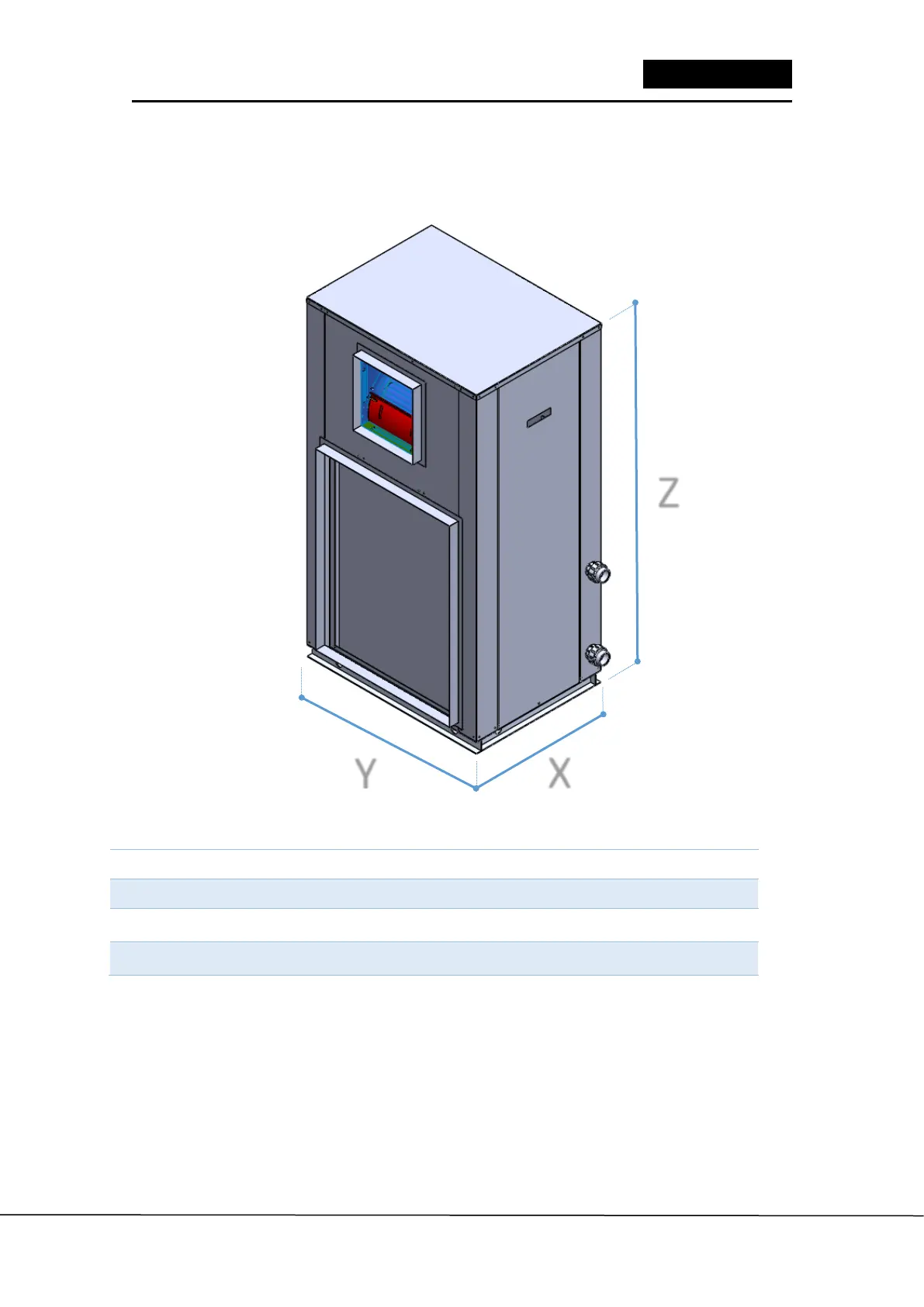

IMAGEN 4: MAYA REVERSIBLE DIMENSIONS
CODES
X
Y
Z
MAYA REVERSIBLE
[mm] [mm] [mm]
15 kW 700+50 750+100 1300
25 kW 700+50 950+100 1736
*Diseño formado de 1 módulo.
Z
Y
X
