3.3.2 Dimensions and distances

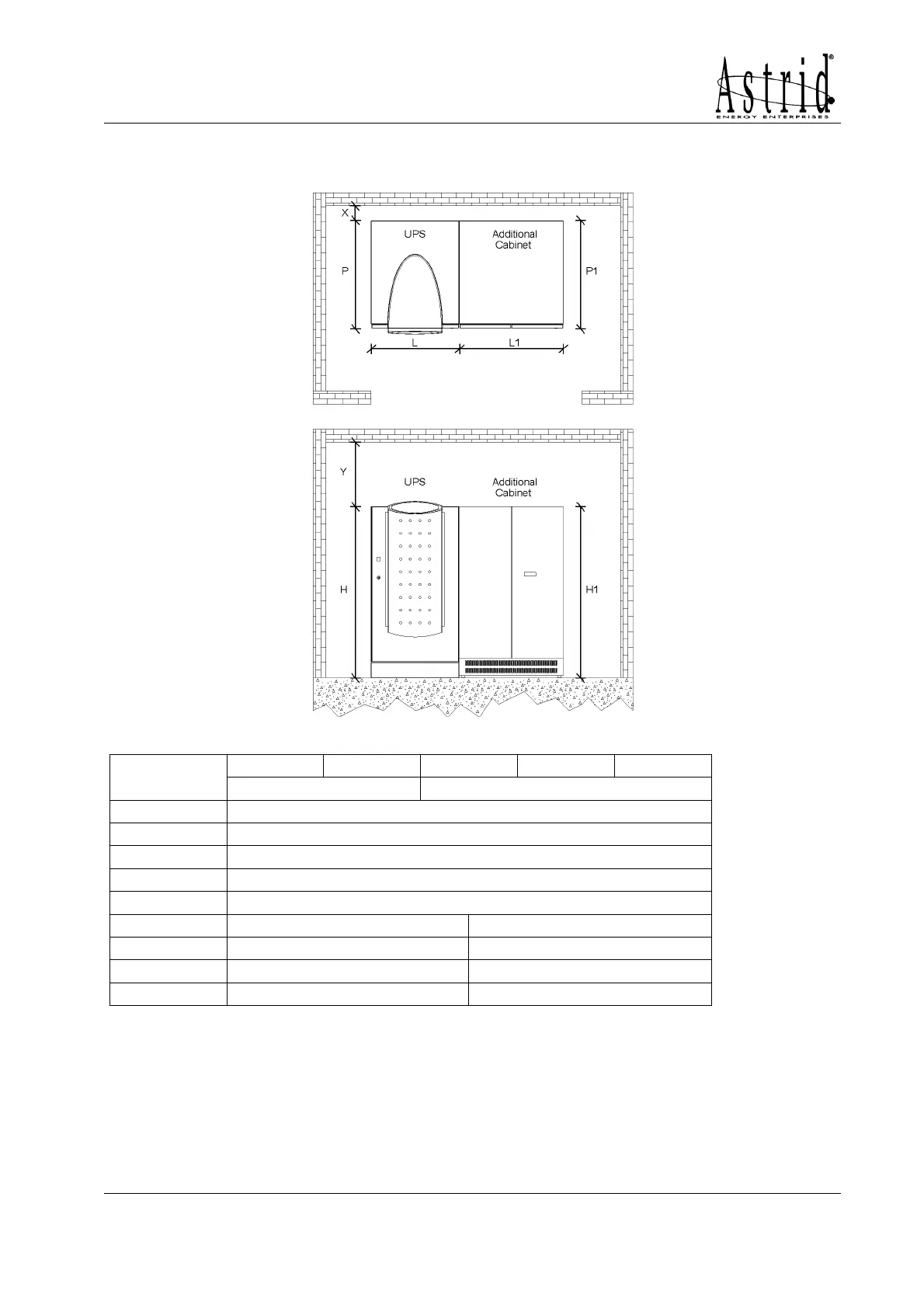

Picture 10 - Dimensions and distances from the walls
20 30 40 60 80
UPS (kVA)
1Ph e 3Ph 3Ph
L – mm 690
P – mm 865
H – mm 1345
X (min.) – mm 50
Y (min.) – mm 500
ADD. CABINET AS028 AS029
L1 – mm 620 815
P1 – mm 645 820
H1 – mm 1150 1340
The additional cabinets AS028 and AS029 are cabinets for external battery.
