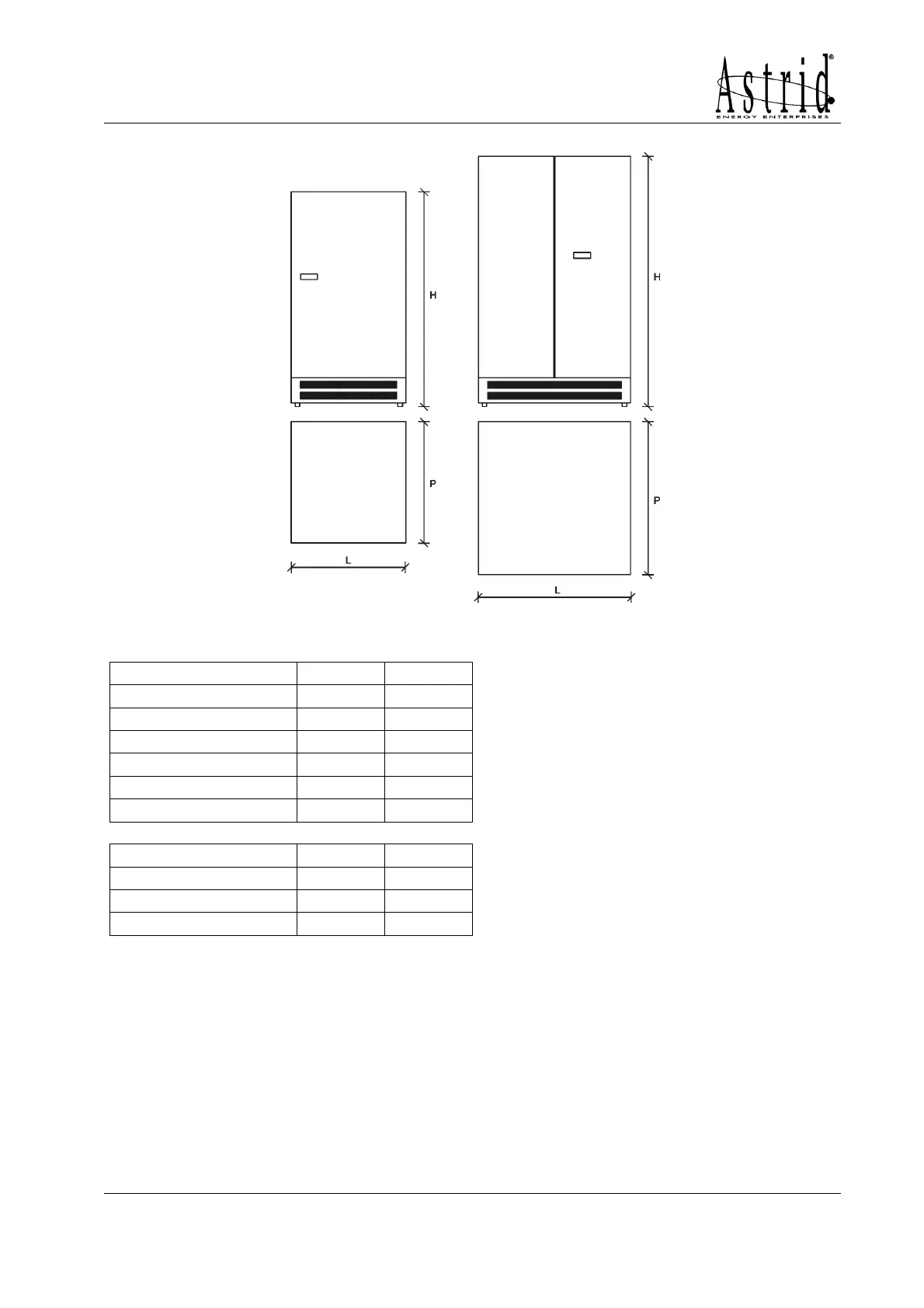

Picture 17 - Dimensions of the external battery cabinets
CABINET AS028 AS029
L – mm 620 815
P – mm 645 820
H – mm 1150 1340
L1 – mm 580 775
P1 – mm 600 775
L2 – mm 25 25
CABINET AS028 AS029
Weight w/o battery – kg 100 160
Weight with battery – kg 590 900
Static load – kg/m
2
1690 1500
