Ups general description & installation
OM226130 Rev. A 15
3Ph UPS (kVA) 20 30 40 60 80
Rectifier 3x50 3x80 3x100 3x150 3x150
Input fuses (A)
Bypass - - 3x150 3x200 3x200
Rectifier 4x10 4x25 3x35 3x50 3x70
Input cables (mm
2
)
Bypass - - 4x35 4x50 4x70
Output cables (mm
2
)
4x10 4x25 4x35 4x50 4x70
Battery cables (mm
2
)
2x16 2x25 2x50 2x50 2x70

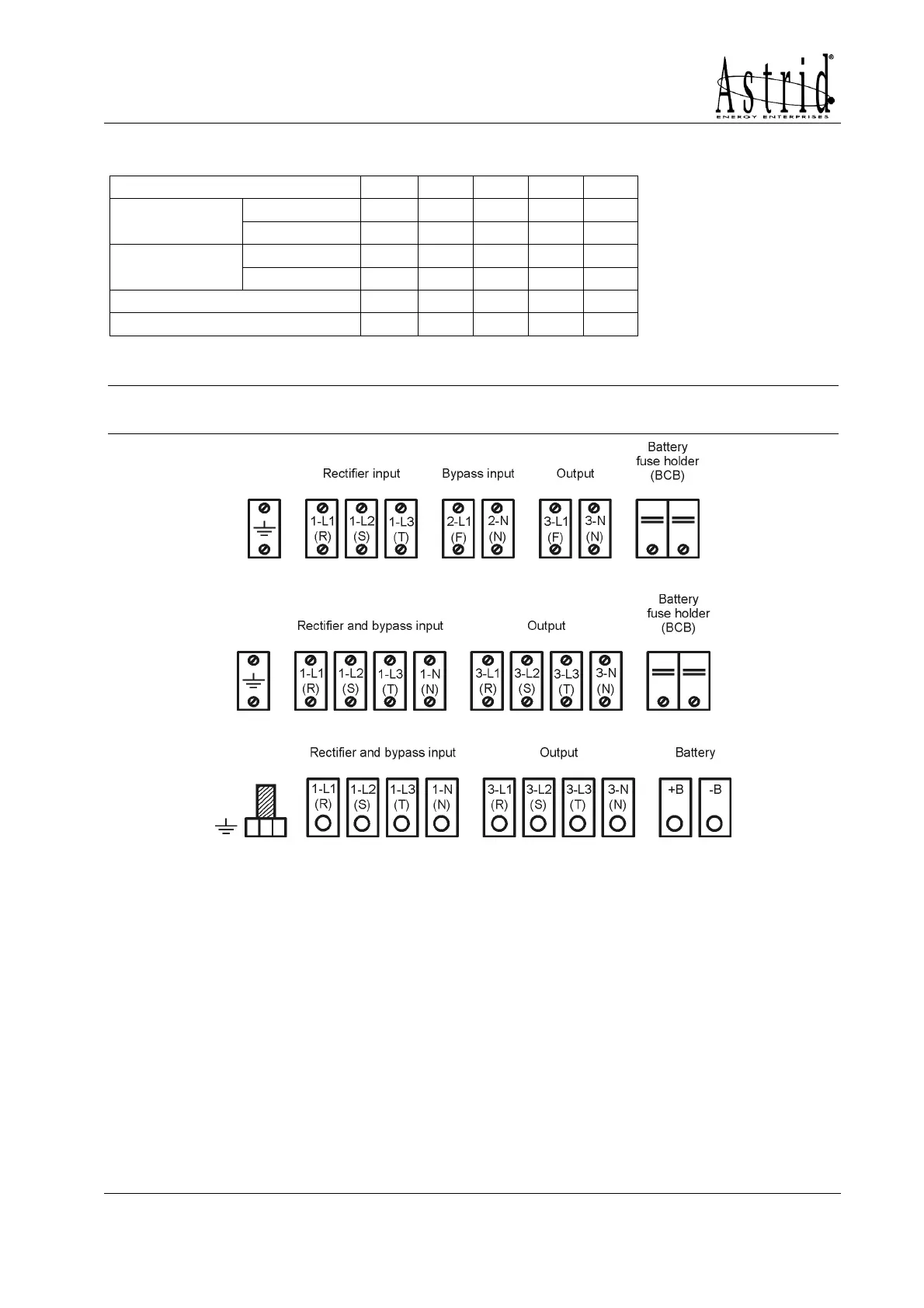

3.4.1 Terminal board
NOTE
For UPS ≤ 30kVA the battery fuse holder is connected to internal battery
Picture 11 - Terminal board UPS 20kVA÷30kVA 1Ph
Picture 12 - Terminal board UPS 20kVA÷30kVA 3Ph
Picture 13 - Terminal board UPS 40kVA÷80kVA 3Ph
