Ups general description & installation
OM226130 Rev. A 17

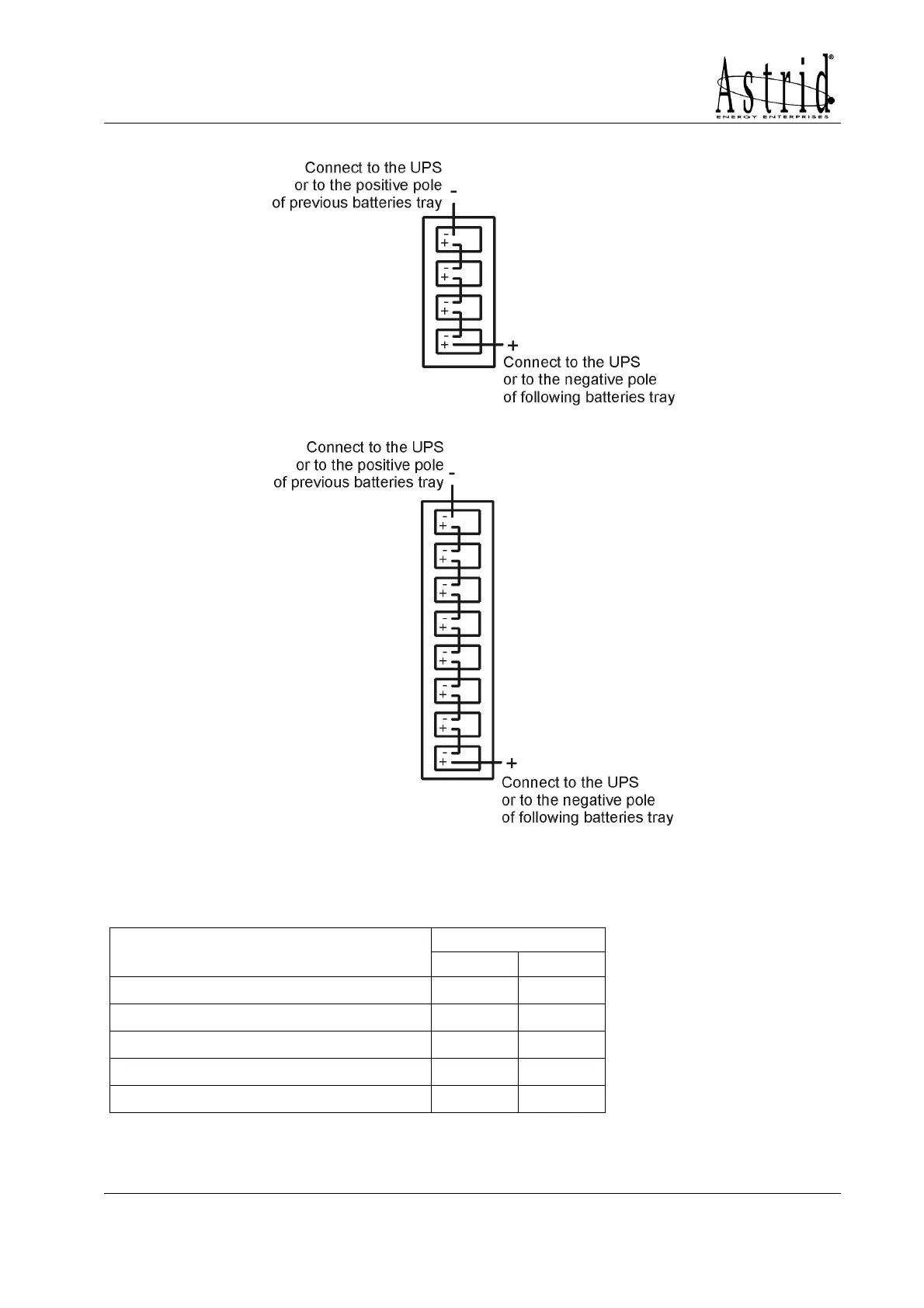

Picture 14 - Wiring 4 batteries for tray
Picture 15 - Wiring 8 batteries for tray
The configurations and the quantity of battery traies mounted on the UPSs are shown
in the following table:
BATTERY TRAIES
UPS 1Ph e 3Ph
QUANTITY TYPE
20 kVA – 5 minutes autonomy 04 Pict. 15
30 kVA – 5 minutes autonomy 08 Pict. 15
20 kVA – 10 minutes autonomy 08 Pict. 15
30 kVA – 10 minutes autonomy 08 Pict. 14
20 kVA – 15 minutes autonomy 08 Pict. 14
