ASUNA 4100 - Step 4: Connecting Pedals and Holder

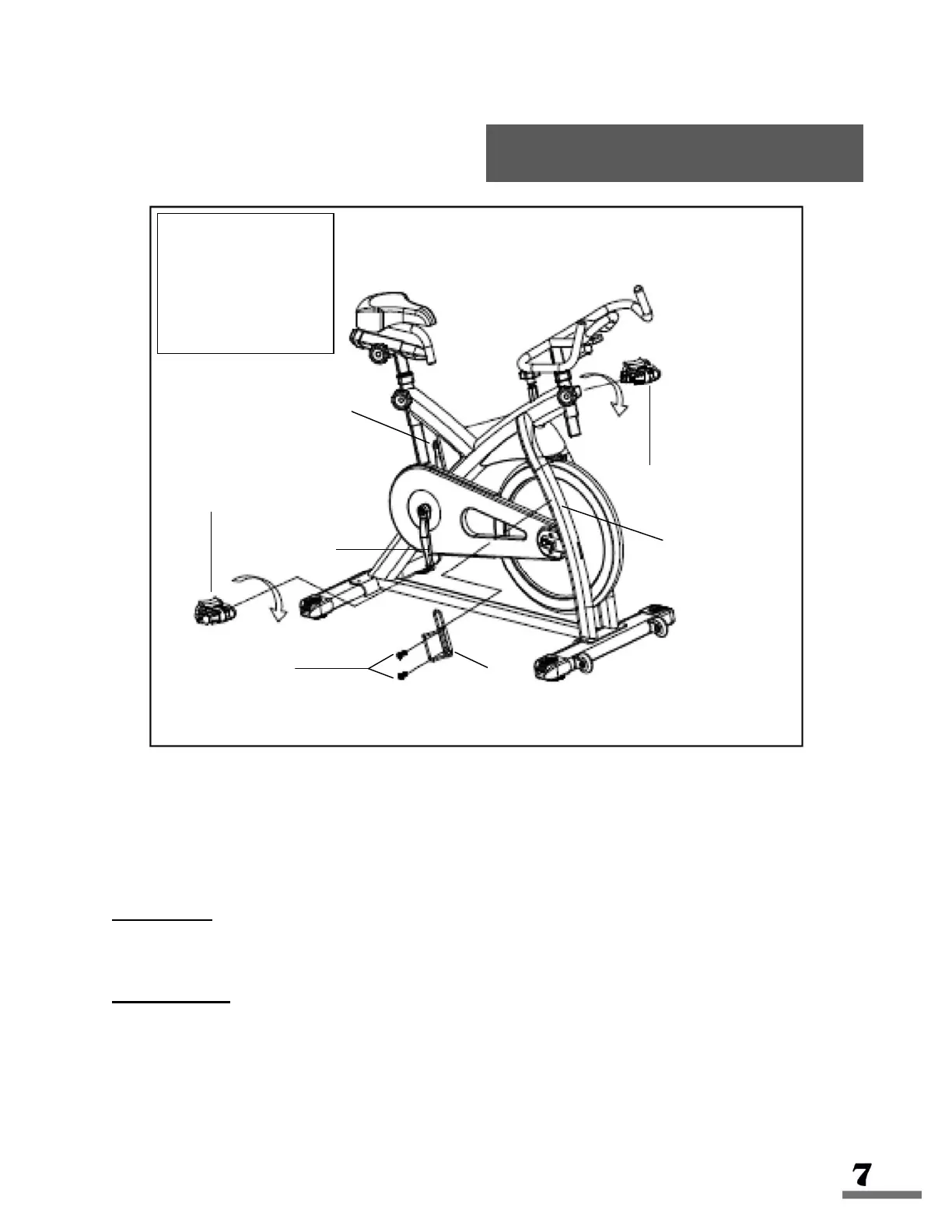

Connect Pedals L/R (11) onto the Left and Right Crank Arms (20 and 21). (Before
you begin, immobilize the crank arms by turning the tension control knob all the way to
the right).
NOTE: Pedals L/R (11) are marked, L for the (left pedal) and R for the (right pedal).
Left Pedal: align the left pedal, Pedal L (11) with the Left Crank Arm (20) at 90
degrees. Gently insert the pedal into the crank arm, turn the pedal counter-clockwise
as tightly as you can with your hand. Tighten and secure with (15mm) spanner wrench.
Right Pedal: align the right pedal, Pedal R (11) with the Right Crank Arm (21) at 90
degrees. Gently insert the pedal into the crank arm, turn the pedal clockwise as tightly
as you can with your hand. Tighten and secure with (15mm) spanner wrench.
Attach the Bottle Holder (26) to the Main Frame (49) using 2 Bottle Holder Bolts (25).
Tighten with spanner wrench.
Assembly Instruction
S
STEP: 4
11/L
11/R
20
21
25
26
49
IMPORTANT:
Read instructions
carefully, failure to
do so may cause
permanent damage
to your
bike.
