DSL-N10 Chapter 2: Setting up the hardware
Setting up the wireless ADSL router
The ASUS wireless ADSL router meets various working scenarios with proper
congurations. You may need to change the wireless router’s default settings so as
to meet the requirements in your wireless environment.
Notes: We recommend that you use wired connection for initial conguration to avoid possible
setup problems due to wireless uncertainty.
To set up the wireless ADSL router:

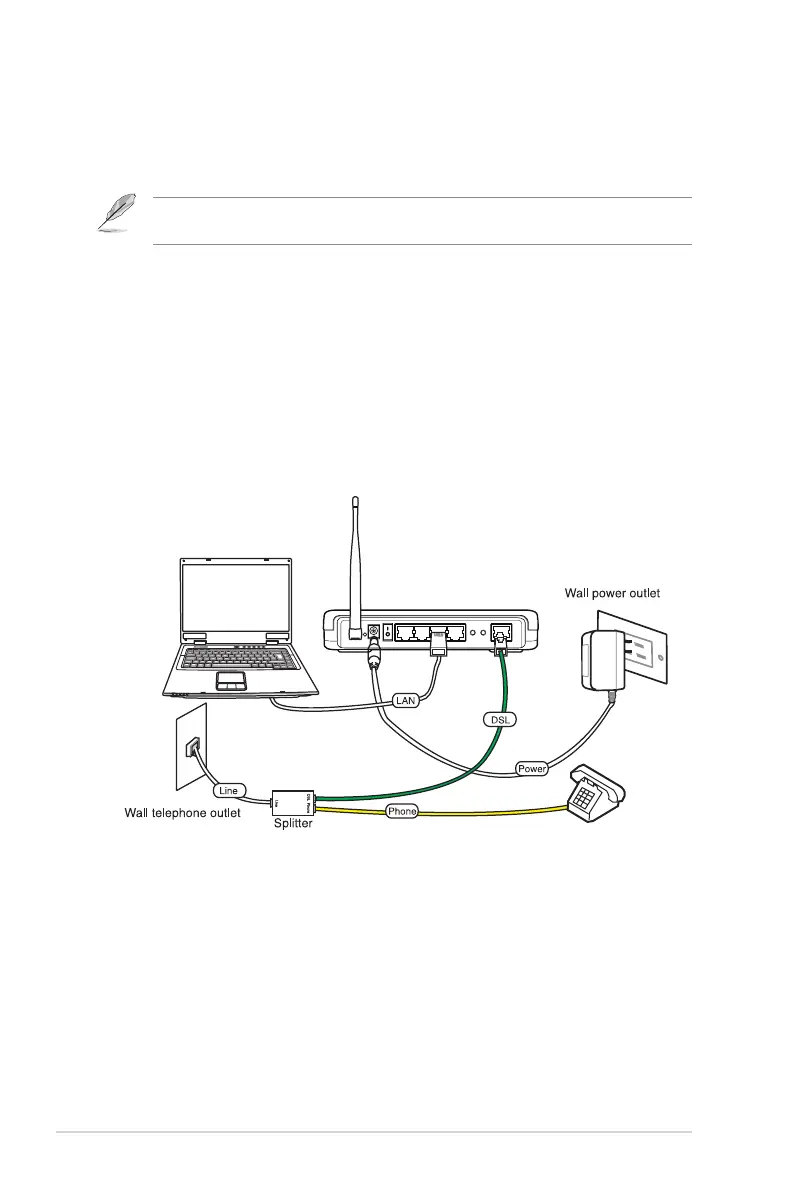

1. Connect your devices.
To set up via wired connection
a. Insert the splitter's line connector to the phone outlet and connect your
phone into the phone port (A).
b. Connect your wireless router's ADSL port to the splitter’s DSL port (B).
c. Using the bundled RJ-45 LAN cable, connect your computer to the wireless
router's LAN port (C).
ASUS Wireless ADSL Router
ANT Reset Power
Power LAN4 LAN3 LA N2 LAN1
WPS
Wireless
On/Off
ADSL
ADSL
(A)
(B)
(C)

Asus DSL-N10 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-95dBm@1Mbps, -92dBm@11Mbps, -75dBm@54Mbps, -72dBm@72.2Mbps, -68dBm@150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4 GHz
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Dimensions (WxDxH)	164 x 116.5 x 31 mm
Power requirements	DC 12 V/1 A
Channels quantity	13 channels
DSL specification	ADSL 2/2+
DHCP client	-
Transmit power	17 dBmW
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	Radius
Flash memory	1 MB
Certification	CE, FCC, A-Tick, IC, CT
Internal memory	2 MB
Power consumption (typical)	12 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Product color	Black
LED indicators	DSL, LAN, Power, Status, WLAN

Weight and Dimensions

Weight	255 g
